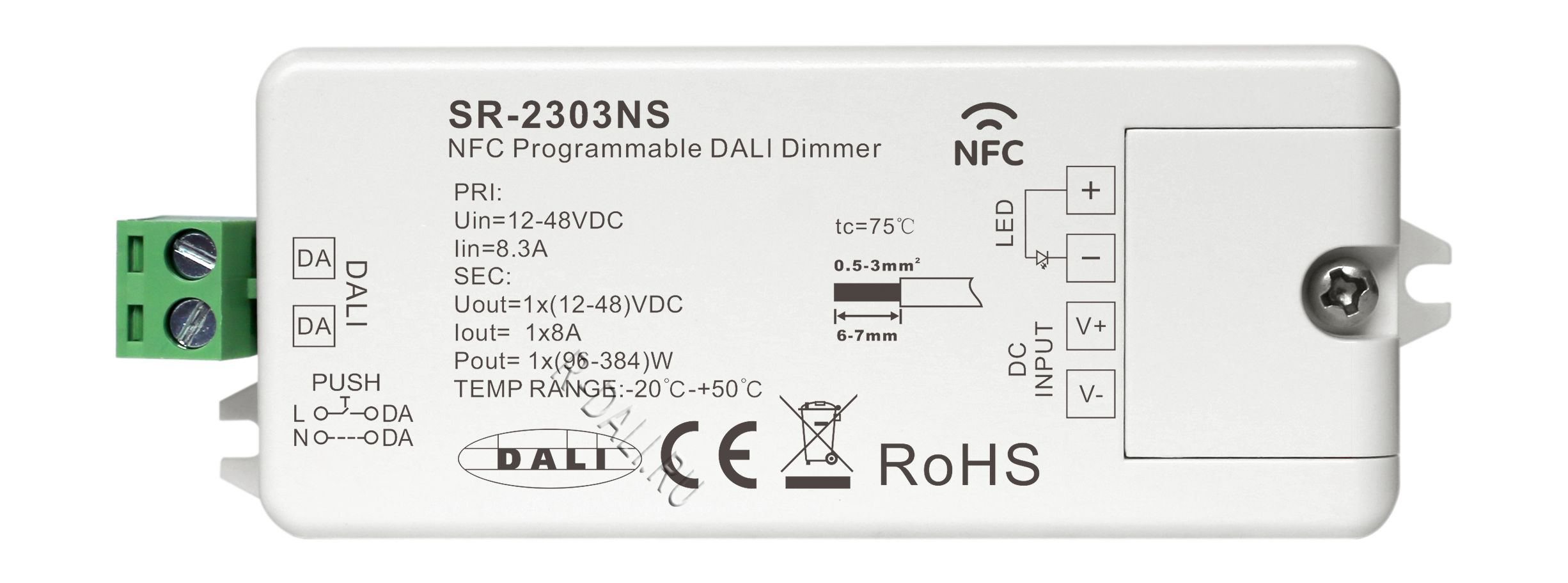

NFC Programmable DALI DALI-2 Dimmer 1CH SR-2303NS
Копировать ссылку на товар
Ссылка успешно скопирована!
Артикул: SR-2303NS
Наличие: под заказ
ЦЕНА ПО ЗАПРОСУ
The NFC Programmable DALI Dimmer (1 channel) is a versatile and efficient solution for controlling lighting systems with a constant voltage input of 12-48VDC. Featuring a 1x8A output current, this dimmer is designed for seamless integration into existing DALI systems. It complies with IEC 62386-101:2014, IEC 62386-102:2014, and IEC 62386-207 Ed2 standards, ensuring reliable performance and compatibility. Equipped with a built-in DALI-2 interface and DALI DT6 device, it can easily be paired with any DALI system on the market. The dimmer offers 1 DALI address input and 1 channel PWM output for efficient dimming control. Additionally, multiple parameters can be customized via an NFC tool, providing flexibility in setting up and adjusting the device to meet specific needs.
Features:
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• 1 DALI address input, 1 channel PWM output
• Multiple parameters settable via NFC tool
Specifications
| Part No. | Input Voltage | Output Current | Output Power | Size(LxWxH) |
|---|---|---|---|---|
| SR-2303NS | 12-48VDC | 1x8A@12-36VDC 1x4A@48VDC | 1x(96-288)W@12-36VDC 1x192W@48VDC | 95x37x20mm |
Product Dimension
Wiring Diagram
SR-2303NS User Manual
