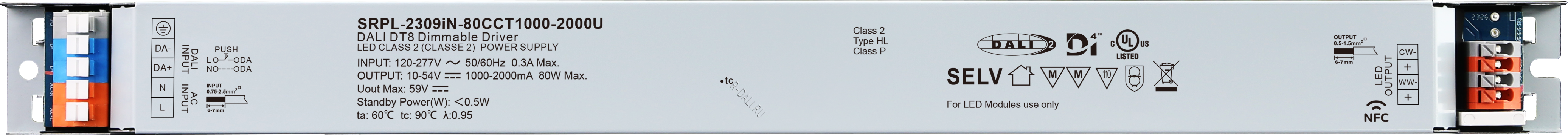

120-277VAC 80W DALI D4i DT8 NFC LED Driver (Constant Current) SRPL-2309iN-80CCT1000-2000U

SRPL-2309iN-80CCT1000-2000U is a D4i & DALI-2 certified linear metal casing 80W dimmable LED driver. It is designed with 2 channels constant current output with adjustable current from 1000mA to 2000mA, which enables it to be suitable for LED lights with different current. It is designed with 120-277VAC input. Power factor of the driver can be over 0.96 and efficiency is higher than 82%. It enables smooth and deep dimming to 0.01% without flickering and buzzing noise. One DALI address for two channels output can be manually assigned via "SR NFC Tool" APP or automatically assigned by DALI masters. Complying with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209, this DALI driver is compatible with DALI-2 certified application controllers and control devices.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver with linear metal housing. Max. output power 80W
• 1000-2000mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• Class Ⅱ power supply, isolated design
• High power factor and efficiency
• To switch and dim LED lighting luminaries, enable tunable white control
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT8 commands
• DALI-250/251/252/253 Enabled, DALI data inside.
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty

 Specifications

Product Dimension

Wiring Diagram

Материалы для скачивания

• SRPL-2309iN-80CCT1000-2000U User Manual
