Sunricher, Дравер DALI (CV), 150W 2 Канала, 48VDC DALI DT8 LED Constant Voltage Driver SRP-2309-48-150LCVT
Артикул: SRP-2309-48-150LCVT
Наличие на складах:
| 1) Склад на Бумажном: | 0 шт. |
| 2) Склад удалённый: | 0 шт. |
Наличие: под заказ
SRP-2309-48-150LCVTis a DALI-2 certified 100W LED driver with 2 parallel connected channels and 48VDC constant voltage output. It is designed with 220-240VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.UL and ENEC certification ensures high safety and reliability performance of the driver to be used worldwide.
Key Features
- DALI-2 certified 150w LED driver
- UL and ENEC certification
- 220-240VAC universal input
- Mains-powered control gear
- DALI bus current consumption < 2mA
- 2 channels parallel connected channels output, 48VDC constant voltage
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 90%
- Complying with IEC62386-101:2014, 102:2014, 207 ed.2, scalable system
- Supports DALI-2 input devices: Occupancy, light sensors and push buttons
- Enables to control single color LED lighting
- Fade time, system failure level, power on level configurable
- 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- Error report function
- IP20 rating, suitable for indoor LED lighting applications
Specifications
| Part No. | Input Voltage | Output Voltage | Maximum Output Power | Output Current | Dimension (mm) |
|---|---|---|---|---|---|
| SRP-2309-48-150LCVT | 220-240VAC | 48VDC | 150W | 3.125A max. | 365.6*43*30 |
Product Dimension

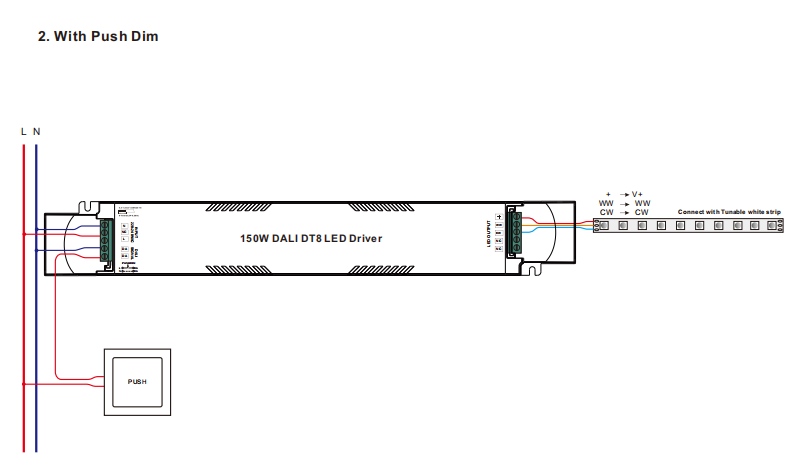

Wiring Diagram
SRP-2309-48-150LCVT User Manual
