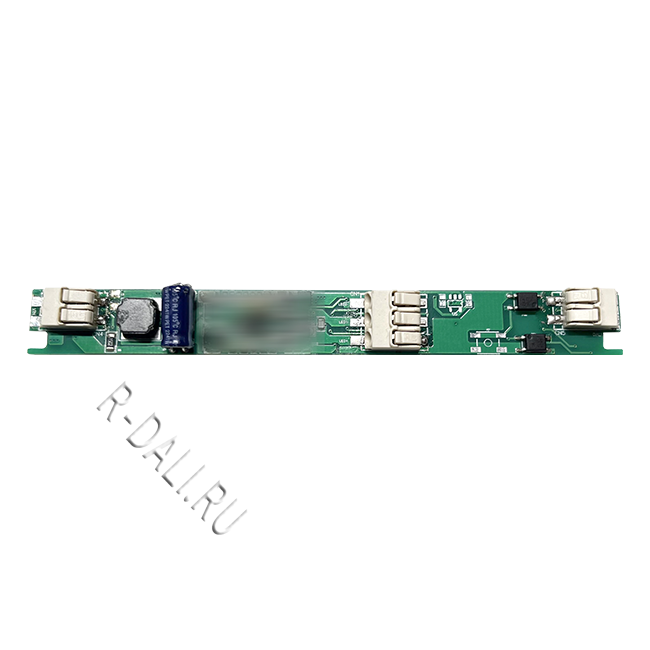

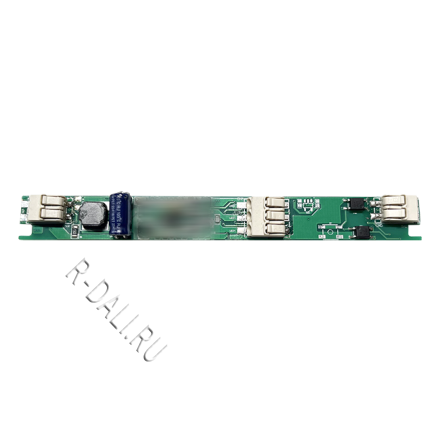

Sunricher, Дравер DALI (CC), DALI DT8 LED Driver with Terminal for Magnet Track Light SRP-2309-MT-48VCCT100-700T

The DALI DT8 LED driver with terminal features a super-slim design, specifically engineered for magnet track lights and linear lighting systems. It utilizes a magnet absorption installation method, ensuring a smooth, interference-free setup without high-frequency sound. With a DC48V input and a maximum output power of 28W, the controller offers two channels providing constant current output in the range of 100-700mA. The device allows for easy current selection via dipswitches, ensuring flexibility for different operational needs. Its deep and smooth dimming capability, down to 0.1%, ensures a flicker-free experience. The DALI DT8 is fully compliant with IEC 62386-101:2014, IEC 62386-102:2014, and IEC 62386-209 standards, and integrates seamlessly with all DALI systems on the market, thanks to its built-in DALI-2 interface. With an IP20 waterproof rating and a 5-year warranty, this controller ensures reliable, long-lasting performance.

Key Features

• Super slim design DALI DT8 LED controller
• Special design for magnet track light and linear lighting
• Magnet absorption installation application, no high frequency interference sound
• DC48V input, max. output power 28W total
• 2 channels 100-700mA constant current output, dips to select multi operation current
• Deep and smooth dimming to 0.1%, flicker free
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-209.
• Built-in DALI-2 interface, DALI DT8 device
• Match all DALI systems in the market
• Waterproof grade:IP20
• 5 years warranty

Function Introduction

Материалы для скачивания

• SRP-2309-MT-48VCCT100-700T User Manual.pdf
