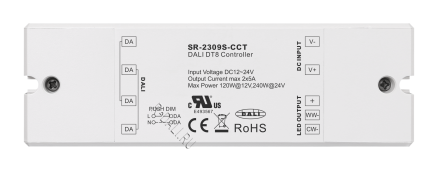

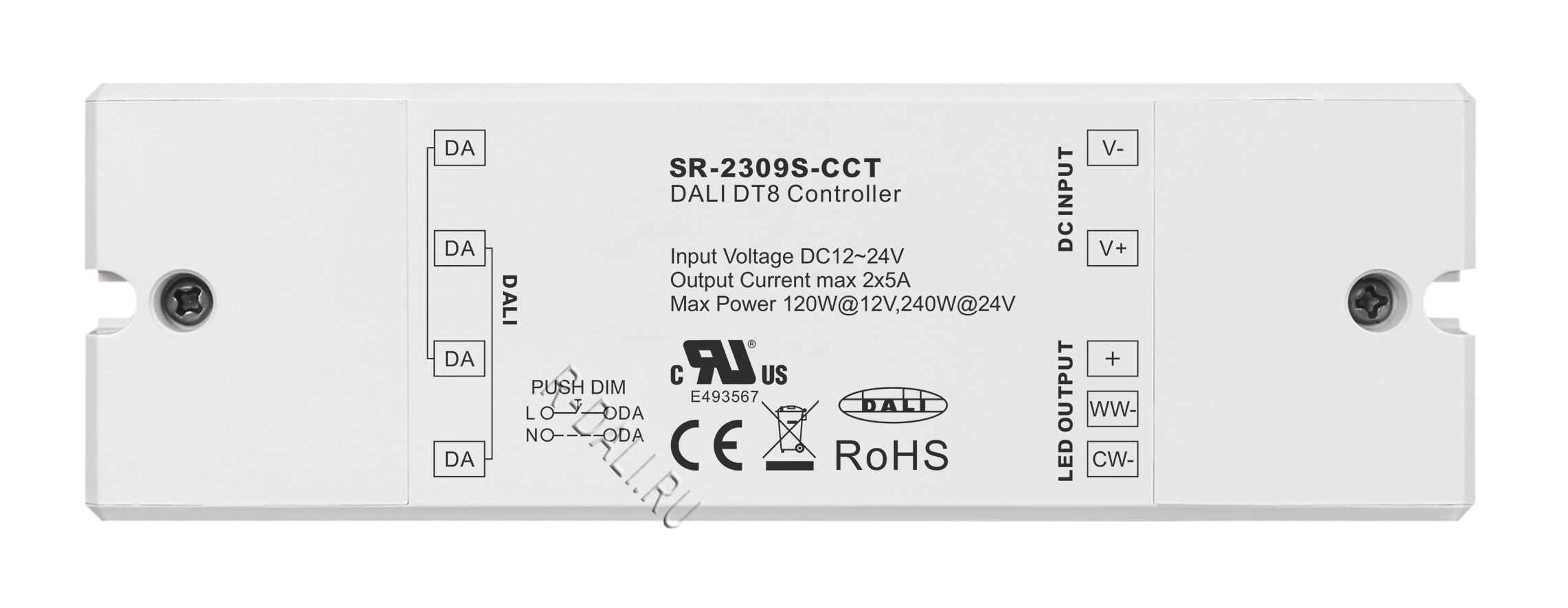

DALI DT8 Dual Color LED Dimmer SR-2309S-CCT

This constant voltage DALI DT8 dual color LED dimmer is a DALI-2, CE and FC certified device, with built-in DALI-2 interface. This device is in compliance with IIEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011, can adjust dimming and color temperature, and can control warm white and cool white output via a single DALI address. It can also be configured via DALI master USB interface. With two channels constant voltage output and maximum 5A per channel, this dimmer can support DT8 device commands, and is compatible with DALI masters that support DT8 commands.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• DALI DT8 device to control Warm White and Cool White output via a single DALI address
• 2 Channels constant voltage output with max. 5A per channel
• Enables Dimming and Color Temperature Adjustment
• Color control as defined in the DALI specification for device type 8, color type Tc.
• Supports DT8 device commands, compatible with DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Waterproof grade: IP20

Specifications

Product Dimension

Wiring Diagram

Материалы для скачивания

• SR-2309S-CCT User Manual
