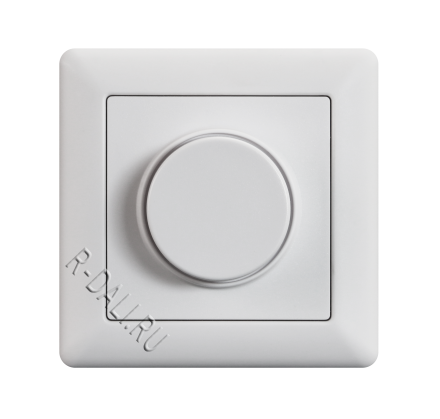

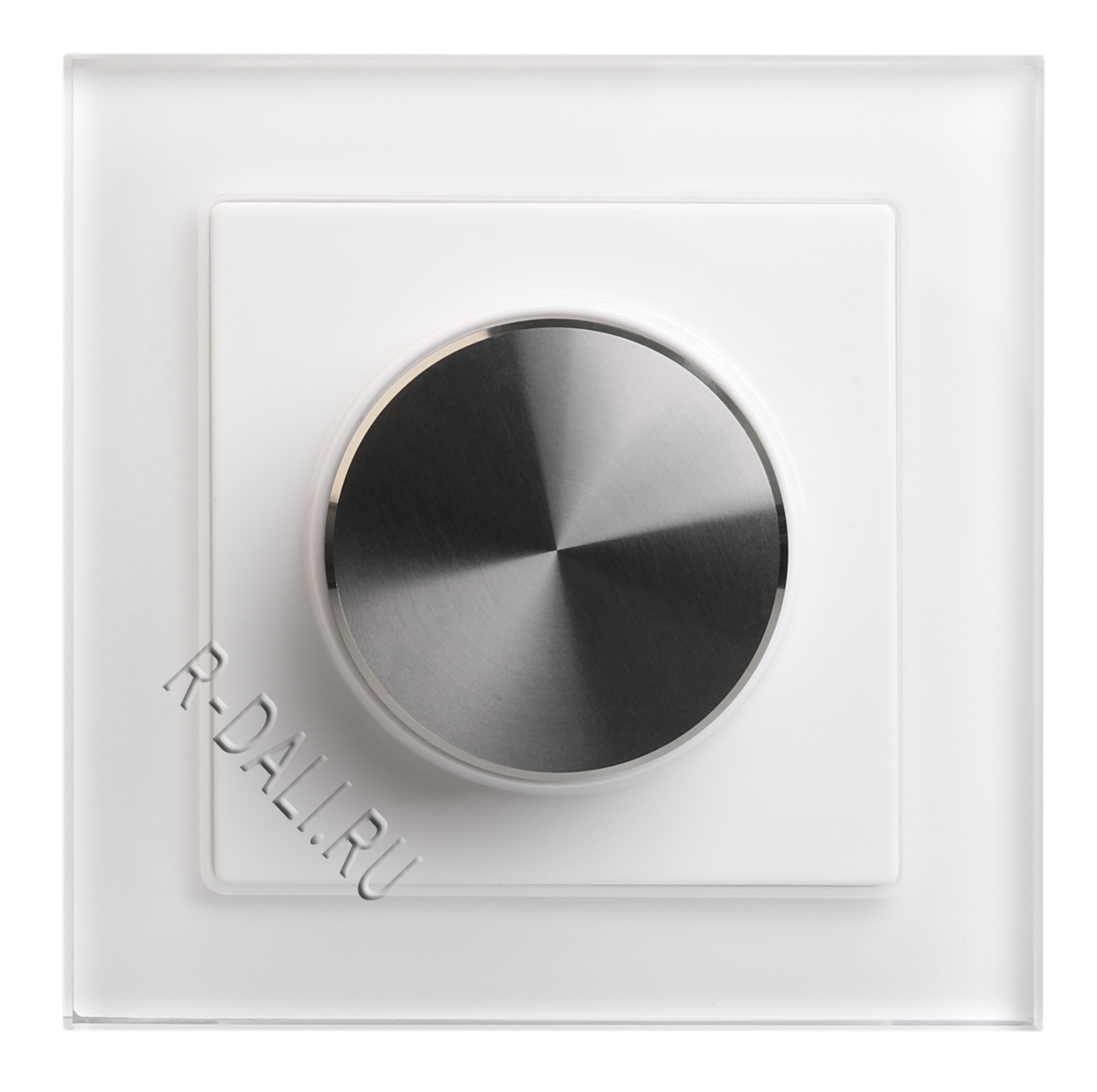

DALLI-2 Rotary Dimmer SR-2410R-DA2

The DALI Switch can be used as input device for the integration in DALI-2 compliant central lighting control systems. In this mode each input (“instance”) informs about changes by using so called “input notifications”. These event-messages can be evaluated by other controllers on the DALI-line e.g. as trigger for commands sent to luminaires.

Key Features

• DALI-2 control device according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-302
• Provides 2 instances, instance 0 is push button instance, instance 1 is rotary movement instance
• Suitable for integration and in combination with DALI-2 compliant central control units
• Multimaster capable, multiple modules can be installed on the DALI- line
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller USB interface
• Compatible with universal 55mm frames

Specification

Product Dimension

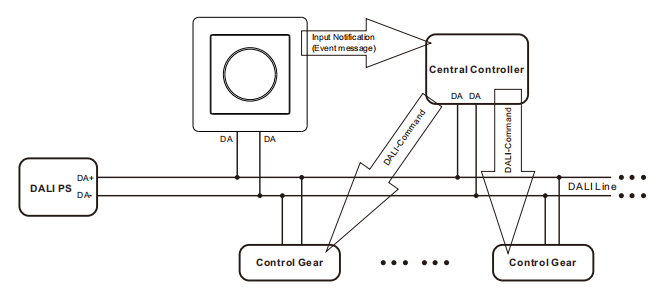

Wiring Diagram

Материалы для скачивания

• SR-2410R-DA2 User Manual
