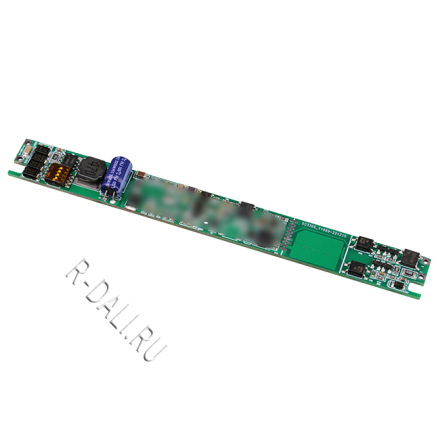

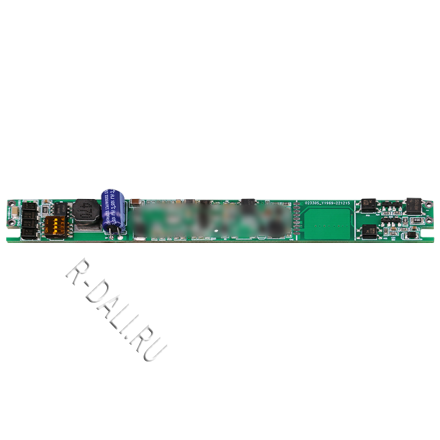

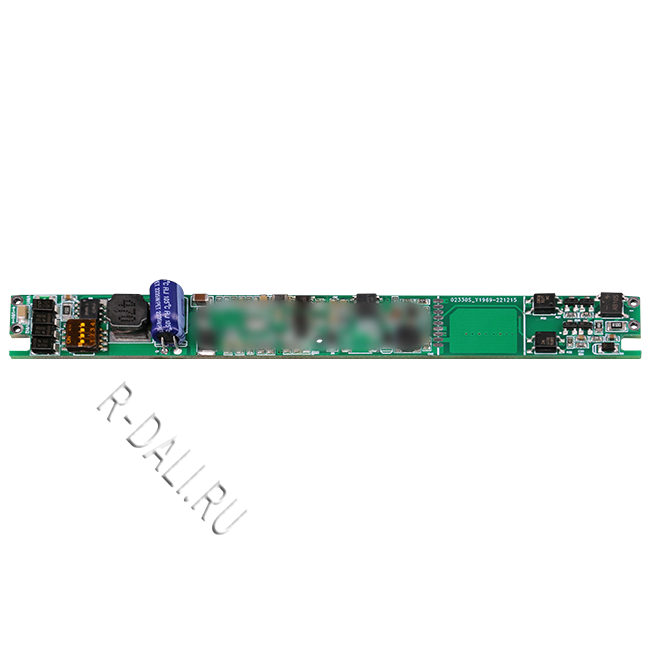

Sunricher, Дравер DALI (CC), DALI DT6 LED Driver for Magnet Track Light SRP-2305-MT-48VCC100-700

The DALI DT6 LED driver features a super slim design, tailored for use with magnet track lighting and linear lighting systems. Its magnet absorption installation ensures a hassle-free setup with no high-frequency interference sound. With a DC48V input and a maximum output power of 28W, it delivers a constant current output ranging from 100mA to 700mA, with adjustable dips to select different operating currents. The controller offers smooth and deep dimming capabilities, reaching as low as 0.1%, all while being flicker-free. It complies with IEC 62386-101:2014, IEC 62386-102:2014, and IEC 62386-207 Ed2 standards. Equipped with a built-in DALI-2 interface, the DALI DT6 seamlessly integrates with all DALI systems available in the market. It boasts an IP20 waterproof rating and is backed by a 5-year warranty. The input voltage is 48VDC ±5% (polarity free), with a current draw of 0.65A at full load, and the output rated power reaches a maximum of 28W.

Key Features

• Super slim design DALI DT6 LED controller
• Special design for magnet track light and linear lighting
• Magnet absorption installation application, no high frequency interference sound
• DC48V input, max. output power 28W total
• 1 channel 100-700mA constant current output, dips to select multi operation current
• Deep and smooth dimming to 0.1%, flicker free
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• Waterproof grade:IP20
• 5 years warranty

Function Introduction

Материалы для скачивания

• SRP-2305-MT-48VCC100-700 User Manual.pdf
