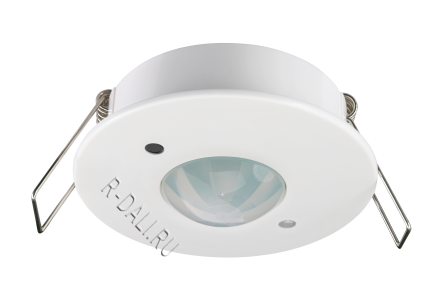

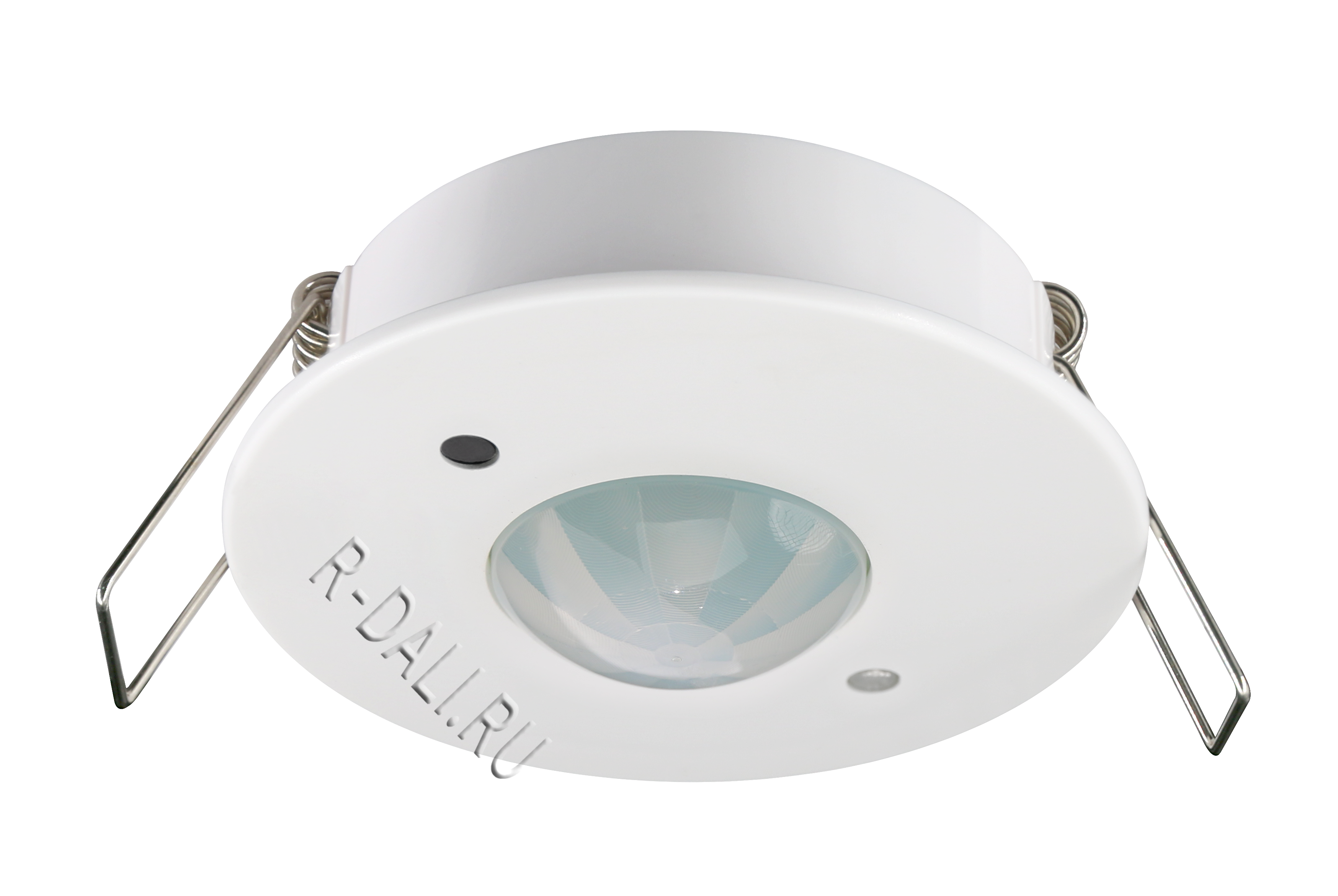

Sunricher, Датчик присутствия, Ceiling Mount DALI-2 PIR+Photocell Sensor SR-DA9030A-PIR
Артикул: SR-DA9030A-PIR
Наличие на складах:
| 1) Склад на Бумажном: | 0 шт. |
| 2) Склад удалённый: | 0 шт. |
Наличие: под заказ
The ceiling mount multi-sensor is DALI-2 device which combines motion sensor and light sensor. The device performs motion detection and measures illuminance level. The DALI-2 multi-sensor can work with D4i LED drivers or luminaires,the luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is suitable for low bay applications which need sensor based automation.
Key Features
• PIR motion detection
• Motion sensor instance type 3 (303)
• Illuminance measuremen
• Light sensor instance type 4 (304)
• Autonomous sensor-based control
• Ceiling recessed installation
Specifications
| Part No. | Power Supply | Max. DALI Current Draw | Sensor Type | Detection Range |
|---|---|---|---|---|
| SR-DA9030A-PIR | DALI Bus | 6mA | PIR sensor | φ5m@2.5m |
Product Dimension

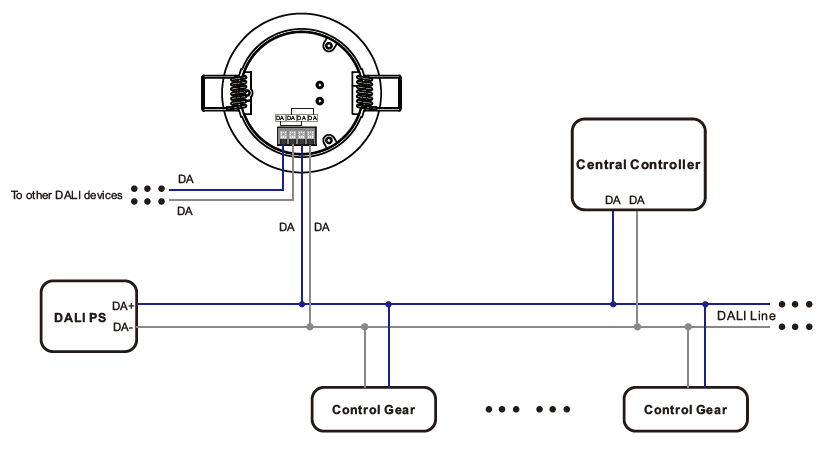

Wiring Diagram
SR-DA9030A-PIR User Manual
