Sunricher, Датчик присутствия, Ceiling Mount DALI-2 Microwave+Lux Sensor SR-DA9030A-MW-BUS
Артикул: SR-DA9030A-MW-BUS
Наличие на складах:
| 1) Склад на Бумажном: | 0 шт. |
| 2) Склад удалённый: | 0 шт. |
Наличие: под заказ
The ceiling mount multi-sensor is DALI-2 and D4i certified device which combines motion sensor and light sensor. The device performs motion detection and measures illuminance level. The D4i certified multi-sensor can work with D4i LED drivers or luminaires, the luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is suitable for high bay applications which need large detection area and sensor based automation. The multi-sensor is D4i certified and can be powered by an AUX 24V power supply in the D4i driver or D4i luminaires, it can also be powered by an external power supply when using with non-D4i DALI drivers.
Key Features
• DALI-2 & D4i certified
• Microwave motion detection
• Motion sensor instance type 3 (303)
• Illuminance measurement
• Light sensor instance type 4 (304)
• Autonomous sensor-based control
• Ceiling recessed installation
Specifications
| Part No. | Power Supply | Typical DALI Current Draw | Sensor Type | Detection Range |
|---|---|---|---|---|
| SR-DA9030A-MW-BUS | DALI Bus | 10mA | Microwave sensor | φ3m@2.5m |
Product Dimension

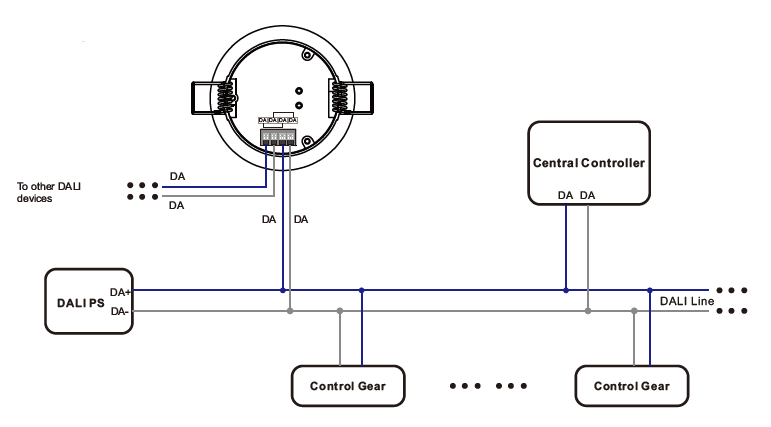

Wiring Diagram
SR-DA9030A-MW-BUS User Manual.pdf
