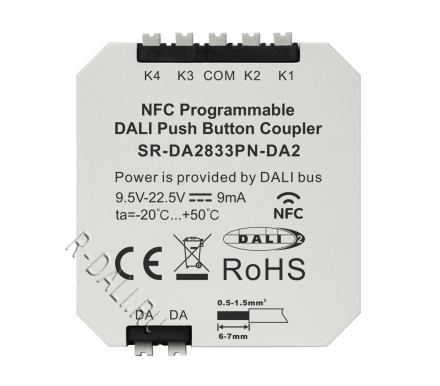

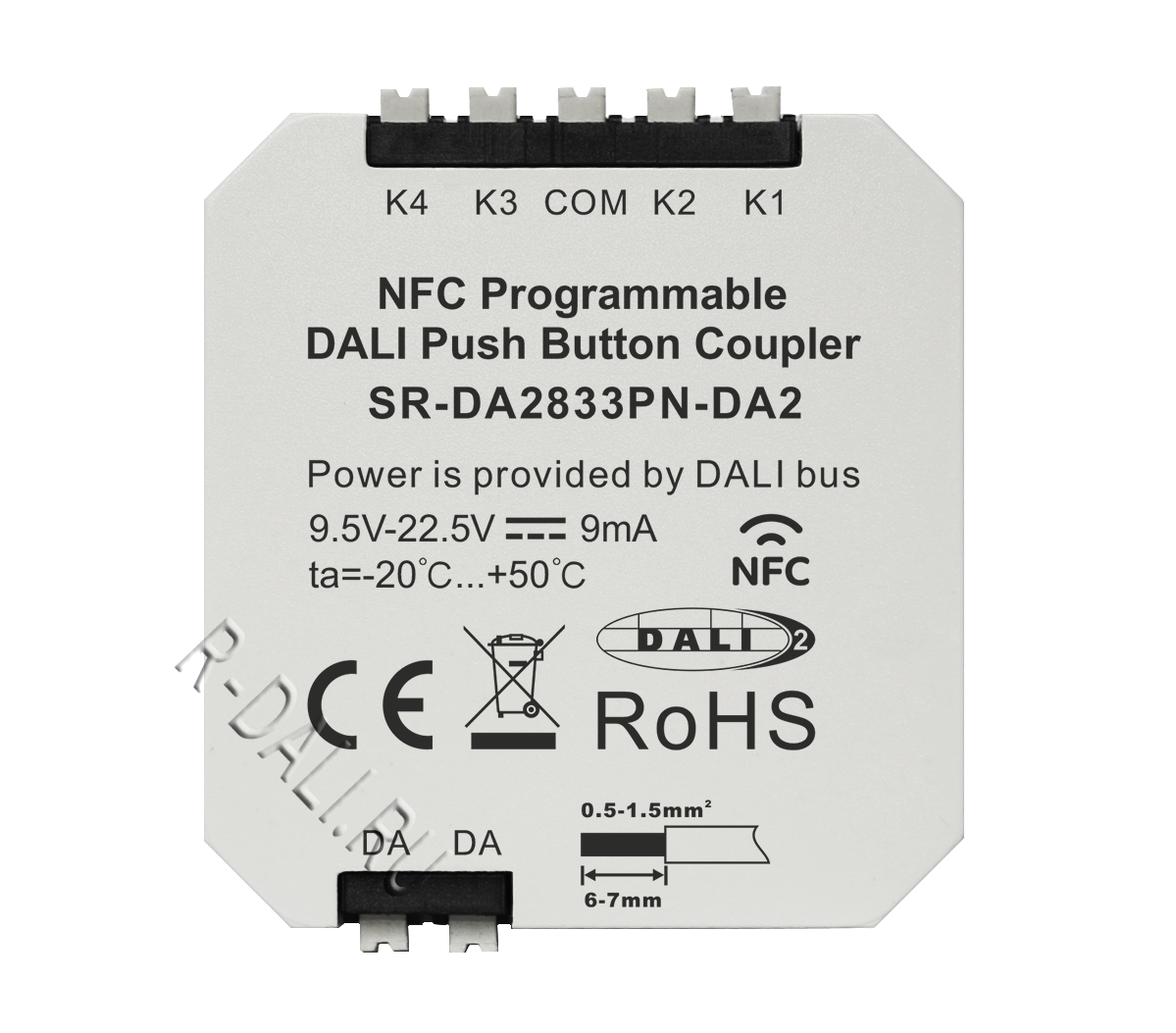

Sunricher, Бинарный ввод, NFC Programmable 4-Key DALI DALI-2 Push Button Coupler SR-DA2833PN-DA2

Ссылка успешно скопирована!

Артикул: SR-DA2833PN-DA2

Наличие на складах:

1) Склад на Бумажном:	0 шт.
2) Склад удалённый:	0 шт.

Наличие: под заказ

ЦЕНА ПО ЗАПРОСУ

DALI-2 certified control device with standalone and instance modes, featuring 4-channel push switch or sensor input. Supports DT6, Tc, XY, RGBWAF control types, and fully configurable via NFC or DALI controller. Offers flexible control options including broadcast, group, and single address. Each input supports short press, long press, and double click. Multimaster capable and DALI bus powered, no extra supply needed. Designed for easy flush-mounted installation.

Product Features

• DALI-2 control device with standalone mode and DALI-2 instance mode

• 4 channels push switch input or dry contact motion sensor input

• Four DALI-2 push button instances are available for instance mode

• In compliance with IEC62386-101, IEC62386-103, IEC62386-301

• Functionality of standalone mode can be easily configurable through NFC

• Functionality of DALI-2 instance mode can be configurable through DALI application controller

• Multimaster capable, multiple modules can be installed on the DALI- line

• ControlledDALI device type for standalone mode can be freely configured through NFC App

• Supported device types for master mode: DT6, Tc, XY coordinates, RGBWAF

• Controlled object of each push switch for master mode can be freely configured through NFC App

• Standalone mode supports broadcast, single address, and group control

• For standalone mode, each push switch supports three different operations: short press, long press, double click

• For standalone mode, DALI command triggered by a push switch operation can be freely configured through NFC App

• DALI bus powered, no extra power supply required

• Easy installation: the device can be installed in a flush-mounted installation box

Specifications

Operation Mode	Power Supply	Voltage Range	Typ. Current Consumption DALI (at 16.5V)	Max. Current Consumption DALI (Inrush Current at 22.5V)	DALI-2 addresses	Dimension (LWH)
Standalone Mode / DALI-2 Instance Mode	DALI Bus	9.5VDC - 22.5VDC	2.7mA	9mA	1	49.8x43x15.1 mm

Function Introduction

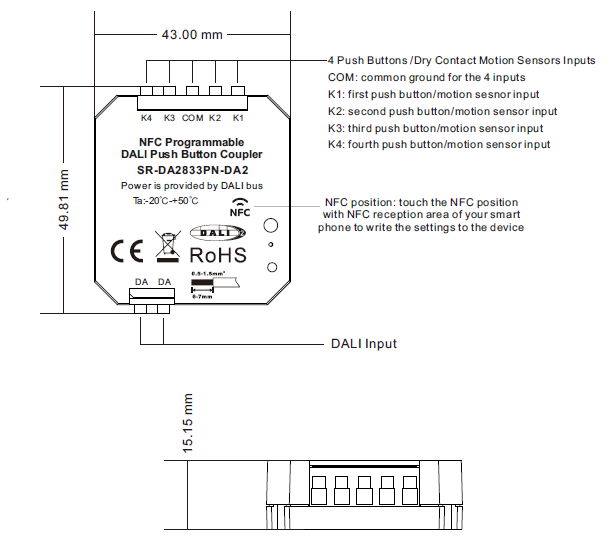

Wiring Diagram

Материалы для скачивания

SR-DA2833PN-DA2 User Manual.pdf
