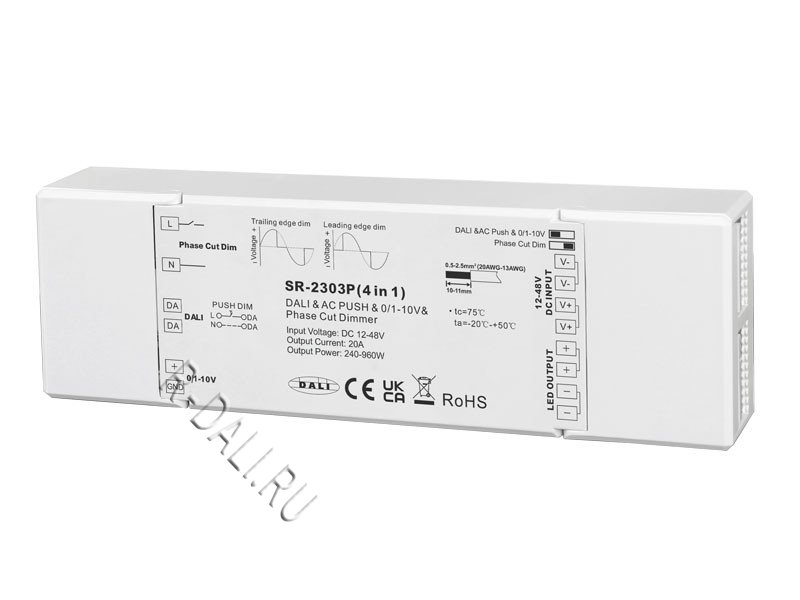

Sunricher, Диммер, Multifunction 4 Dimming Interfaces In 1 12-48VDC LED Dimmer SR-2303P(4 in 1)

SR-2303P(4 in 1) is a multifunction UL & CE approved LED dimmer with DALI, Push, Phase Cut, 0/1-10V 4 dimming interfaces in 1. It is designed with dip switch to select different dimming interfaces. The LED dimmer has 1 channel 12V/24V/36V/48VDC constant voltage output which can support up to 20A. It is designed with 12-48VDC input. This phase control LED dimmer supports both leading edge and trailing edge dimming input and can be compatible with universal phase cut dimmers. The DALI LED dimmer complies to DALI standards IEC 62386-101, IEC 62386-102, IEC 62386-207 and match all DALI systems in the market. While selecting 0/1-10V interface, it can be Compatible with universal 0/1-10V dimmers.

Key Features

• Multifunction LED Dimmer
• UL & CE approved
• With DALI, Push, Phase Cut, 0/1-10V 4 dimming interfaces in 1
• Dip switch to select different dimming interfaces
• 1 channel 12-48VDC output, max. 20A
• Supports both leading edge and trailing edge dimming input
• Complies to DALI standards IEC 62386-101, IEC 62386-102, IEC 62386-207
• Match all DALI systems in the market
• 1 DALI address assigned by DALI master
• Compatible with universal phase cut dimmers
• Compatible with universal 0/1-10V dimmers
• To work with power repeater to expand output power unlimitedly
• IP20 rating, suitable for indoor LED lighting applications

Specifications

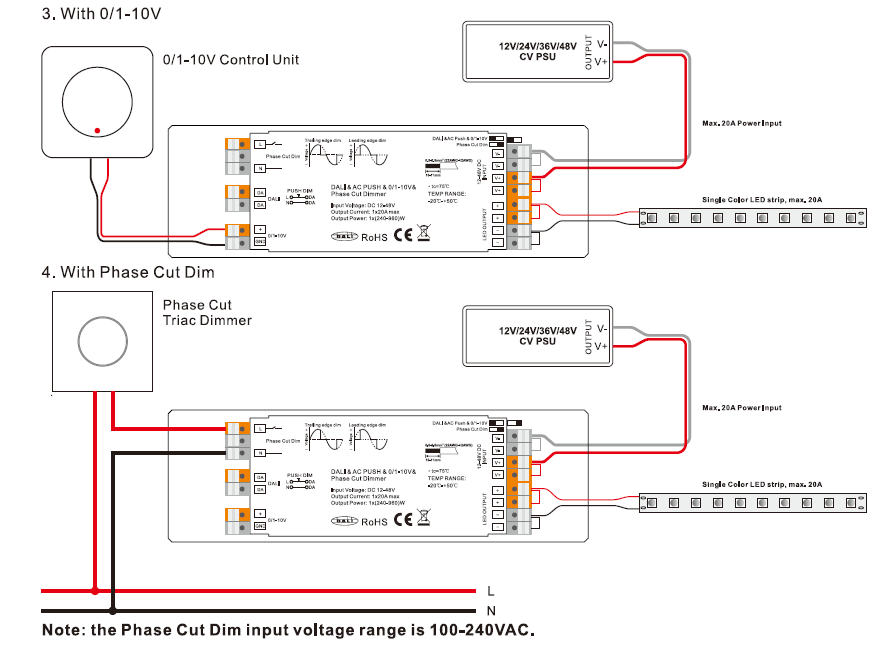

Wiring Diagram

Материалы для скачивания

• SR-2303P(4 in 1) User Manual
