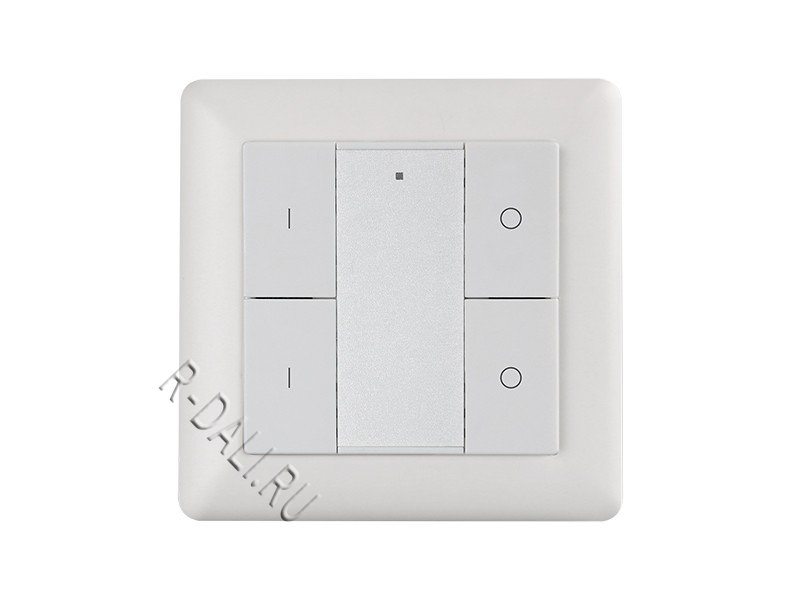

Single Color 2 Groups Push Button DALI Control Panel SR-2422K4-DIM-G2

Push button DALI control panel SR-2422K4-DIM-G2 is a single color DALI controller that controls 2 group addresses. The groups of devices on DALI circuit to be controlled can be assigned manually by rotary switch on the back. All DALI devices on the circuit can be controlled by the panel through broadcast. The DALI panel enables to switch on/off and increase/decrease light intensity of the groups. It is easy to use and no configuration by computer required. The DALI controller can be compatible with all universal DALI master controllers. Compatible with existing standard size frames from Berker, Merten, Gira, the DALI push button controller can be wall mounted easily.

Key Features

• Single Color Push Button DALI Control Panel
• 4 Buttons Design with Group Control
• Control 2 Group Addresses
• Control of All DALI Devices on the circuit through Broadcast
• Enable to Set Start Group Number Manually by Rotary Switch on the back
• Easy to Use, No Configuration by Computer Required
• Compatible with All Universal DALI Masters
• Easy Installation, Compatible with Existing Standard Size Frames

Specification

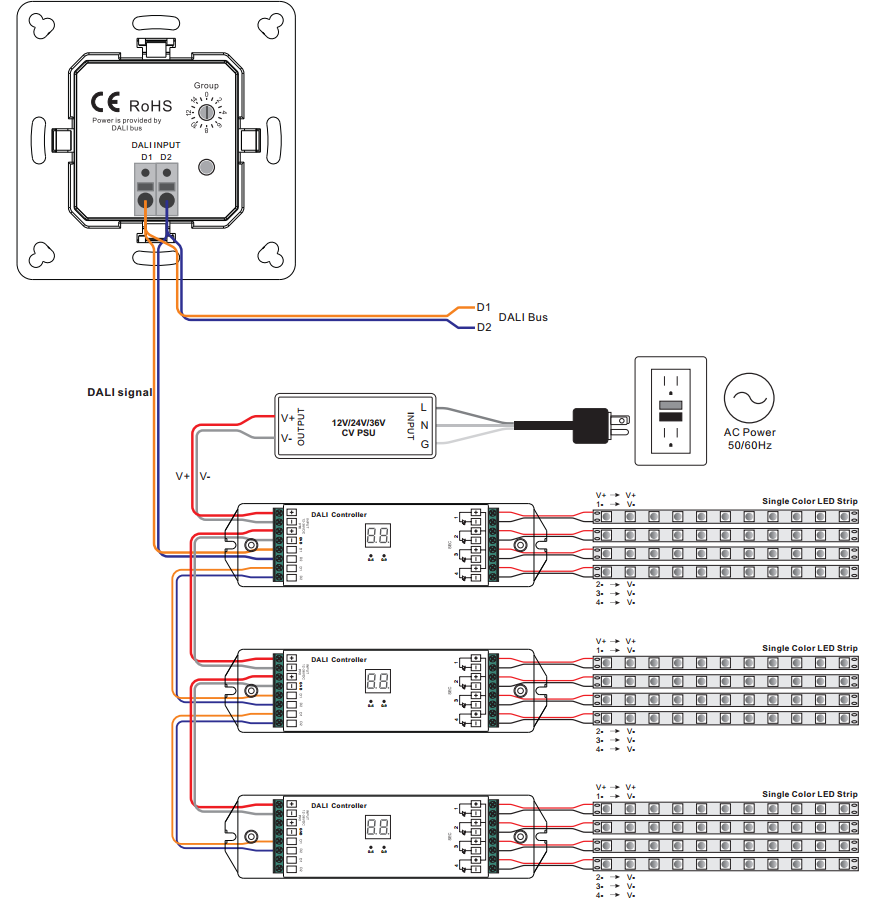

Wiring Diagram

Материалы для скачивания

• SR-2422K4-DIM-G2 User Manual
