DT8 RGBW DALI MCU SR-2400RB-RGBW
Артикул: SR-2400RB-RGBW
Наличие на складах:
| 1) Склад на Бумажном: | 0 шт. |
| 2) Склад удалённый: | 0 шт. |
Наличие: под заказ
The DT8 RGBW DALI MCU is a compact controller for precise RGBW lighting control. It includes a built-in 100mA DALI power supply for up to 50 ECGs and supports operation via AC mains or DALI bus. Compatible with DALI DT8 RGBWAF devices, it allows separate control of RGB and white channels and supports setting or deleting minimum dimming levels for flexible lighting adjustment.
Key Features
• DT8 RGBW DALI MCU
• Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs.
• Powered by DALI bus while not connected to AC mains.
• Max. 100 DALI ECGs on a DALI line can be controlled by 4 MCUs via broadcast (2 by AC mains, 2 by DALI bus).
• Supports DALI DT8 RGBW devices with color type RGBWAF
• RGB channels can be turned off and W channel can be controlled separately from RGB channels
• Enables to set and delete a minimum dimming level
Specifications
| Part No. | Operation Voltage | Output | Dimension (mm) |
|---|---|---|---|
| SR-2400RB-RGBW | 100-240VAC/Provided by DALI Bus | DALI Signal | 80*80*53 |

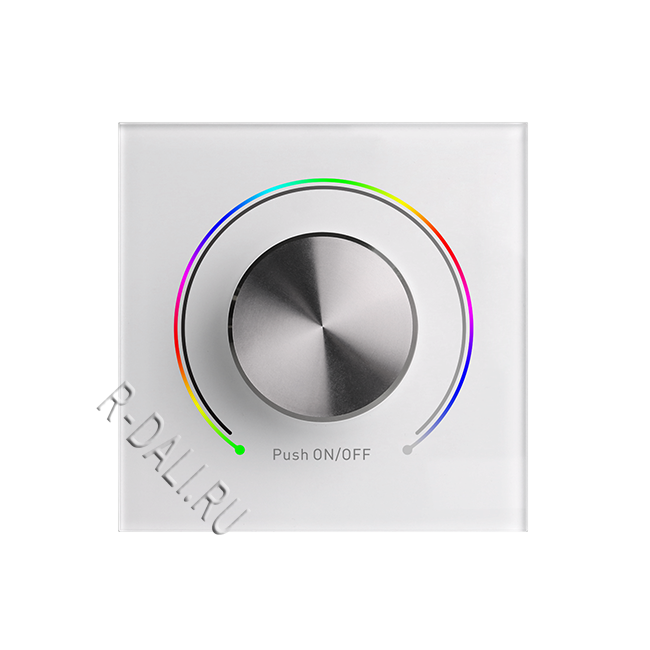

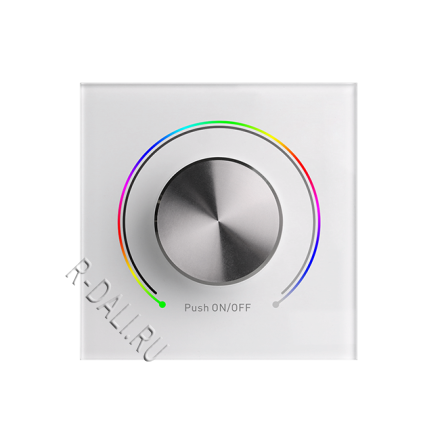

Product Dimension

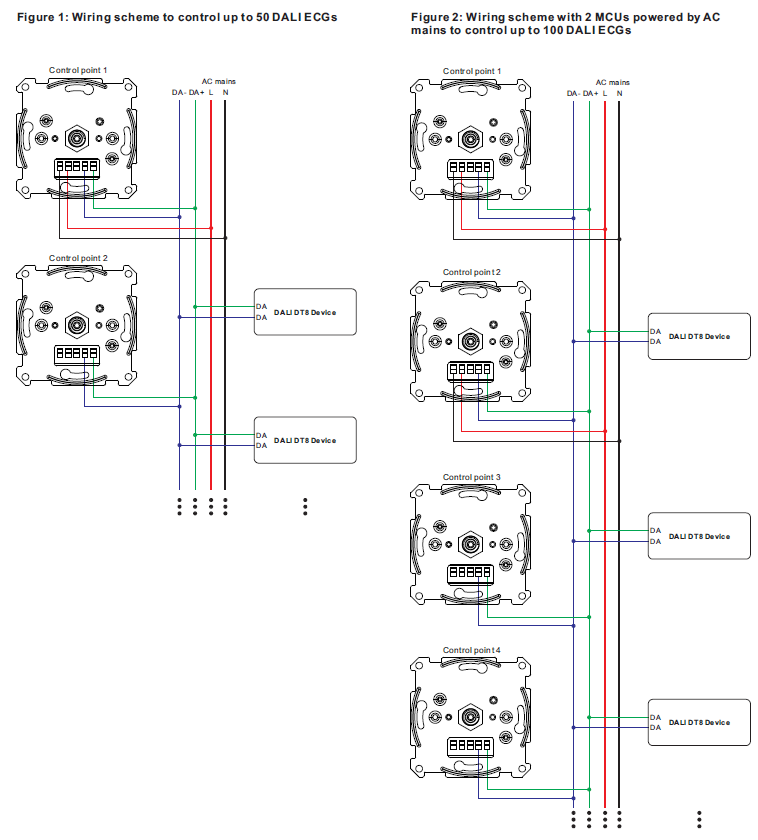

Wiring Diagram
SR-2400RB-RGBW User Manual
