Homeelife APP Wireless to DALI Gateway SR-GW-HDA

SR-GW-HDA is a Wireless APP to DALI Master Gateway (Homeelife APP Wireless to DALI Gateway). This Homeelife to DALI gateway supports addressing, grouping, and scene configuration for up to 64 DALI devices, including DT6 and DT8 types (Tc, XY, RGBWA). With a built-in 250mA DALI power supply, it eliminates the need for extra wiring. Easily configured via the Homeelife App, it enables wireless independent control and supports up to 80–100 gateways per network.

Key Features:

• Supports addressing, grouping and scene configuration for max. 64 control gears

• Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWA device types

• Built-in 250mA DALI PS, no extra wiring required

• Easy & quick configuration through Homeelife APP

• Supports independent control of DALI devices through wireless devices.

• A single network supports a maximum of 80-100 homeelife to DALI gateways.

Specifications

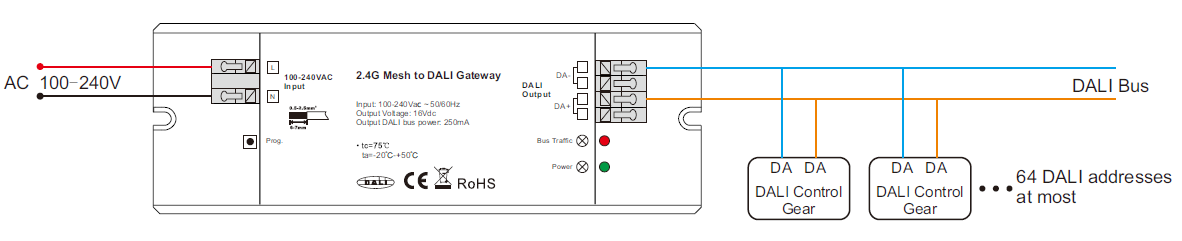

Wiring Diagram

Материалы для скачивания

• SR-GW-HDA User Manual
