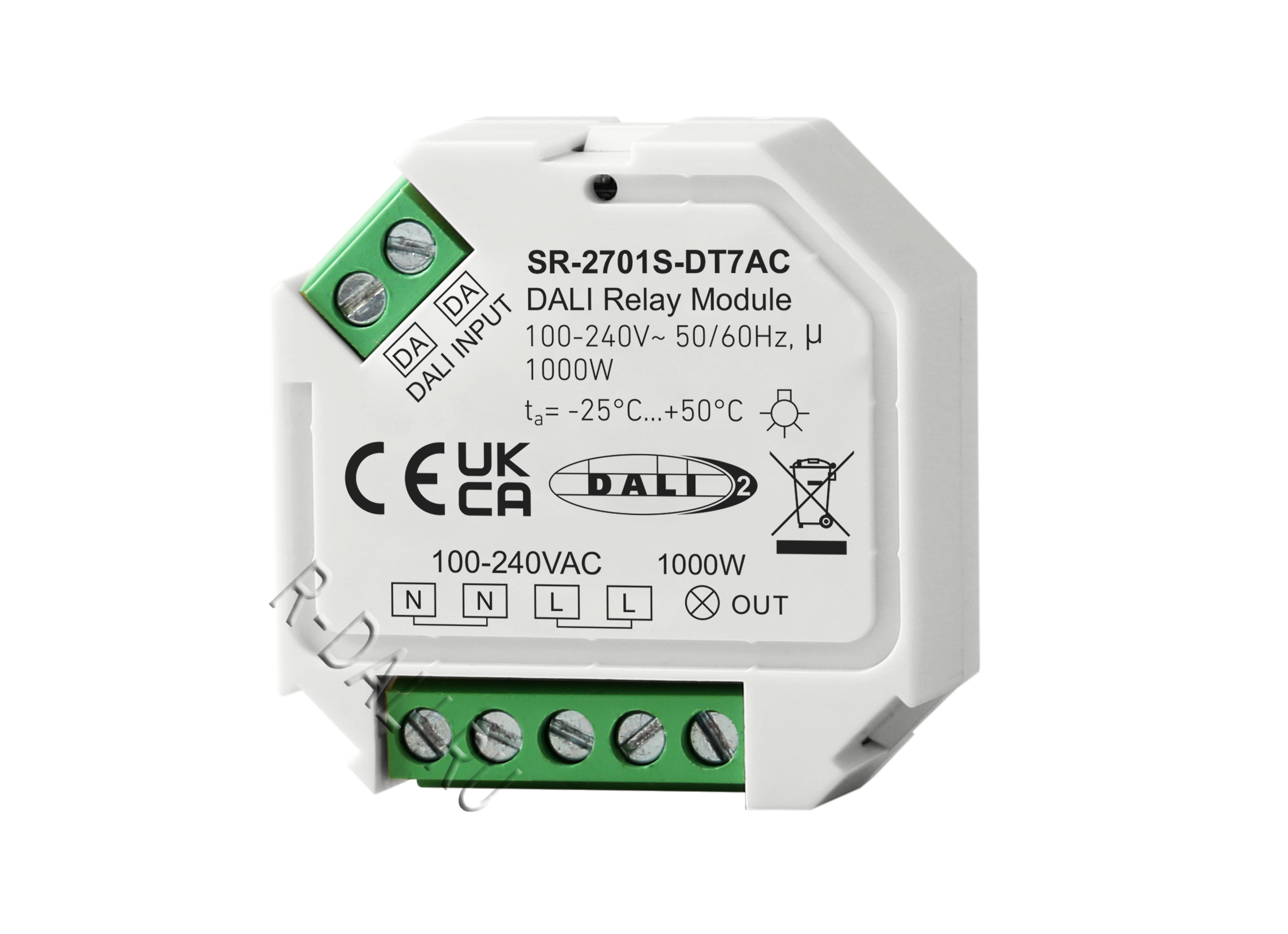

DALI-2 Relay Module SR-2701S-DT7AC

The DALI-2 relay module is designed to integrate non-DALI devices into a DALI circuit. It supports a wide input voltage range of 100-240VAC and is compatible with both DALI and DALI-2 versions, ensuring versatility and adaptability. The module allows for easy assignment of a DALI address via the DALI master controller and complies with the IEC 62386-208 standard. It features a single channel actuator (switch) with DALI-2 input and incorporates key safety features such as zero-crossing detection, overload, and short circuit protection. Its compact design enables simple installation into a standard wall box. As a compliant DALI device type 7, the module comes with a 5-year warranty and is rated with an IP20 waterproof grade.

Key Features

• DALI-2 relay module
• 100-240VAC power input
• 1 DALI address can be assigned by DALI master controller
• Compatible with DALI and DALI-2 versions
• Compliant to IEC 62386-208
• Loads that do not have a DALI input can therefore be integrated in the DALI circuit
• 1 channel actuator (switch) with DALI-2 input
• Switching voltage 100-240VAC
• Zero-crossing detection, 300,000 times switching life cycle.
• Overload and short circuit protection
• Mini Size, easy to be Installed into a standard wall box
• Compliant DALI device type 7
• 5 years warranty
• Waterproof grade: IP20

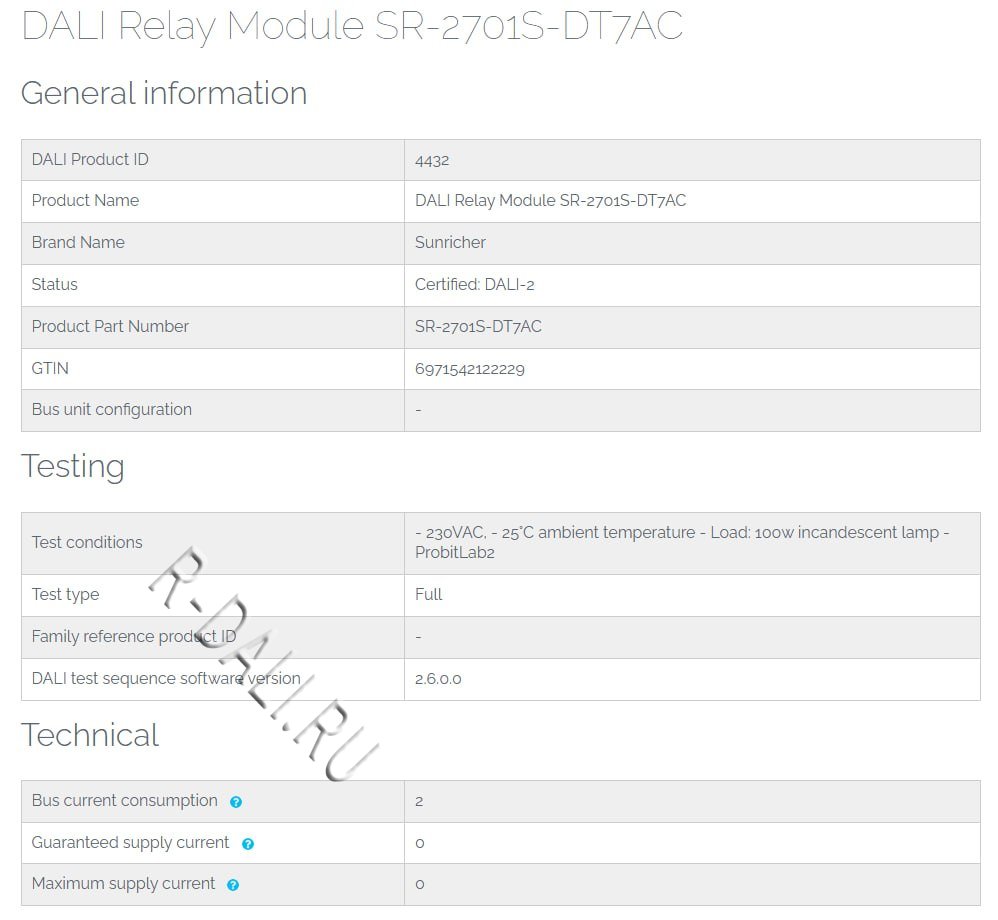

 Specifications

Wiring Diagram

Материалы для скачивания

• SR-2701S-DT7AC User Manual
