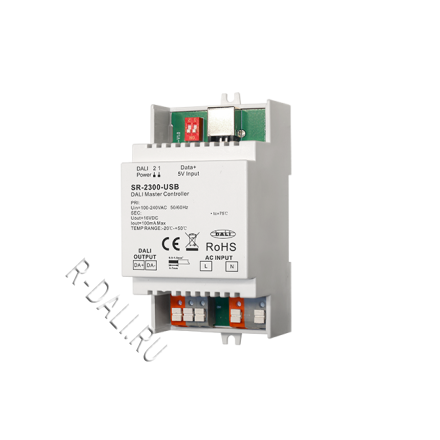

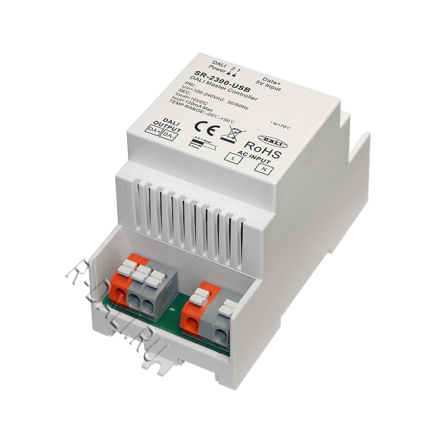

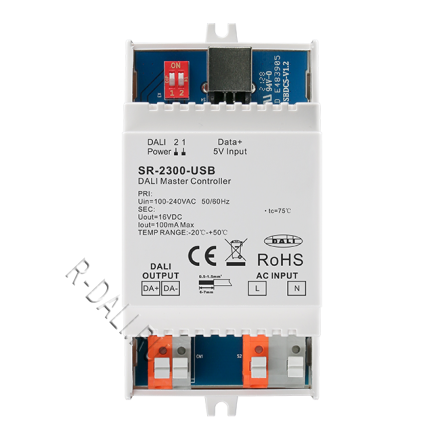

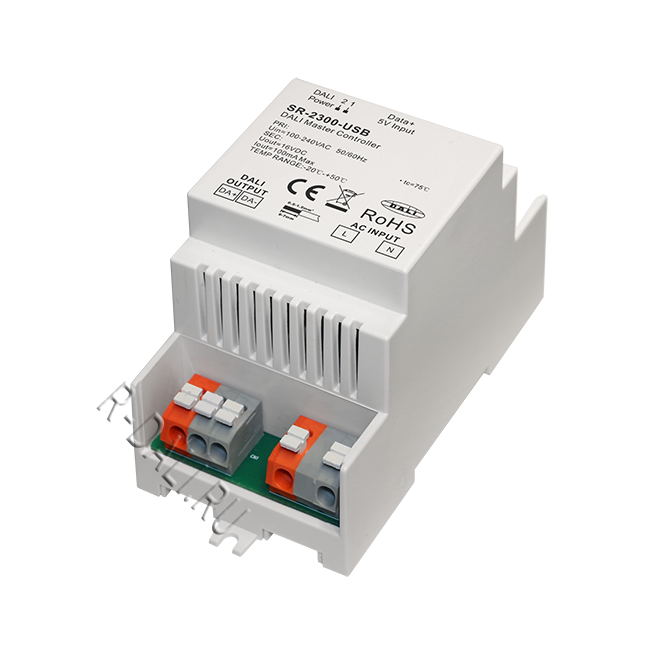

DIN Rail DALI Master Controller SR-2300-USB

The DIN Rail DALI master controller SR-2300-USB is a central controller of a DALI system to control DALI control gears and configure DALI-2 input devices on the DALI line. Each DALI channel enables to automatically assign and manage addreses to up to 64 control gears, the control gears can be assigned to up to 16 groups. The DALI-2 master supports 5 DALI control gear device types: DT6, DT8 Tc, DT8 XY coordinate, DT8 RGBWA, DT7 Switching actuator. Each DALI channel also supports all types of DALI-2 input devices include push buttons, motion sensors, light sensor, rotary switch and touch panels. Each DALI channel can address and manage up to 64 DALI-2 input devices, the input devices can be assigned to up to 32 groups. Each DALI channel enables to set up to 16 DALI scenes. It enables to set up to 256 timer tasks. It enables to set up to 4 types brightness fade and color fade cycle schedules. It enables to set up to 4 Bionic color temperature schedules for the CCT control gears to mimic natural light change during 24 hours of a day (Human Centric Lighting). It is designed with PC configuration software tool, enables to configure and read parameters of the DALI control panel and control gears, and manage the control panel and control gears.

This DALI master is designed with built-in 230mA DALI PS to power the DALI circuit. Meanwhile dip switches can be used to disable or enable built-in DALI PS. Once built-in DALI PS is disabled, the master controller can be connected to an external DALI PS. The DALI master can be easily mounted on 35mm standard DIN rail.

Key Features

• Central controller of a DALI system to control DALI control gears on the DALI line
• Designed with built-in 230mA DALI PS to power the DALI circuit
• Dip switches can be used to disable or enable built-in DALI PS
• Once built-in DALI PS is disabled, the master controller can be connected to an external DALI PS
• Each DALI channel enables to automatically assign and manage addreses to up to 64 control gears
• The control gears can be assigned to up to 16 groups
• Supports 5 DALI control gear device types: DT6, DT8 Tc, DT8 XY coordinate, DT8 RGBWA, DT7 Switching actuator
• Each DALI channel also supports all types of DALI-2 input devices include push buttons, motion sensors, light sensor, rotary switch and touch panels
• Each DALI channel can address and manage up to 64 DALI-2 input devices
• The input devices can be assigned to up to 32 groups
• Each DALI channel enables to set up to 16 DALI scenes
• Enables to set up to 256 timer tasks
• Enables to set up to 4 types brightness fade and color fade cycle schedules
• Enables to set up to 4 Bionic color temperature schedules for the CCT control gears to mimic natural light change during 24 hours of a day (Human Centric Lighting)
• Designed with PC configuration software tool, enables to configure and read parameters of the master and control gears
• Can be easily mounted on 35mm standard DIN rail

Specifications

Wiring Diagram

Материалы для скачивания

• SR-2300-USB User Manual
• DALI Master Controller PC Configuration Software Instruction V1.27 User Manual
