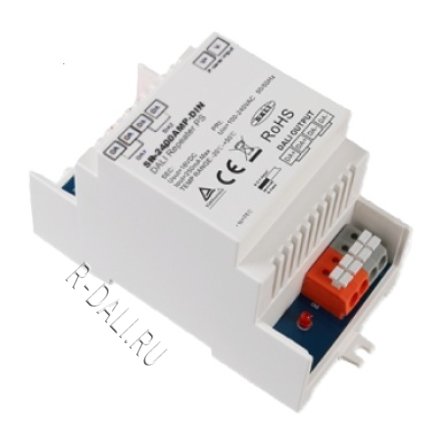

Sunricher, DIN Rail DALI Repeater Power Supply SR-2400AMP-DIN
Артикул: SR-2400AMP-DIN
Наличие на складах:
| 1) Склад на Бумажном: | 0 шт. |
| 2) Склад удалённый: | 0 шт. |
Наличие: под заказ
The DALI Repeater extends the DALI network range from 300m to 600m with built-in power supply. It ensures bidirectional signal transmission and galvanic isolation between circuits, supporting radial or cascaded layouts. No additional power supply is needed for subordinate DALI lines.
Key Features
• DALI repeater with integrated DALI power supply.
• Device to enhance the maximum DALI cable length from 300m up to 600m.
• Enhancement and Transmission of the DALI-signals (bidirectional).
• Galvanic separation between DALI circuits.
• Either radially arranged network layout or cascaded system mounting operated with single master.
• restricted cascading (Series wiring) of multiple repeaters in multi-master operating mode
• The maximum amount of DALI-devices in the total network is limited to 64, the devices can be divided on the subordinate circuits at will.
• For each subordinate DALI circuits no extra DALI power supply required
Specifications
| Part No. | Input Voltage | Typ. current consumption DALI IN | Typ. current consumption DALI OUT | Dimension (L*W*H) |
|---|---|---|---|---|
| SR-2400AMP-DIN | 24V DC | <2mA | Integrated DALI PS: up to 150mA | 110x53x65mm |
Product Dimension

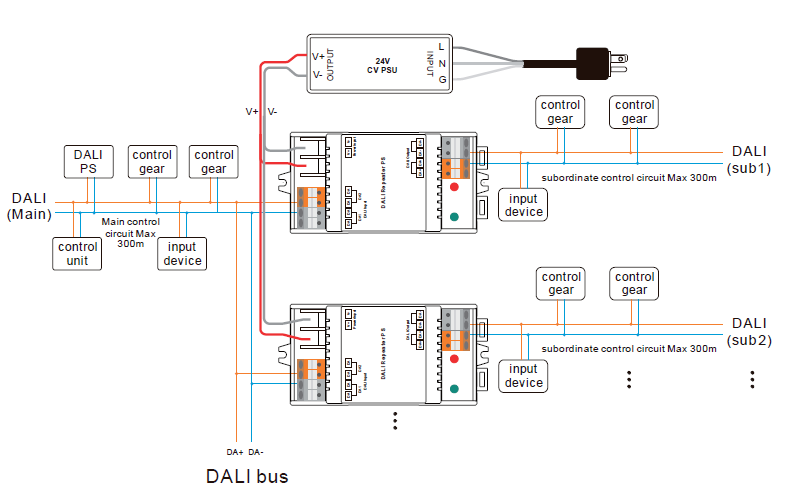

Wiring Diagram
SR-2400AMP-DIN User Manual
