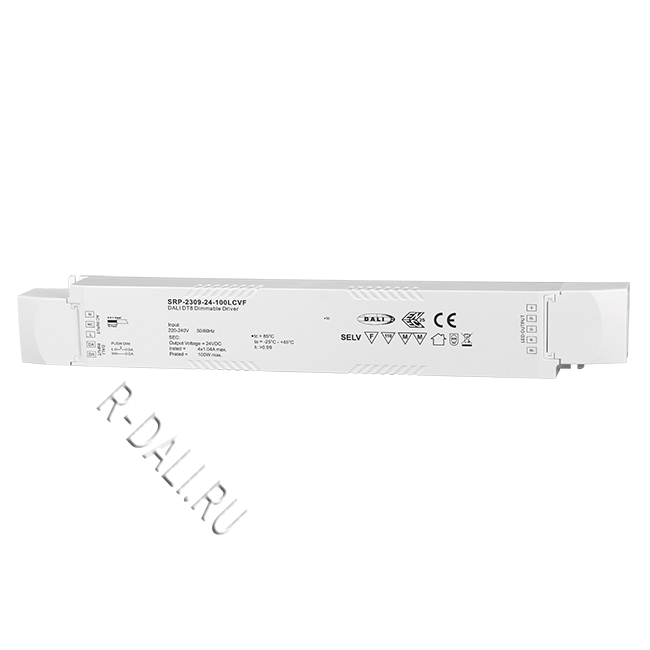

100W 4 Channels 24VDC DALI DT8 LED Constant Voltage Driver SRP-2309-24-100LCVF
Артикул: SRP-2309-24-100LCVF
Наличие: под заказ
SRP-2309-24-100LCVF is a DALI-2 certified 100W LED driver with 4 parallel connected channels and 24VDC constant voltage output. It is designed with 220-240VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.UL and ENEC certification ensures high safety and reliability performance of the driver to be used worldwide.
Key Features
• Dimmable LED driver, max. output power 100W total
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• 4 channels DC 24V constant voltage output
• High power factor and efficiency
• Built-in DALI interface, DALI DT8 device, each device is controlled via a single DALI address
• PWM dimming,smooth and deep dimming to 0.1%
• Compatible with universal DALI masters that support DT8 commands
• LED Driver has Class A sound ratings per Energy-star regulated
• Error report function, support DALI DT8 RGBW type
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
Specifications
| Part No. | Input Voltage | Rated Power | LED Channel | DC Voltage | Max. Current | Dimension (L*W*H) |
|---|---|---|---|---|---|---|
| SRP-2309-24-100LCVF | 220-240VAC | Max. 100W | 4 Channels | 24V DC | Max. 4.17A (CH1+CH2+CH3+CH4≤4.17A) | 306.6*43*30 mm |
Product Dimension
Wiring Diagram
SRP-2309-24-100LCVF User Manual
