Sunricher, Блок Питания, 4 Channels DALI Power Supply SR-2400P-DC4
Копировать ссылку на товар
Ссылка успешно скопирована!
Артикул: SR-2400P-DC4
Наличие на складах:
| 1) Склад на Бумажном: | 0 шт. |
| 2) Склад удалённый: | 0 шт. |
Наличие: под заказ
ЦЕНА ПО ЗАПРОСУ
SR-2400P-DC4 is a universal DALI power supply designed with input voltage 24VDC with 4x250mA output current to power DALI bus. The DALI power features high reliability and stability with over current protection.
Key Features
• Match all DALI system in the market
• DALI bus power supply
• Waterproof grade:IP20
Specifications
| Part No. | Input Voltage | Output | Number of DALI Channels | Output Voltage | Output Current | Dimension (LxWxH) |
|---|---|---|---|---|---|---|
| SR-2400P-DC4 | 24VDC | DALI | 4 | 16VDC | 4x250mA | 90.1x72x66.4mm |
Product Dimension

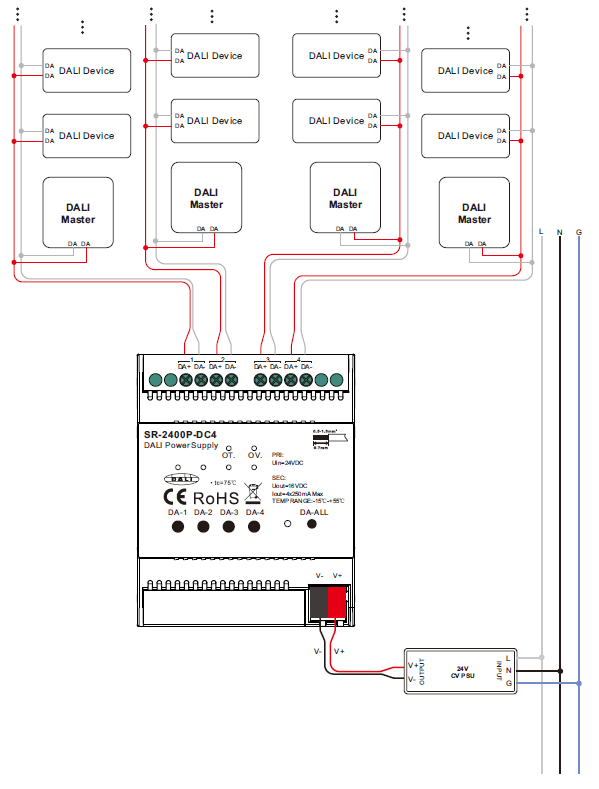

Wiring Diagram
SR-2400P-DC4 User Manual
