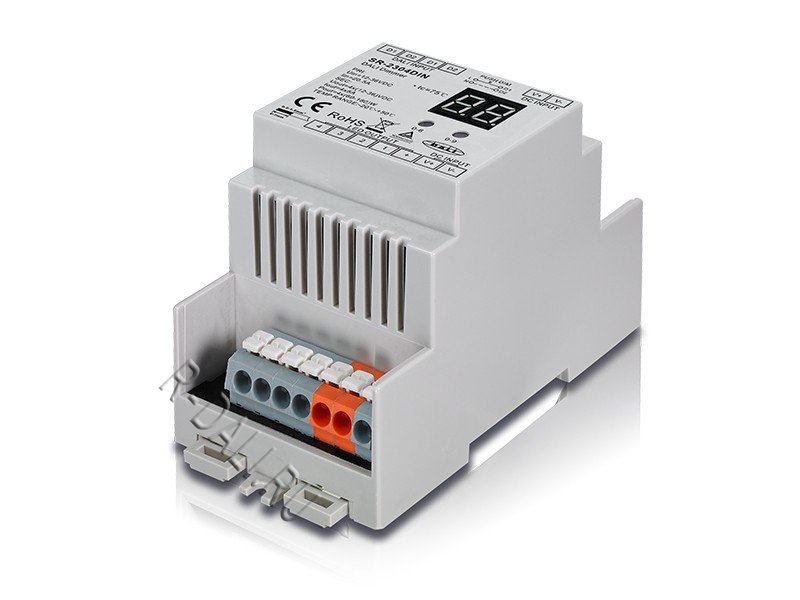

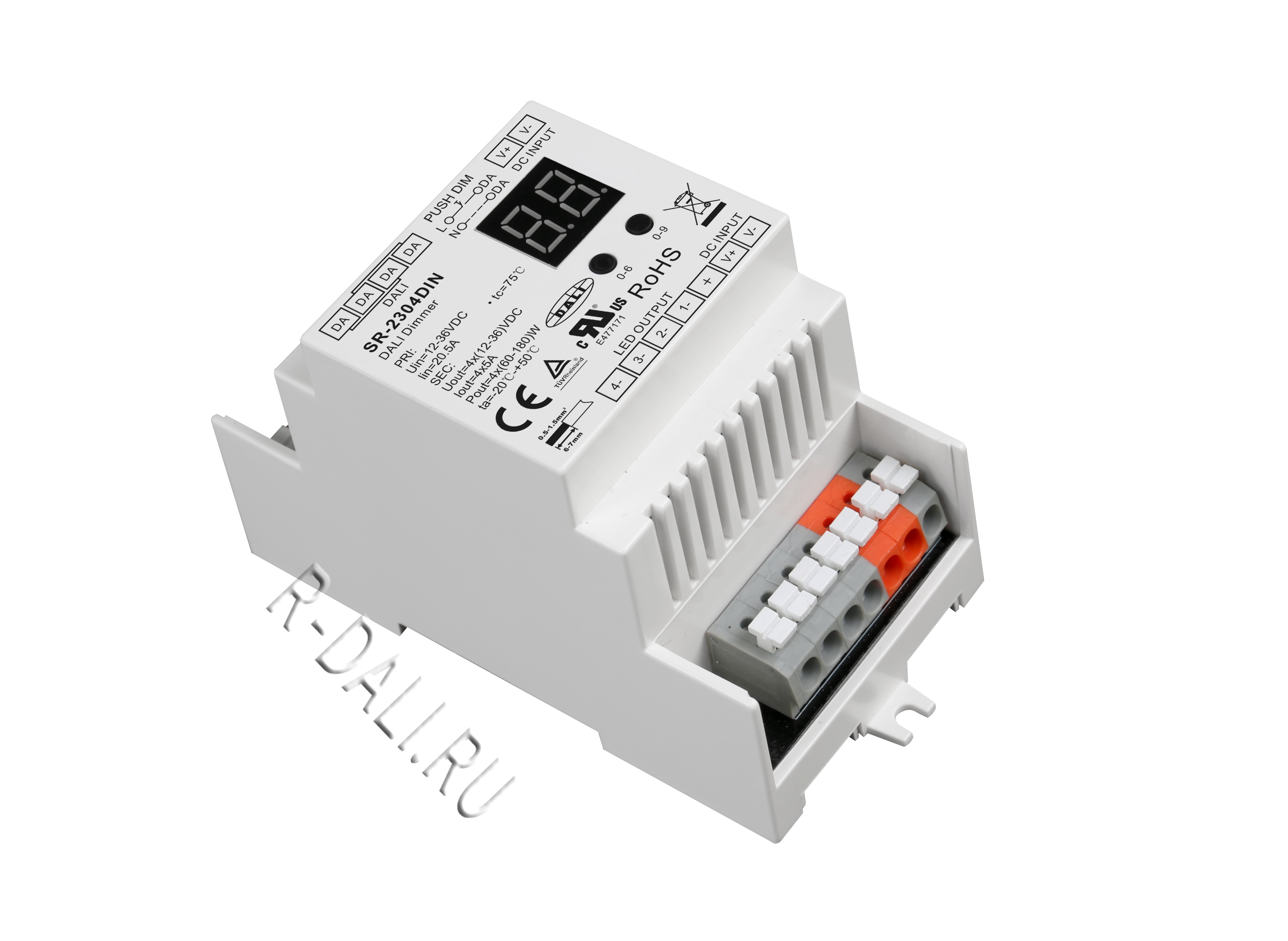

Push Switch Compatible DALI Dimmer SR-2304DIN

The DALI Dimmer SR-2304DIN is a din rail mounted DALI controller that complies with standard DALI protocol and can be compatible with both DALI master and push button switch without DALI signal, which means it can receive both DALI signal and push signal. The DALI dimmer comes with constant voltage output and available in 12VDC, 24VDC and 36VDC. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 1-4 DALI addresses can be configurable for 4 channels to work synchronously or separately. 0.1%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision.

Key Features

• DALI certified
• TUV CE certified
• Din rail mounted DALI dimmer.
• In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and can be compatible with DALI products from other international incorporations.
• DALI address can be manually assigned and shown in numeric digital display or automatically assigned by master controller.
• 1-4 DALI addresses can be configurable for 4 channels to work synchronously or separately.
• 0%-100% dimming range via logarithmic characteristic, perfect for human's vision.
• It's not only compatible with DALI master to dim with DALI signal, but also compatible with push switch (1-button mode) switch to dim without DALI signal.
• To work with LED lights to establish DALI lighting system.
• To work with power repeater to expand output unlimitedly.

Specifications

Product Dimension

Wiring Diagram

Материалы для скачивания

• SR-2304DIN User Manual
