DALI To 0-10V/PWM SR-2303(0-10V/PWM)
Копировать ссылку на товар
Ссылка успешно скопирована!
Артикул: SR-2303(0-10V/PWM)
Наличие: под заказ
ЦЕНА ПО ЗАПРОСУ
The SR-2303 (0-10V/PWM) is a 0-10V LED driver which receives and converts DALI signal to 0-10V/PWM signal to dim and switch single color LED lighting. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. The 0-10V driver can be compatible with a variety of DALI masters.
Key Features
- DALI certified
- TUV CE certified
- 0-10V LED driver which receives and converts DALI signal to 0-10V/PWM signal
- To dim and switch single color LED lighting
- DALI address can be manually assigned and shown in numeric digital display or automatically assigned by master controller
- Compatible with a variety of DALI masters
Specifications
| Part No. | Input Voltage | Input Current | Output | Remarks | Dimension (mm) |
|---|---|---|---|---|---|
| SR-2303(0-10V/PWM) | 100-240VAC | 60mA Max. | 2*(0-5VDC)2*(0-10VDC)2*(0-15VDC) | Output PWM Signal | 59*170*29 |
Product Dimension

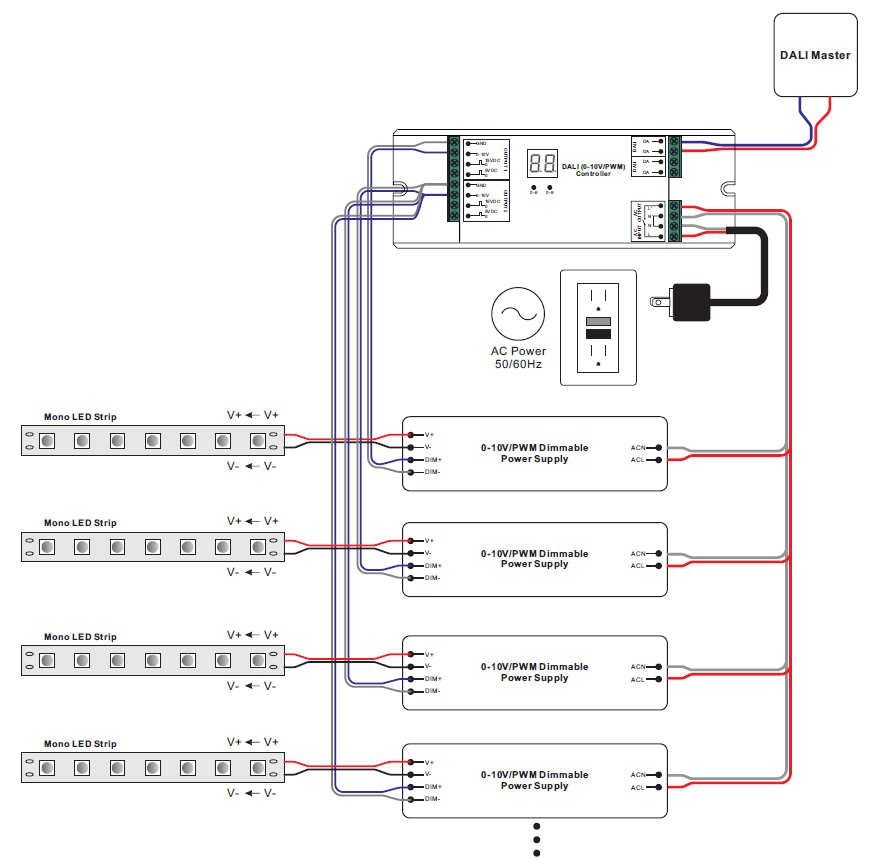

Wiring Diagram
SR-2303(0-10V/PWM) User Manual
