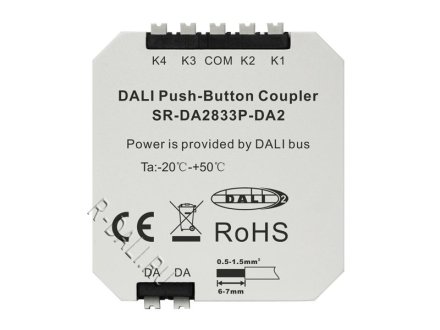

DALI-2 Certified DALI Push Button Coupler SR-DA2833P-DA2

The DALI push button coupler SR-DA2833P-DA2 is industry first DALI-2 certified DALI-2 control device with 4 push buttons according to IEC62386-101, IEC62386-103 and IEC62386-301. This coupler enables to integrate existing push button switches into DALI circuit and convert the switches into DALI input device. The coupler supports 4 push button instances. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.

This DALI push button coupler can be easily installed into existing 55mm wall boxes behind existing push button switches.

Key Features

• DALI-2 Certfied Input Device
• Enables to integrate existing push button switches into DALI circuit and convert the switches into DALI input device
• DALI-2 control device with 4 push buttons
• According to IEC62386-101, IEC62386-103 and IEC62386-301
• Suitable for integration and in combination with DALI-2 compliant central control units
• Multimaster capable, multiple modules can be installed on the DALI- line
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller USB interface
• Can be easily installed into existing 55mm wall boxes behind existing push button switches

Specification

Wiring Diagram

Материалы для скачивания

• SR-DA2833P-DA2 User Manual
