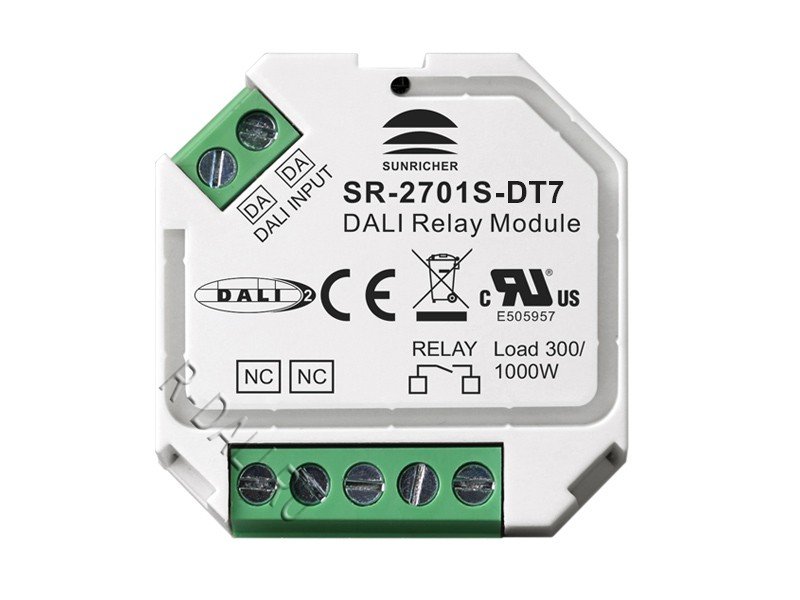

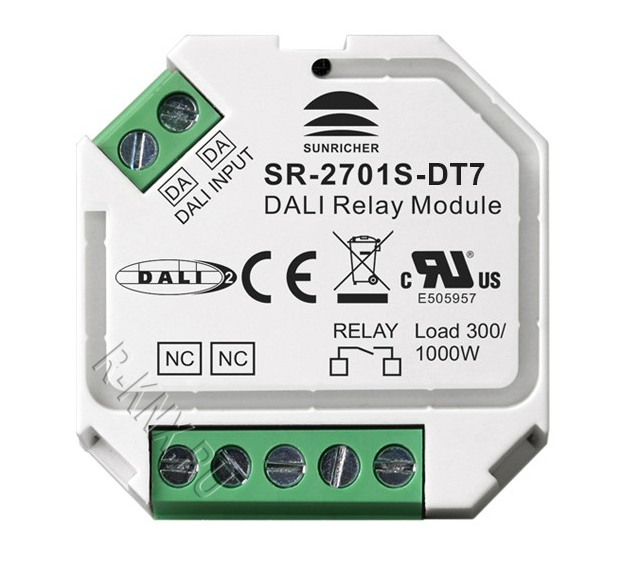

Sunricher, Реле, DALI-2 Relay Module SR-2701S-DT7
Копировать ссылку на товар
Ссылка успешно скопирована!
Артикул: SR-2701S-DT7
Наличие на складах:
| 1) Склад на Бумажном: | 0 шт. |
| 2) Склад удалённый: | 0 шт. |
Наличие: под заказ
ЦЕНА ПО ЗАПРОСУ
The SR-2701S-DT7 is a DALI-2 relay module which is capable of switching both AC and DC loads. The DALI RM enables to integrate existing loads which do not have DALI input into DALI circuit and switch on/off the loads.
Key Features
- DALI-2 relay module
- 100-240VAC power input
- 1 DALI address can be assigned by DALI master controller
- Compatible with DALI and DALI-2 versions
- Compliant to IEC 62386-208
- Loads that do not have a DALI input can therefore be integrated in the DALI circuit
- >1 channel actuator (switch) with DALI-2 input
- Switching voltage 100-240VAC
- Mini Size, easy to be Installed into a standard wall box
- Compliant DALI device type 7
- 5 years warranty
- Waterproof grade: IP20
Specifications
| Part No. | Switching Voltage | Power input | Output Current | Type of contact | DALI Consumption | Dimension (mm) |
|---|---|---|---|---|---|---|
| SR-2701S-DT7 | 100-240VAC | 100-240VAC, 50/60Hz | Resistive load: max.4.3A Capacitive load: max.1.3A Inductive load: max.4.3A | 1 normally closed | <3mA | 45x45.5x20.3 |
Product Dimensions

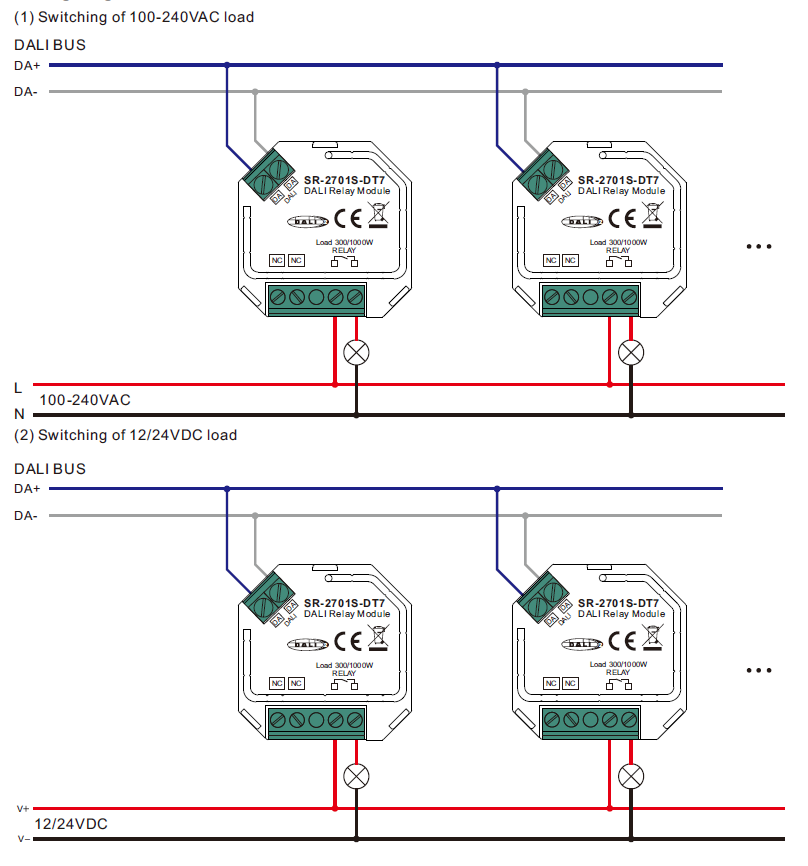

Wiring Diagram
