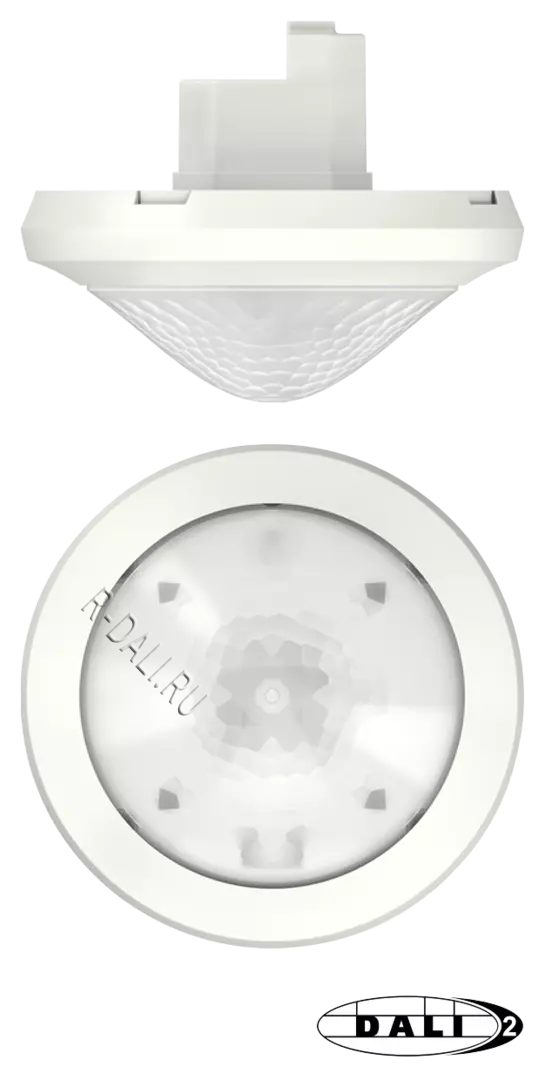

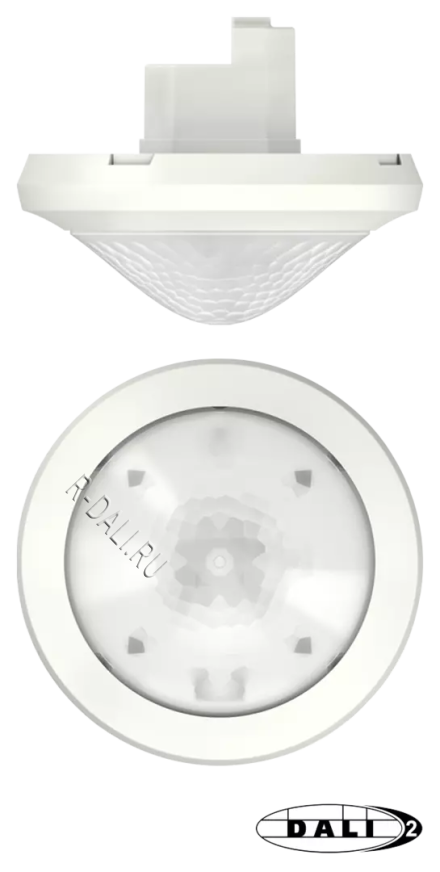

theRonda P360-110 DALI UP WH
Копировать ссылку на товар
Ссылка успешно скопирована!
Артикул: 2080040
Наличие: под заказ
ЦЕНА ПО ЗАПРОСУ
Function description

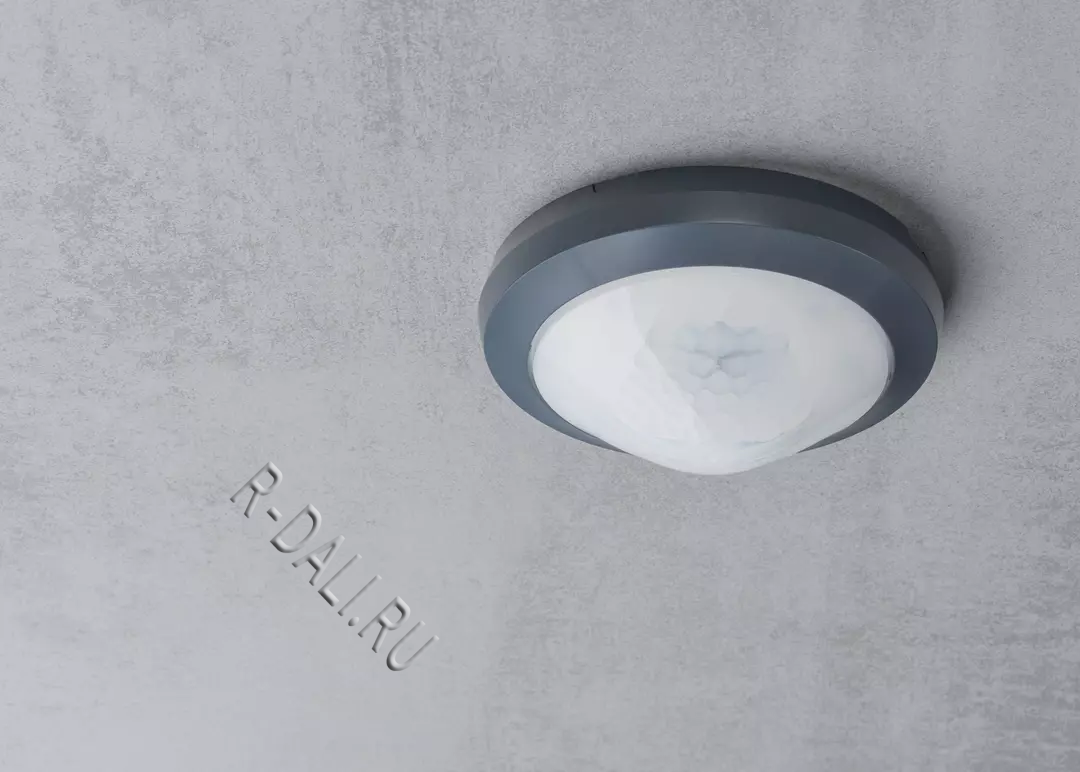

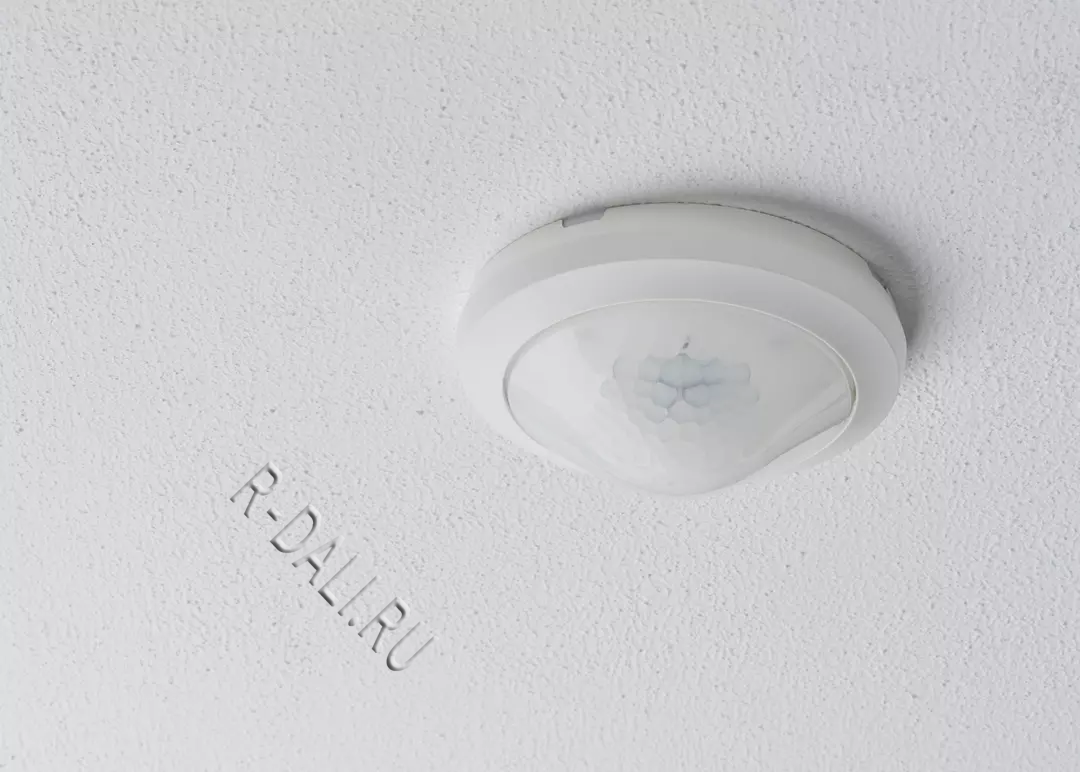

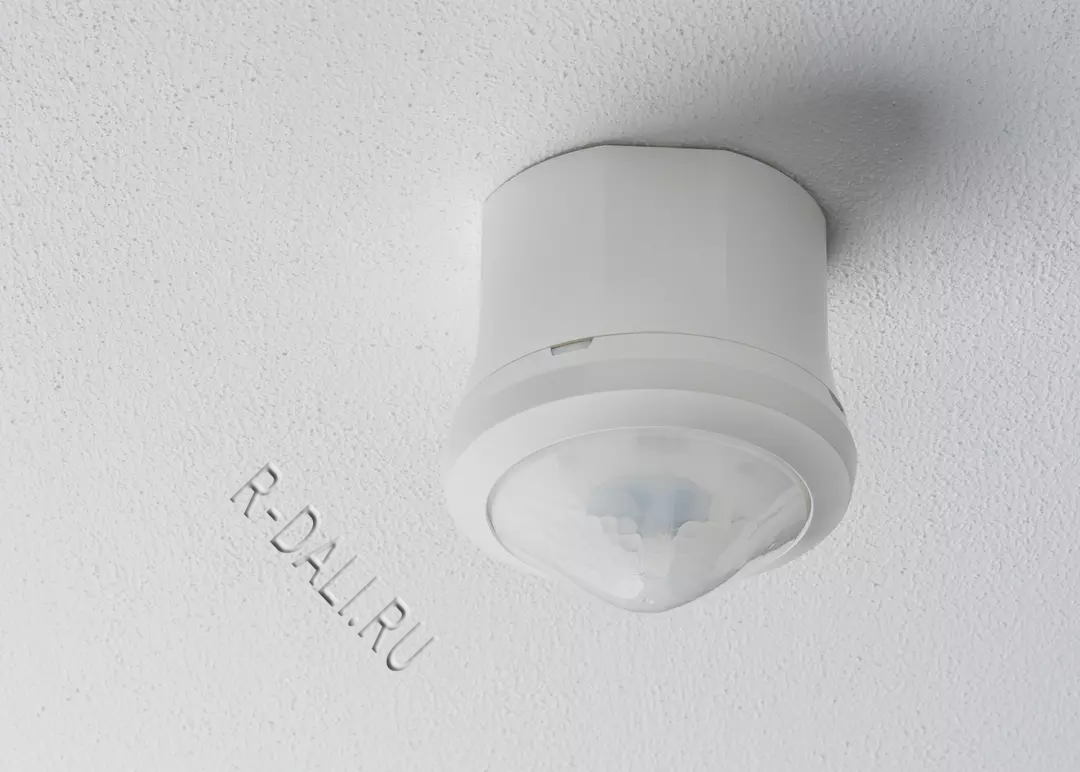

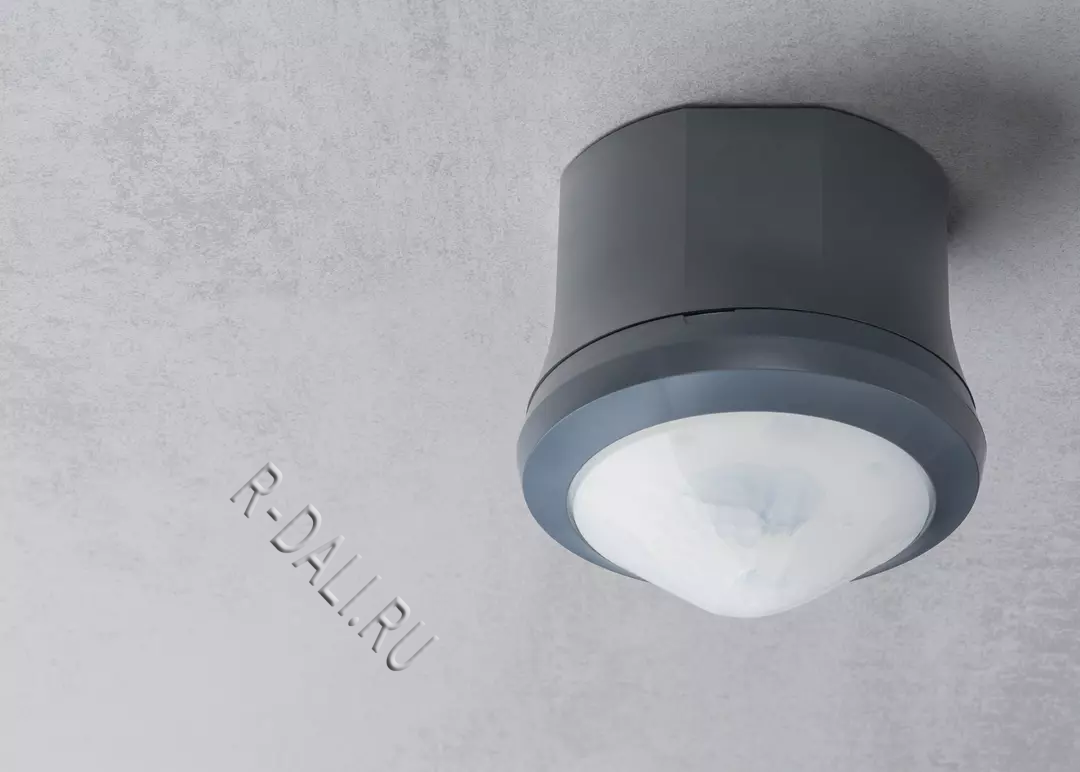

- Passive infra-red presence detector for flush-mounted ceiling installation, DALI-2 certified
- Circular detection area 360°, Ø 24 m, (452 m2) at mounting height 3 m

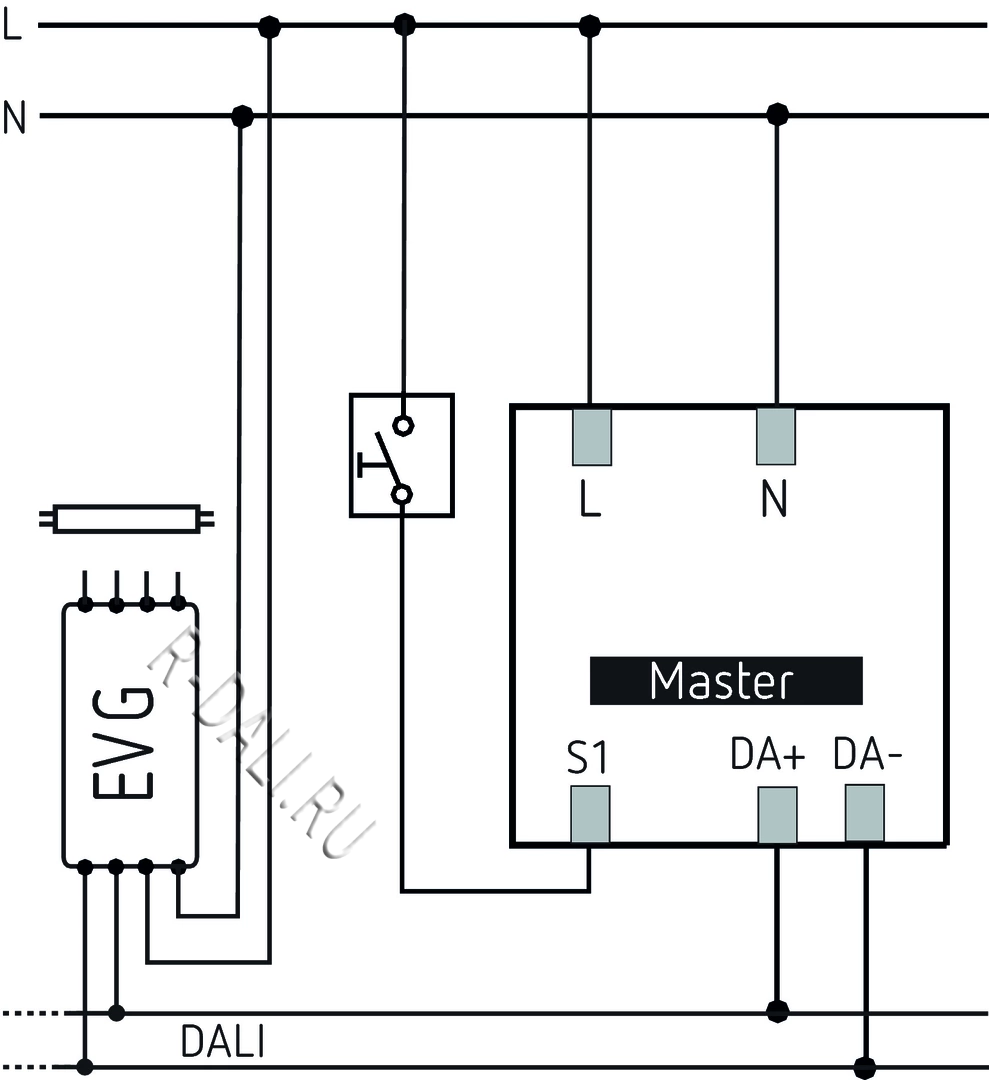

- 1 chanel light DALI-2 in broadcast mode
- DALI-2 technology according to IEC 62386 Parts 101 and 103
- 1 push-button input
- Using of conventional push-buttons for maximum design freedom
- Switch or constant light control mode with stand-by function
- Dimmable lighting in switch mode with stand-by function
- Choice of fully or semi-automatic operation
- Adjustable brightness switching value
- Teach-in function via remote control or push-button
- Setting of room correction factor (Automatic adjustment of brightness measurement)
- Light time delay can be set
- Calibrated 1 channel light measuremen
- Brief-presence
- Self-learning time delay
- Extremely easy setting of energy saving characteristics with the new „eco plus“ function
- Selectable control speed
- Manual override via remote control or pushbutton
- Behavior after push button operation selectable (school / office)
- Test mode light
- Test-Mode presence
- Remote-controllable
- Scenes
- Sensitivity adjustable
- Detection area can be limited using cover clip

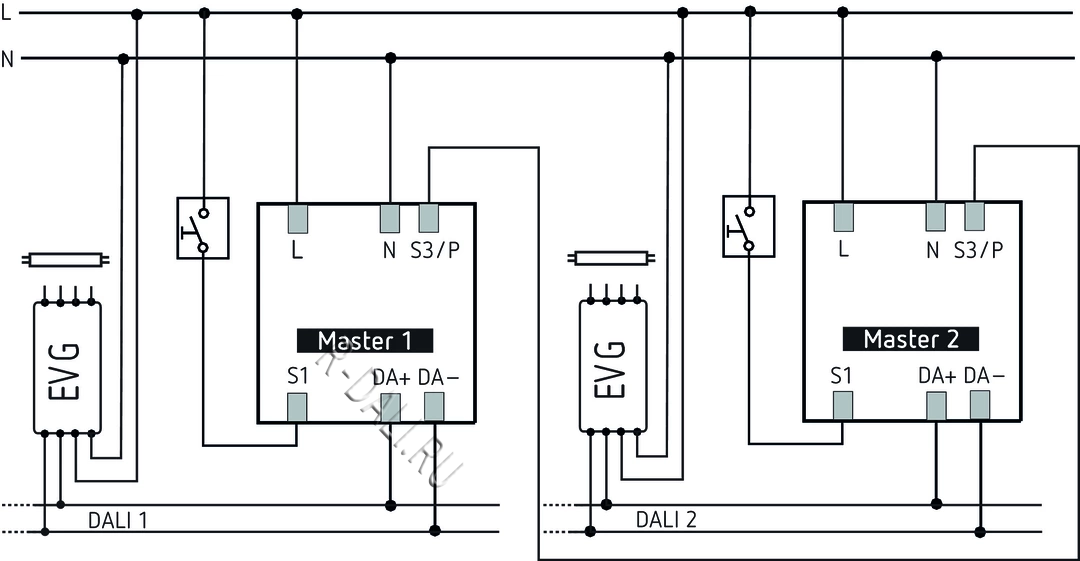

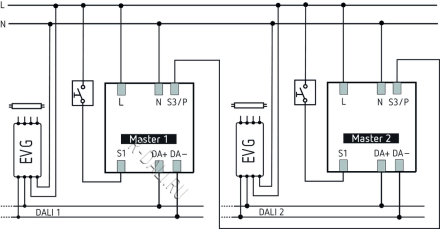

- Extension of detection area via Master/Slave or Master/Master switching
- Optimized handling by installer during assembly, wiring, commissioning
- Teach-in function via remote control or push-button
- Setting of room correction factor (Automatic adjustment of brightness measurement)
- Light time delay can be set
- Calibrated 1 channel light measuremen
- Brief-presence
- Self-learning time delay
- Extremely easy setting of energy saving characteristics with the new „eco plus“ function
- Selectable control speed
- Manual override via remote control or pushbutton
- Behavior after push button operation selectable (school / office)
- Test mode light
- Test-Mode presence
- Remote-controllable
- Scenes
- Sensitivity adjustable
- Detection area can be limited using cover clip
- Extension of detection area via Master/Slave or Master/Master switching
- Optimized handling by installer during assembly, wiring, commissioning
Technical data
| Operating voltage | 110 V AC - 230 V AC |
| Frequency | 50 - 60 Hz |
| Installation height | 2 - 10 m |
| Maximum height | 15 m |
| Minimum height | 1.7 m |
| Installation type | Ceiling installation |
| Colour | White |
| Power consumption | <0.4 W |
| Light measurement | Mixed light measurement |
| Setting range brightness | 10 - 3000 lx |
| Light switch-off delay | 10 s - 60 min |
| Stand-by time light | 0 s - 60 min / on |
| Stand-by brightness | 1 - 25 % |
| Lamp types | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Control output | 100 mA |
| Ouput light | DALI-interface according to IEC SN EN 62 386 for max. 50 DALI devices |
| Max. cable cross section | max. 2 x 2,5 mm² |

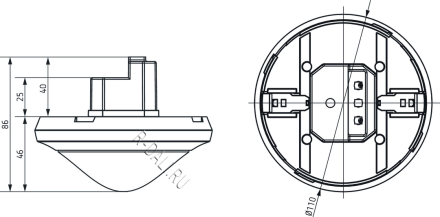

| Size of concealed housing | 55 mm |
| Switching output | DALI |
| Detection range | 452 m² (ø 24 m | 360°) |
| Detection angle | 360° |
| Ambient temperature | -15°C ... 50°C |
| Type of protection | IP 54 (when fitted) |
Detection area
| Mounting height (A) | Sitting (S) | Diagonally (T) | Frontal gehend (R) |
| 2 m | 16 m² | 4.5 m | 380 m² | 22 m | 28 m² | 6 m |
| 2.5 m | 24 m² | 5.5 m | 415 m² | 23 m | 38 m² | 7 m |
| 3 m | 28 m² | 6 m | 452 m² | 24 m | 50 m² | 8 m |
| 3.5 m | 38 m² | 7 m | 452 m² | 24 m | 50 m² | 8 m |
| 6 m | 452 m² | 24 m | 50 m² | 8 m | |
| 10 m | 491 m² | 25 m | 50 m² | 8 m |
