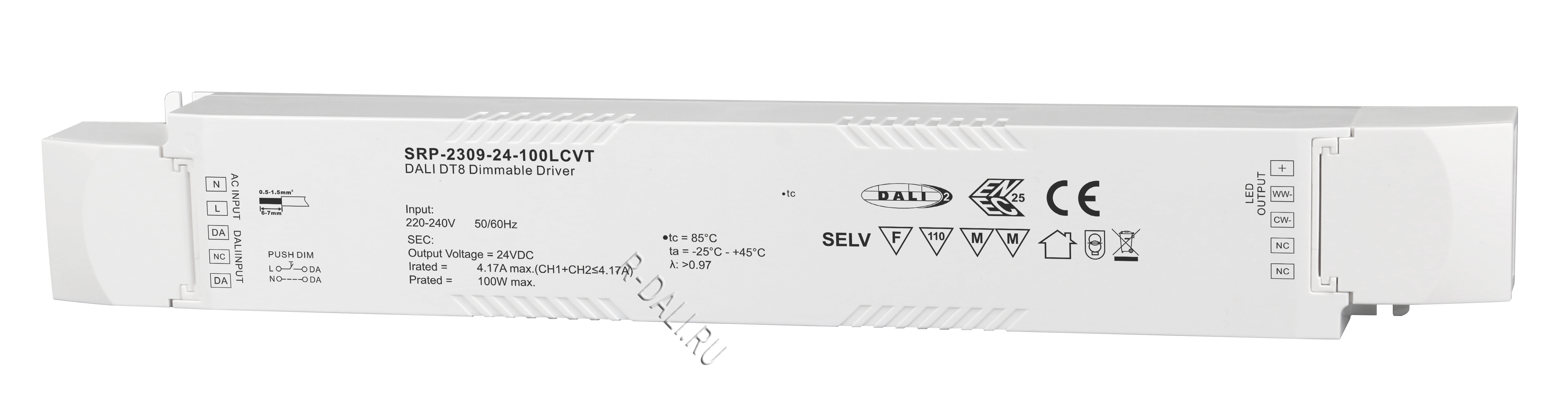

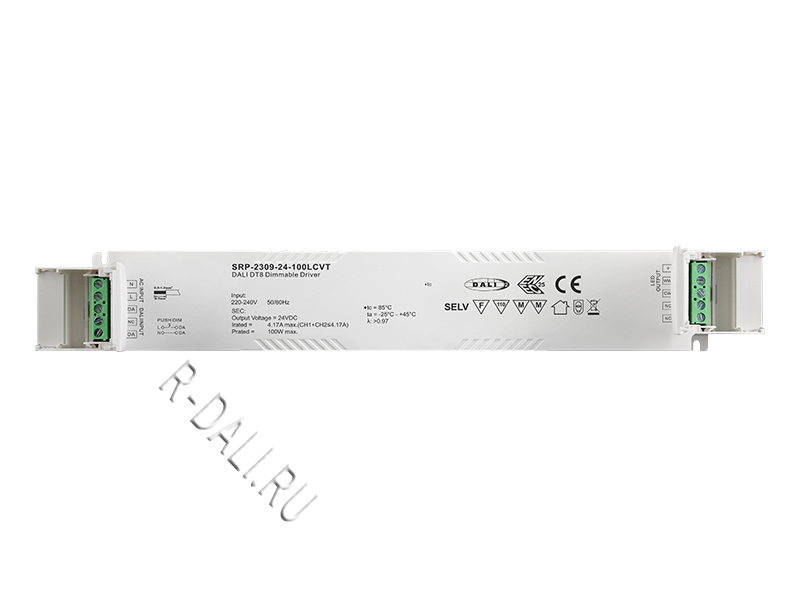

100W 2 Channels 24VDC DALI DT8 LED Constant Voltage Driver SRP-2309-24-100LCVT
Артикул: SRP-2309-24-100LCVT
Наличие: под заказ
This 100W DALI DT8 Dimmable LED Driver is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011, and compatible with universal DALI masters that support DT8 commands. With built-in DALI-2 interface, this DALI DT8 device is controlled via a single DALI address. Moreover, this device is equipped with 2-channel DC 24V constant voltage output and high power factor and efficiency. Its dimming method is PWM, with smooth and deep dimming to 0.1%. Besides, this driver has error report function, and supports DALI DT8 Tc type. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
Key Features
- Dimmable LED driver, max. output power 100W total
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
- Built-in DALI-2 interface, DALI DT8 device
- 2 channels DC 24V constant voltage output
- High power factor and efficiency
- Built-in DALI interface, DALI DT8 device, each device is controlled via a single DALI address
- PWM dimming, smooth and deep dimming to 0.1%
- Compatible with universal DALI masters that support DT8 commands
- Error report function, support DALI DT8 Tc type
- IP20 rating, suitable for indoor LED lighting applications
- 5 years warranty
Specifications
| Part No. | Input Voltage | Rated Power | LED Channel | DC Voltage | Max. Current | Dimension (L*W*H) |
|---|---|---|---|---|---|---|
| SRP-2309-24-100LCVT | 220-240VAC | Max. 100W | 2 Channels | 24V DC | Max. 4.17A（CH1+CH2≤4.17A） | 306.6*43*30 mm |
Product Dimension

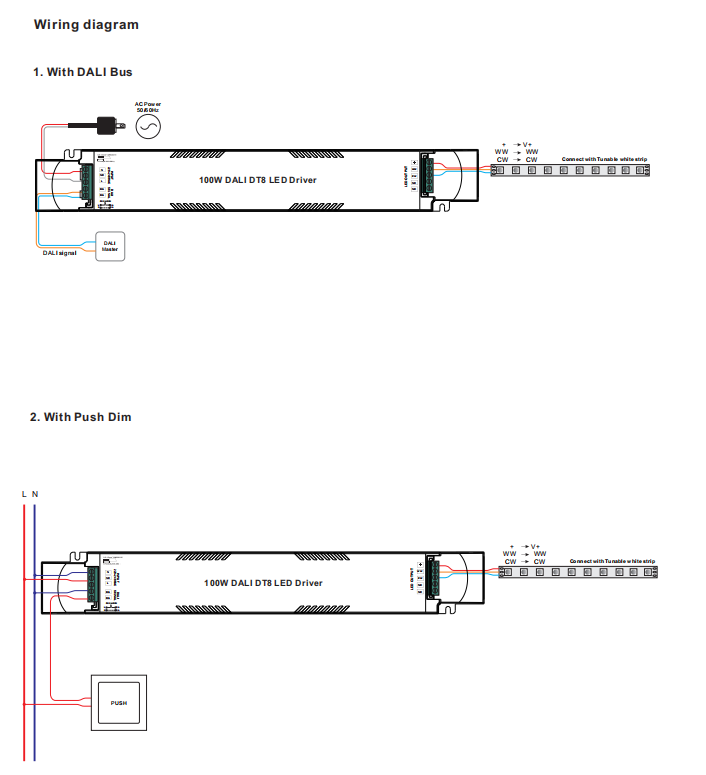

Wiring Diagram
SRP-2309-24-100LCVT User Manual.pdf
