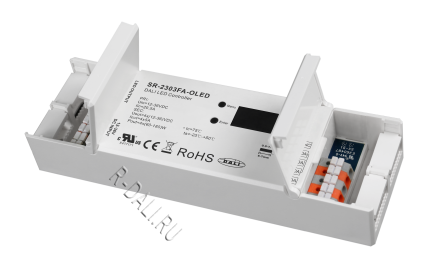

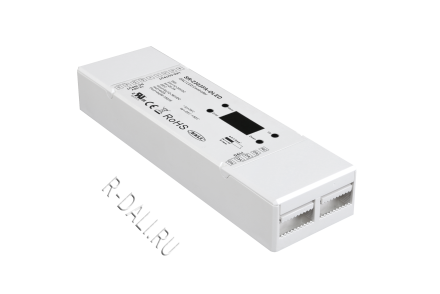

DALI Certified DT6 Dimmer with Built-in DALI Master Function SR-2303FA-OLED
Артикул: SR-2303FA-OLED
Наличие: под заказ
SR-2303FA-OLED is the world first DALI certified DT6 dimmer with built-in DALI master function and OLED display for visible manual configuration. The LED dimmer is designed with 4 PWM outputs, and 4 outputs can be addressable and grouped individually or together. It enables to predefine and recall total 16 DALI scenes to 4 outputs individually or together. Logarithmic/linear dimming curve can be set to match sensitivity of human eyes. PWM output frequency can be set from 250Hz-30KHz which ensures ultra smooth dimming to 0.1% for specific applications.
It enables to set a Min. level for dimming between this level to Max. level. Output level of 4 PWM outputs can be set individually. DALI default parameters such as fade time, fade rate, power on level, system failure level can be set for 4 PWM outputs individually.
Key Features
- DALI Certified DT6 Dimmer, 4 Channels PWM Output
- TUV CE certified
- World 1st DALI Device with Built-in DALI Master Function
- OLED Display Interface , Easy & Fast Installation
- No DALI Master Required
- Cost & Time Saving than DALI USB Configuration
- In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
- DALI Address Quantity 1-4 Settable for 4 PWM outputs
- Enable to Address & Group 4 PWM outputs Individually
- Enable to Predefine & Recall 16 Scenes to 4 PWM outputs Individually
- Logarithmic/Linear Dimming Curve Settable, Match Sensitivity of Human Eyes
- Up to 30KHz PWM Frequency Settable, ultra smooth dimming to 0.1%
- Enable to set a Min. Level for Dimming between This Level to Max. Level
- Enable to Manually set Output Level for 4 PWM Outputs Individually
- Enable to set Fade Time, Power On Level, System Failure Level for 4 Outputs Individually
- Compatible with DALI System from Osram, Philips, Tridonic, Helvar, Lutron etc.
Specifications
| Part No. | Input Voltage | Output Current | Output Power | DALI Consumption | Output type | Dimension (mm) |
|---|---|---|---|---|---|---|
| SR-2303FA-OLED | 12-36VDC | 4CH, 5A/CH | 240-720W | < 2mA | Constant Voltage | 53.4*170*28 |
Product Dimension

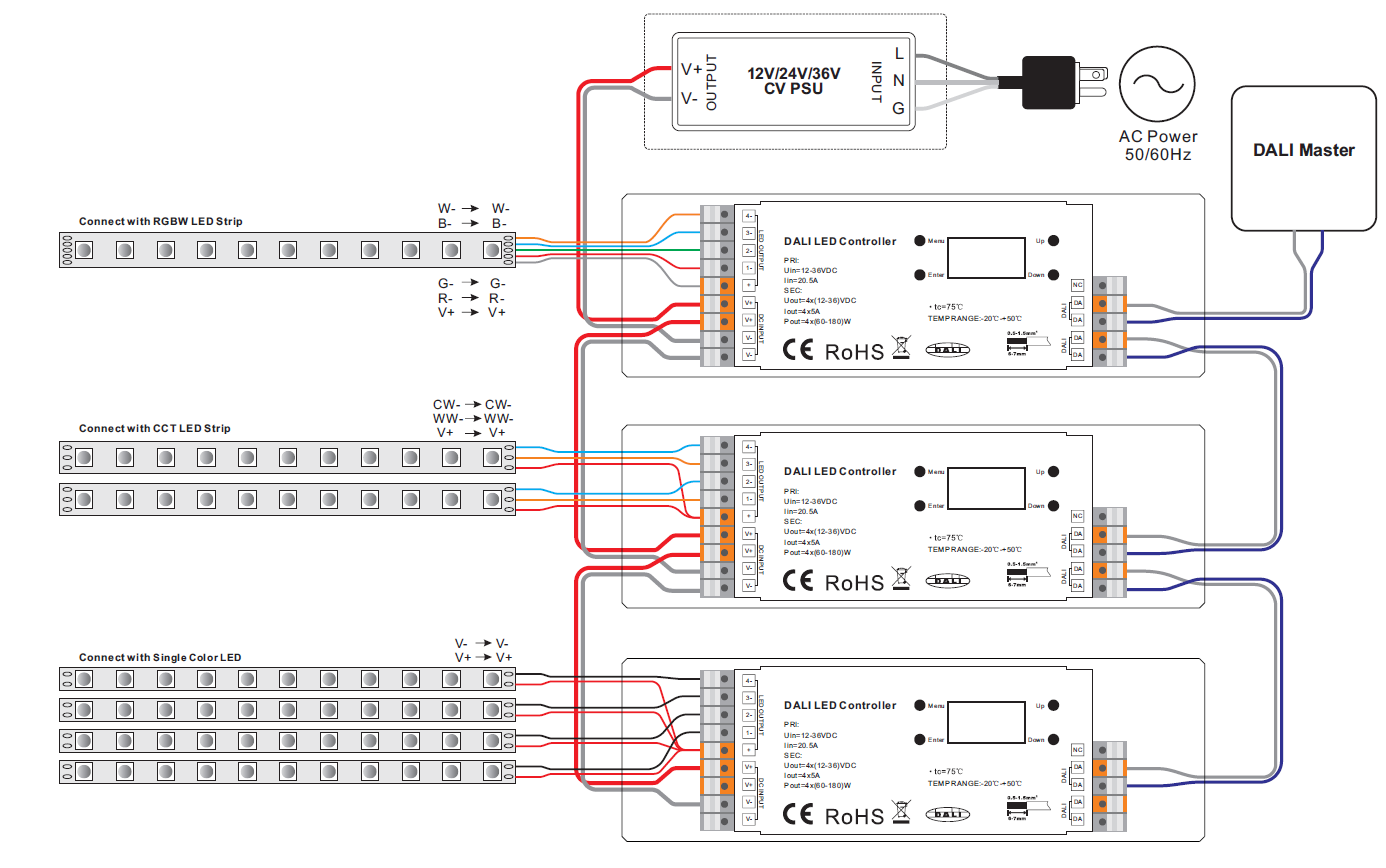

Wiring Diagram
SR-2303FA-OLED User Manual
