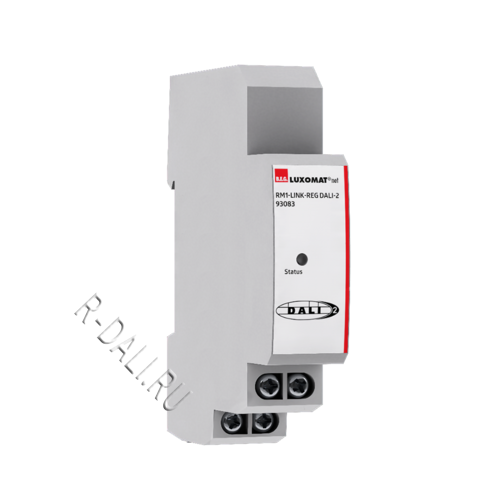

RM1-LINK-REG DALI-2
Артикул: 93083
Наличие: под заказ
Description
DIN-rail DALI relay module with 1 switching channel
High-output and potential-free contact for loads with high inrush current
Integrated application controller with different operating modes
Operating modes: Standard, Cut-off, HVAC, Impulse, Alarm
Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT®net DALI-LINK
This article is a component of a lighting control system from B.E.G., which supports the use of DALI control gear (luminaires, relays) from other manufacturers
The product can be used across manufacturers in accordance with the given DALI-2 product properties
Additional system components (hardware) are available from B.E.G.
Additional free software is available from B.E.G.
Features
| Designation | Value |
|---|---|
| Voltage: | via DALI Bus, max. 22.5 V DC |

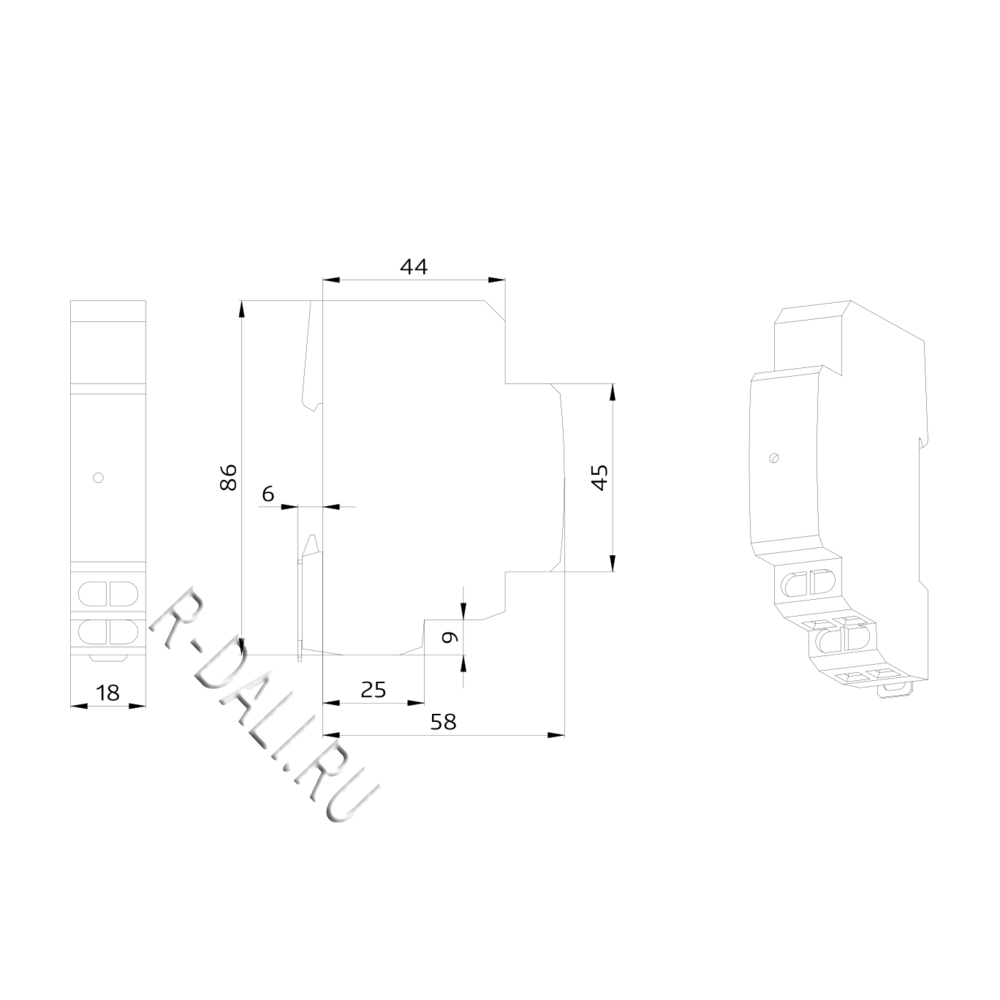

| Dimensions: | 85 x 18 x 63 mm (1 TE) |
| Settings: | PBM-DALI-LINK-4W-BLE + Smartphone with DALI-LINK App (iOS / Android) |
| Typ. power input: | 5 mA |
| Degree / class of protection: | IP20 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | polycarbonate, UV-resistant |
| Material color: | white |
Relay
| Designation | Value |
|---|---|
| Switching power: | 3000 W, cos φ = 1 1500 VA, cos φ = 0.5 |
| Type of contact (k): | µ-contact, NO contact |
| Follow-up time: | 1 min – 150 min (Cut-off and HVAC mode only) |
