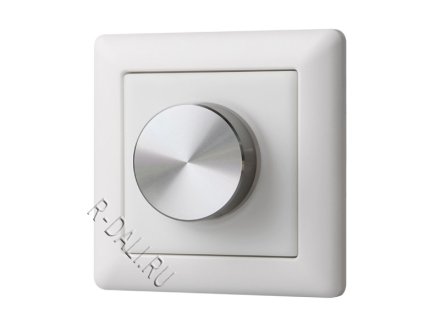

Plastic Frame with Back Lighting DT6 Rotary DALI Group Controller SR-2410RG-DIM-PL

DT6 Rotary DALI Group Controller SR-2410RG-DIM-PL is a single color DALI controller that controls 1 group address. The group of devices on DALI circuit to be controlled can be assigned manually by rotary switch on the back. All DALI devices on the circuit can be controlled by the panel through broadcast. The DALI panel enables to switch on/off and increase/decrease light intensity of the group. The DALI controller enables to set a minimum output level and dim between this level to max. level. It is easy to use and no configuration by DALI USB interface required. The DALI controller can be compatible with all universal DALI master controllers.

Key Features

• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
• DALI bus powered, one channel DALI bus can install multiple dimming controllers.
• No external power supply which is provided by DALI bus. Consumption current is 4mA.
• Enable to select and control 1 DALI group
• Enable to control all devices on the DALI circuit through broadcast

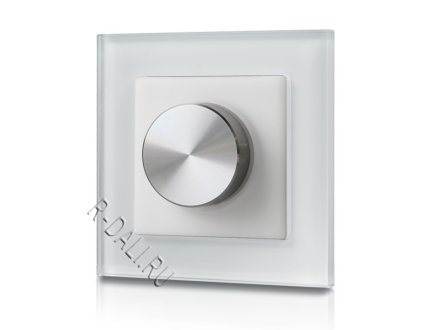

• Plastic or glass front plate optional
• Backlighting design to indicate the dimming status

Specifications

Wiring Diagram
