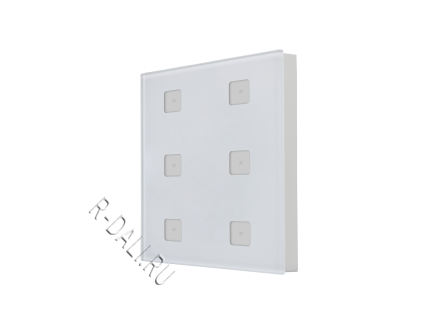

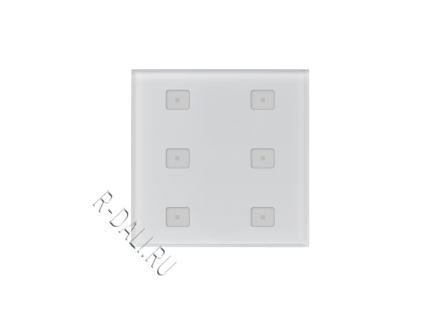

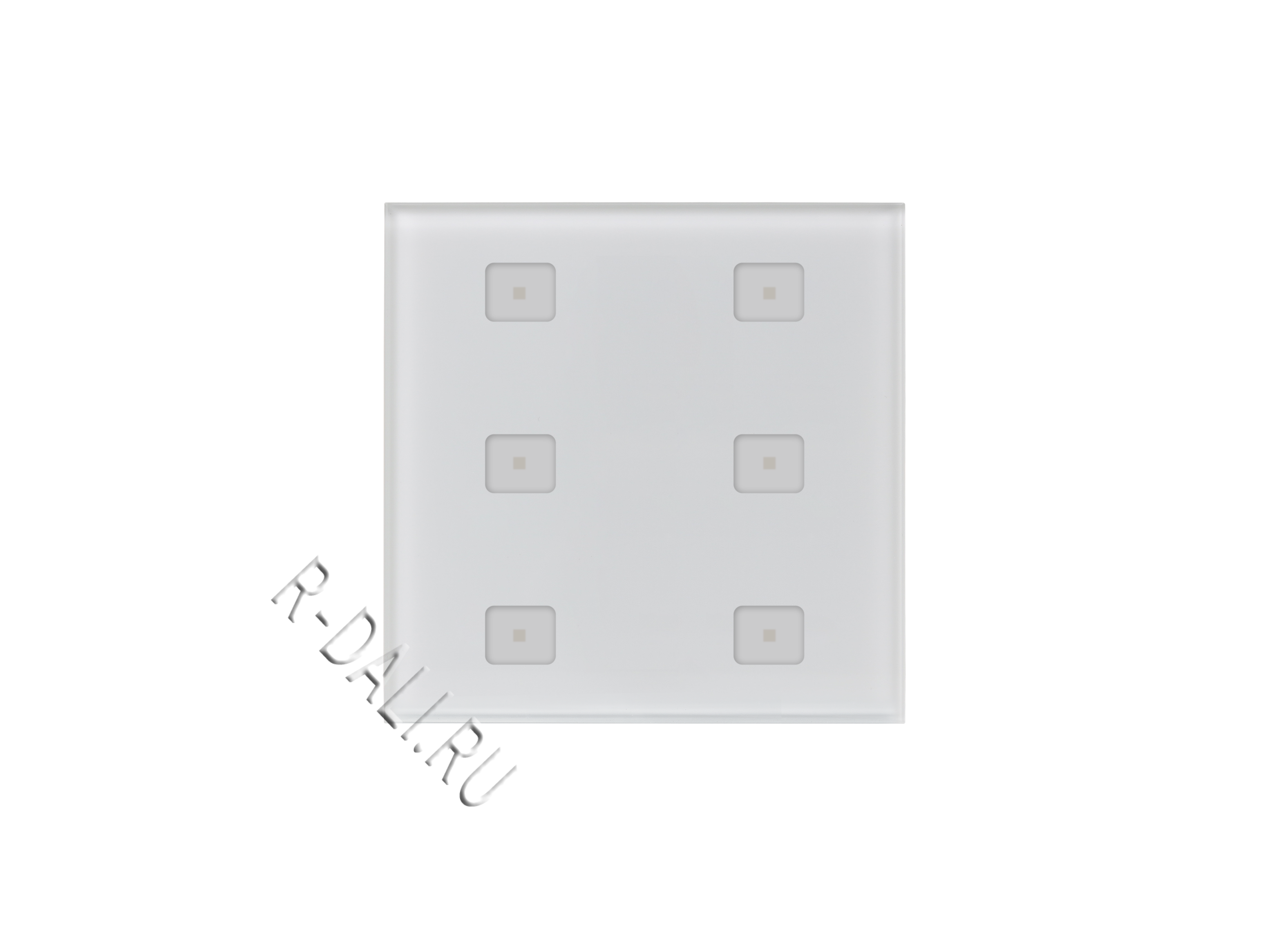

6-Key DALI Wall Switch Touch Panel SR-2422T6-DA2
Артикул: SR-2422T6-DA2
Наличие: под заказ
This 6-Key DALI Wall Switch Touch Panel is a DALI-2 control device with 6 touch buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. This device supports feedback functionality, provides 12 LEDs, and is suitable for integration and in combination with DALI-2 compliant central control units. It is multimaster capable, and its multiple modules allow it to be installed on the DALI- line. Moreover, this panel is powered by DALI bus, and no extra power supply is required. It can also be configured via DALI-2 compliant central controller USB interface, and is compatible with universal 55mm frames.
Key Features
• DALI-2 control device with 6 touch buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
• Supports feedback functionality, provides 6 LEDs
• Suitable for integration and in combination with DALI-2 compliant central control units
• Multimaster capable, multiple modules can be installed on the DALI- line
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller USB interface
• Compatible with universal 55mm frames
Specifications
| Input Type | Input Voltage Range | Typ. Current Consumption | Max. Current Consumption | Number of Instance | Number of Feedback |
|---|---|---|---|---|---|
| DALI | 12VDC - 22.5VDC | 2mA | 10mA | 6 programmable touch buttons | 12 programmable LEDs |
Product Dimension

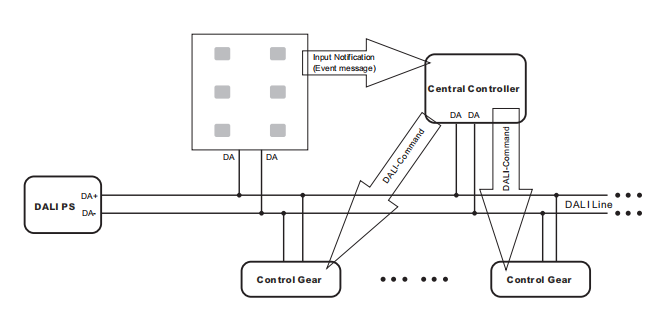

Wiring Diagram
SR-2422T6-DA2 User Manual.pdf
