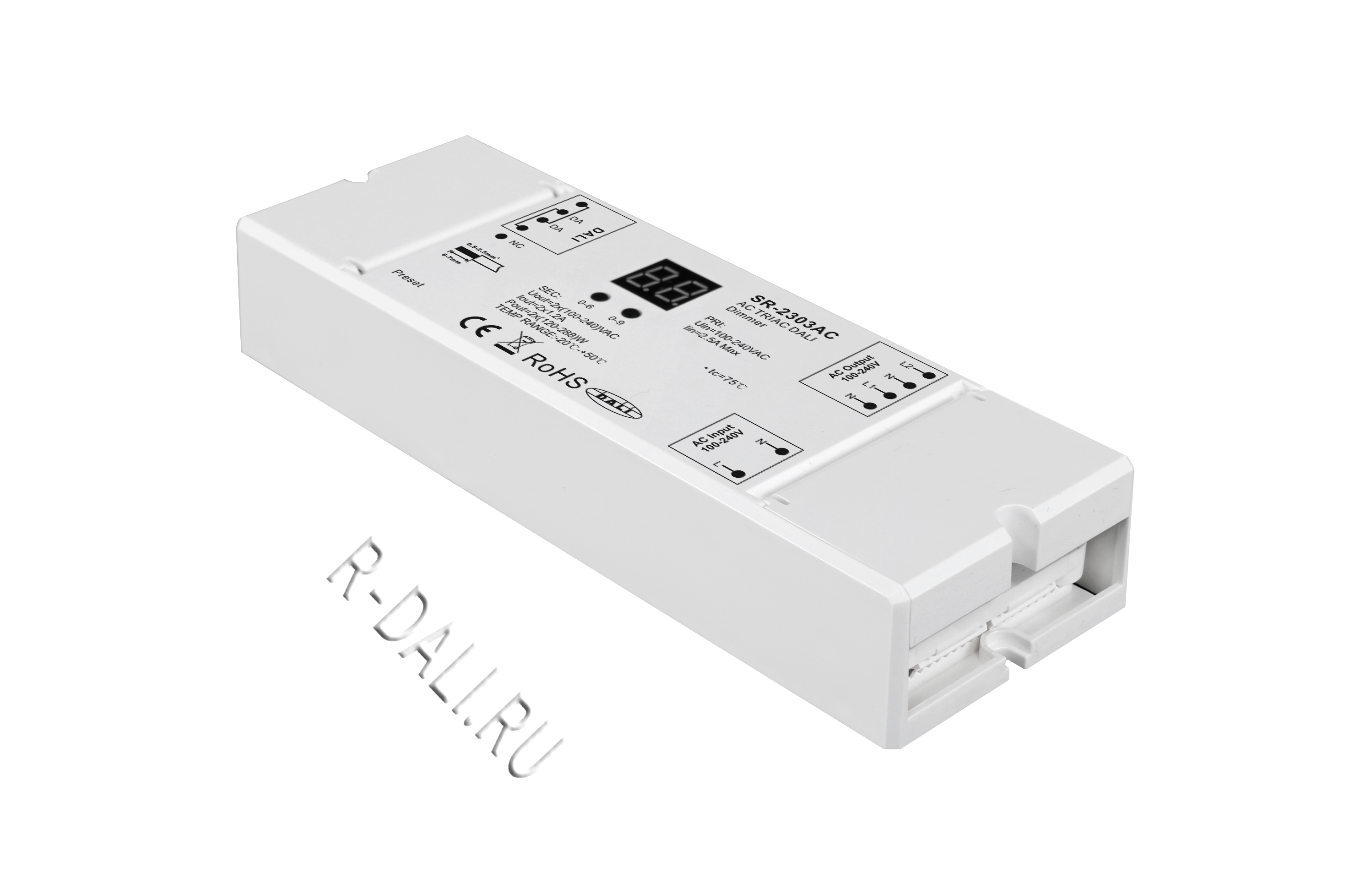

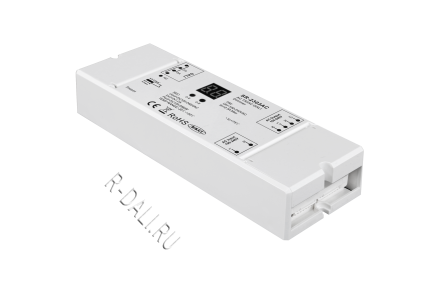

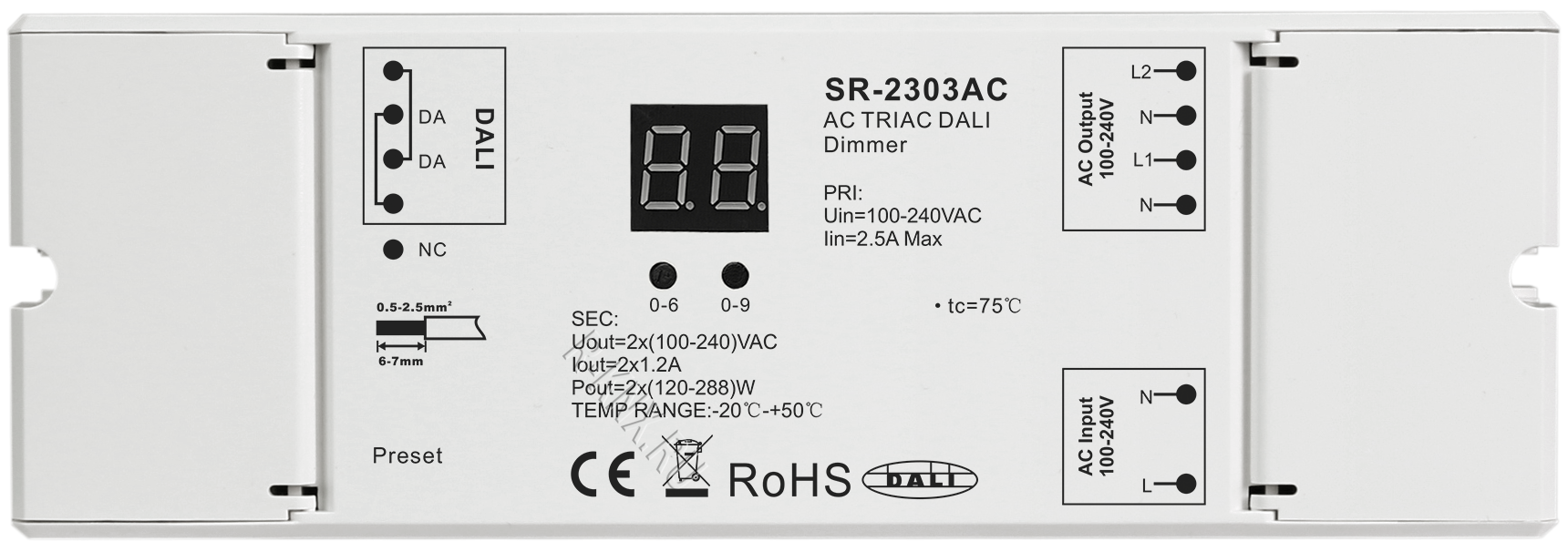

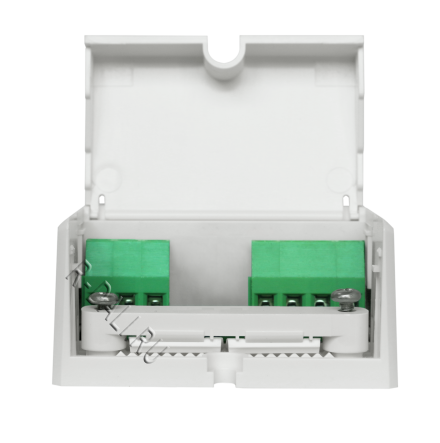

2 Channels AC Triac DALI Dimmer SR-2303AC

The SR-2303AC is a Triac DALI dimmer designed with 100-240VAC input and 100-240VAC output and safe and reliable full isolation design to dim and switch single color LED lamps, traditional incandescent and halogen lights. It is also compatible with universal triac dimmable LED drivers. The DALI dimmer is designed with DALI control interface with digital numeric digital display to set and show DALI address freely. The AC dimmer is trailing edge dimming (reverse-phase control) and comes with 2 channels and maximum 1.2A per channel output. 1/2 DALI addresses can be settable to control 2 output channels synchronously or separately. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The DALI dimmer can be compatible with universal DALI master controllers.

Key Features

• DALI certified
• TUV CE certified
• Safe and reliable full isolation design
• 100-240VAC input and 100-240VAC output
• 2 channel, maximum 1.2A per channel output
• DALI control interface with digital numeric digital display to set and show DALI address freely
• 1/2 DALI addresses can be settable to control 2 output channels synchronously or separately
• Trailing edge dimming (reverse-phase control)
• Great compatibility with universal DALI master controllers
• Innovative minimum brightness setting function
• To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights
• Compatible with universal triac dimmable LED drivers

Specifications

Compatible DALI Masters

Wiring Diagram with Dimmable LED Light

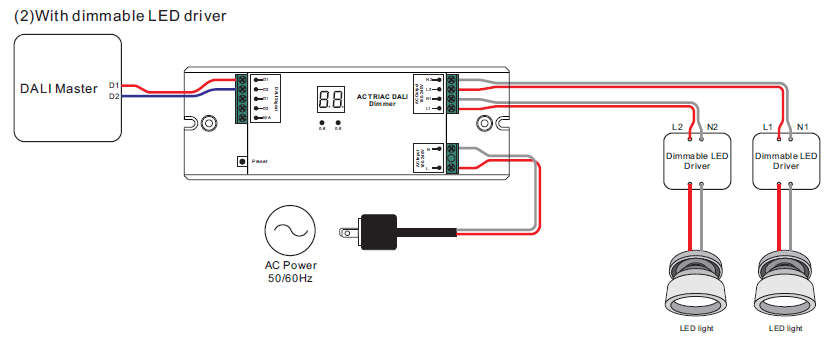

Wiring Diagram with Dimmable LED Driver

Материалы для скачивания

• Руководство по эксплуатации EN (PDF)
• SR-2303AC User Manual
