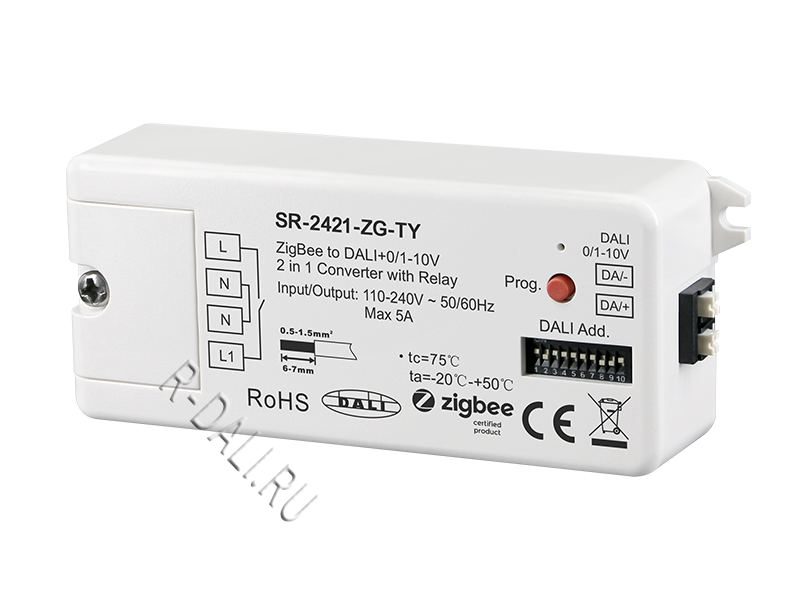

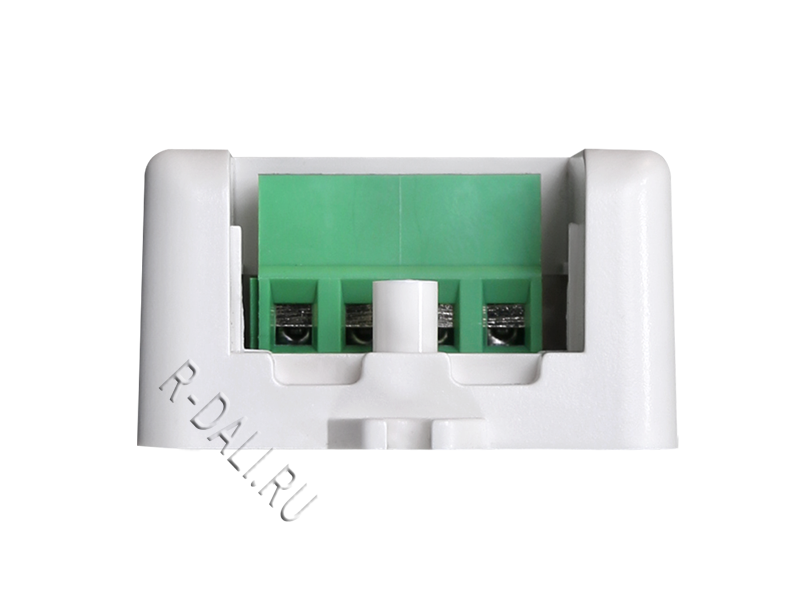

Sunricher, Шлюз, Zigbee to DALI+0/1-10V 2 in 1 Converter SR-2421-ZG-TY

Based on Zigbee 3.0, this Zigbee to DALI+0/1-10V 2 in 1 converter is compatible with Tuya Zigbee gateway and controlled through Tuya Smart App. With Zigbee signal input, DALI signal output to DALI line or 0/1-10V signal output and 110-240VAC power input, this converter can supply control current to up to 25 DALI control gears. With max. 5A relay output and metering function, DALI signal or 1-10V signal output can be selectable by DIP switch. With built-in DALI bus power supply, no extra DALI bus PS is required. Moreover, with max. 50mA DALI bus power current output, DALI DT6 or DT8 device type is selectable by DIP switch under DALI mode. This device’s color control is in accordance with DALI specifications of Device Type 8, with several color type, such as Tc, XY coordinates and RGBW selectable by DIP switches. Besides, DALI address control mode or group control mode is selectable by DIP switch. This device enables to select the DALI address (00-63) to be controlled by DIP switches, enables to select the DALI group (0-15) to be controlled by DIP switches, and enables to control 1 DALI Group of devices or 1 DALI Address on DALI line, enables to control all devices on DALI line via broadcast, with waterproof grade of IP20.

Key Features

• Zigbee to DALI+0/1-10V 2 in 1 converter based on zigbee 3.0
• Zigbee signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input
• With max. 5A relay output and metering function
• Compatible with Tuya Zigbee gateway and controlled through Tuya Smart App
• DALI signal or 1-10V signal output selectable by DIP switch
• Built-in DALI bus power supply, no extra DALI bus PS required
• With max. 50mA DALI bus power current output
• To supply control current to up to 25 DALI control gears
• DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
• Color control according to DALI specifications of Device Type 8,
• Color type: Tc, XY coordinates, RGBW selectable by DIP switches
• DALI address control mode or group control mode selectable by DIP switch
• Enables to select the DALI address (00-63) to be controlled by DIP switches
• Enables to select the DALI group (0-15) to be controlled by DIP switches
• Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
• Enable to control all devices on DALI line via broadcast
• Waterproof grade: IP20

Specifications

Function Introduction

Wiring Diagram

Материалы для скачивания

• SR-2421-ZG-TY User Manual
