240W 24V 4 Channels DALI DT8 Constant Voltage NFC LED Driver SRP-2309N-24-240LCVF

This 240W DALI-2 DT8 LED driver offers 4-channel 24V constant voltage output for precise control of brightness and color temperature. Fully compliant with IEC 62386-101/102/207/209, it supports NFC programming for address, group, and scene configuration. Housed in a Class II fully isolated plastic case, it ensures high efficiency, smooth Amplitude/CCR dimming, and compatibility with all DT8 DALI masters. Features include built-in DALI-251/252/253 data, error reporting, and robust performance for advanced lighting applications.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver. Max. output power 240W
• 4 channels DC 24V constant voltage output
• DALI Address/Group/Scene setting via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• Capable of ON/OFF, brightness, color temperature control
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT8 commands
• DALI-251/252/253 Enabled, DALI data inside. Error report function
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty

 Specifications

Product Dimension

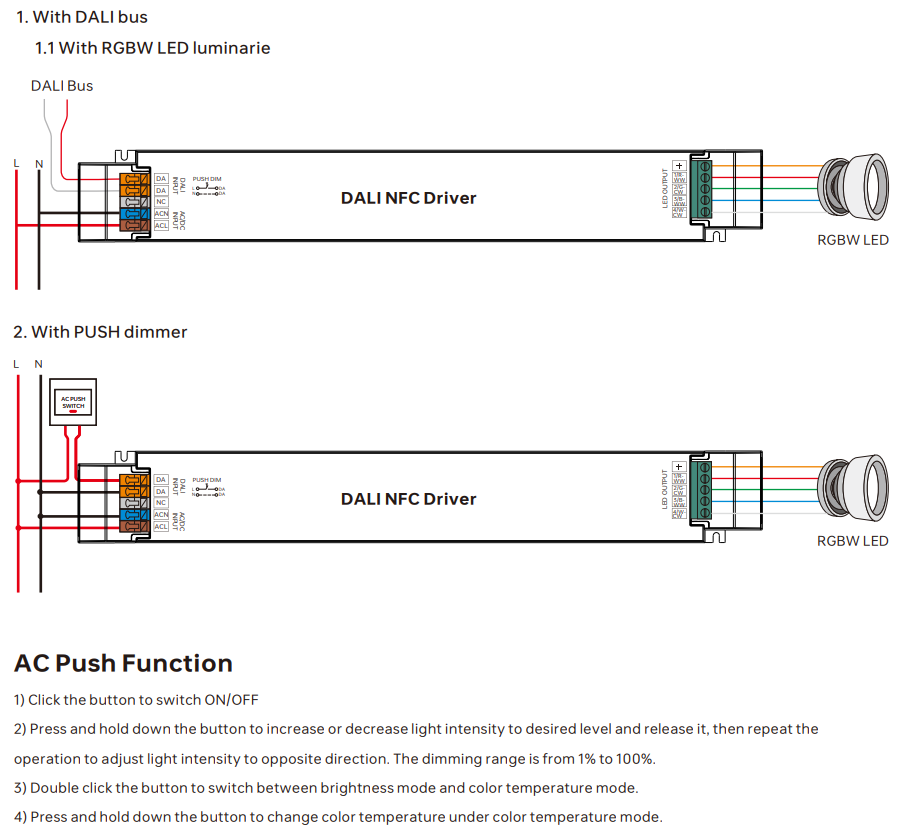

Wiring Diagram

Материалы для скачивания

• SRP-2309N-24-240LCVF User Manual
