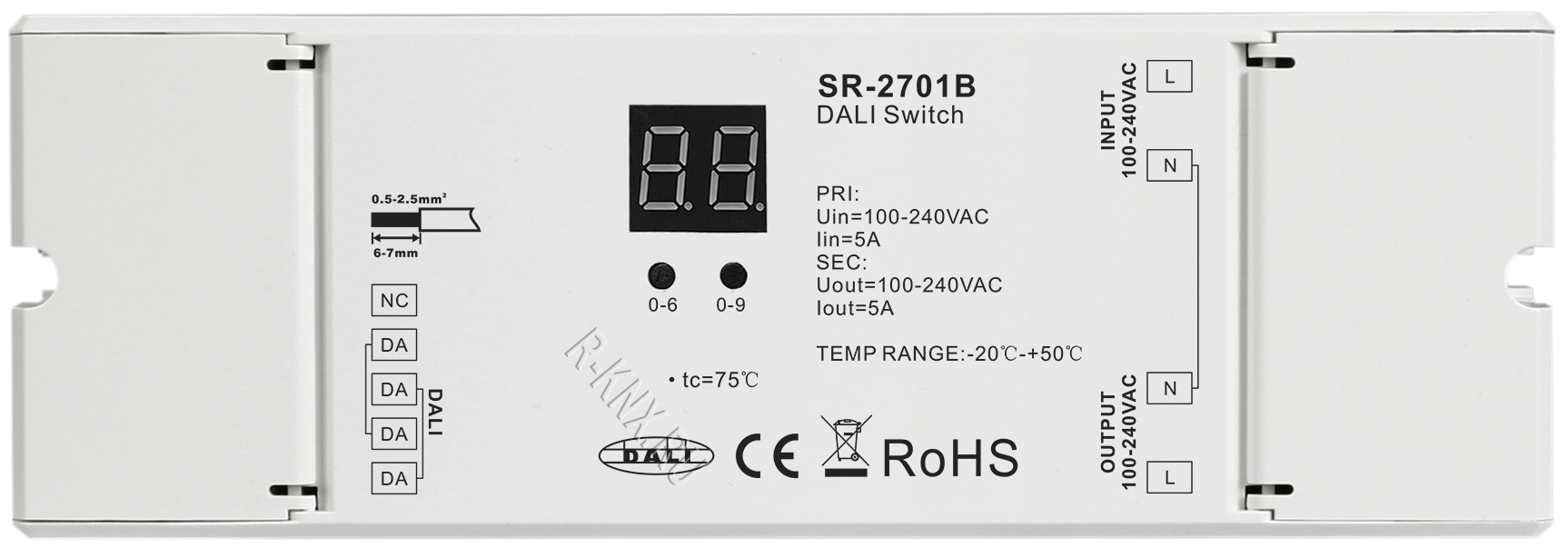

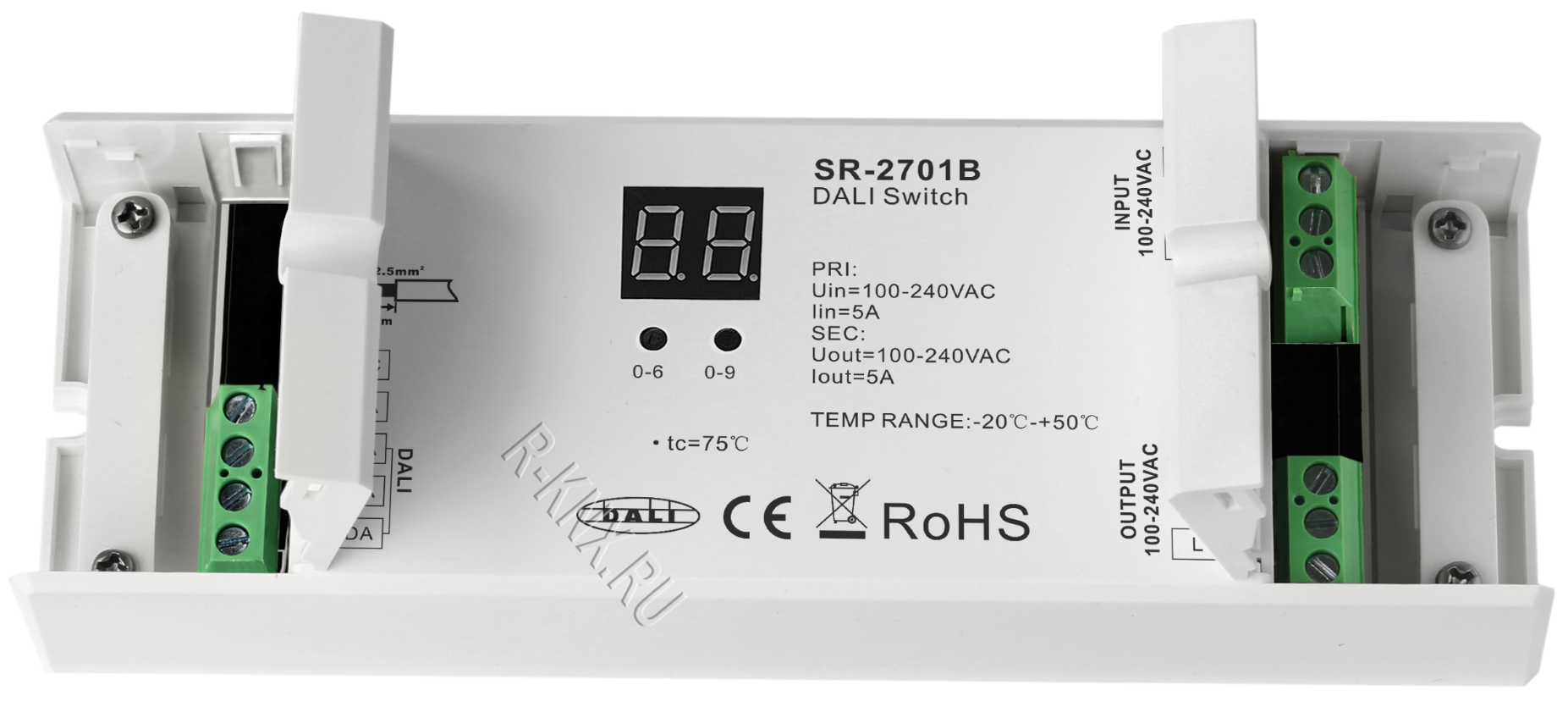

AC DALI Switch SR-2701B

The DALI switch SR-2701B is a DALI controller that complies with standard DALI protocol and can be compatible with DALI products from other international corporations. The DALI switch is designed with AC inout and AC output. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. The DALI master device can control power on/off to cater for unwanted dimming lighting system.

Key Features

• 100-240VAC input and output.
• In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and can be compatible with DALI products from other international incorporations.
• DALI address can be manually assigned and shown in numeric digital display or automatically assigned by master controller.
• 1 DALI address for 1 channel output.
• DALI master device can control power on/off to cater for unwanted dimming lighting system.
• AC items available for AC systems respectively.

Specifications

Product Dimension

Wiring Diagram

Материалы для скачивания

• Руководство по эксплуатации EN (PDF)
• SR-2701B User Manual
