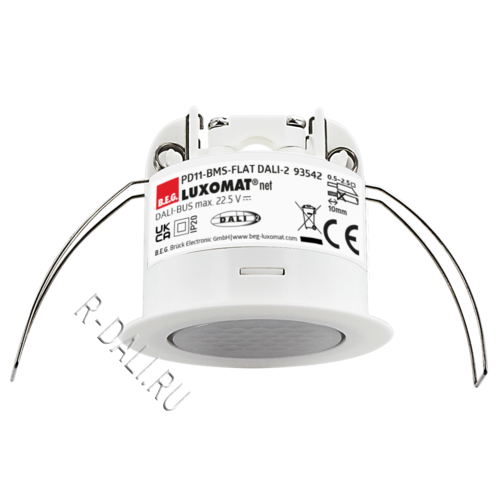

PD11-BMS-FLAT-FC DALI-2
Артикул: 93542
Наличие: под заказ
Description
Low profile DALI-2 multisensor (input device) having a visible height of only 0.85 mm
DALI-2 certified product
Powered via DALI bus
DALI multimaster technology according to IEC 62386 part 103
Instance 0 provides information regarding occupancy and movement for the DALI-Bus according to IEC 62386 part 303
Instance 1 provides LUX values for the DALI-Bus according to IEC 62386 part 304
Parameterisation is possible via mandatory Multimaster-Application-Controller of any manufacturer. This controller must support IEC 62386 parts 101/103/303/304.
Spring clips for quick and easy installation in suspended ceilings
Includes blinds and clamp ring for installation into light fittings
With accessories for flush-mounting in ceiling and exposed concrete
Individual adaption of the PIR sensor sensitivity
Status LEDs can be activated / deactivated
Application examples:
underground car parks, entrance halls, corridors/hallways, staircases, small offices, open-plan offices, conference rooms
Features
| Designation | Value |
|---|---|
| Voltage: | via DALI Bus, max. 22.5 V DC |

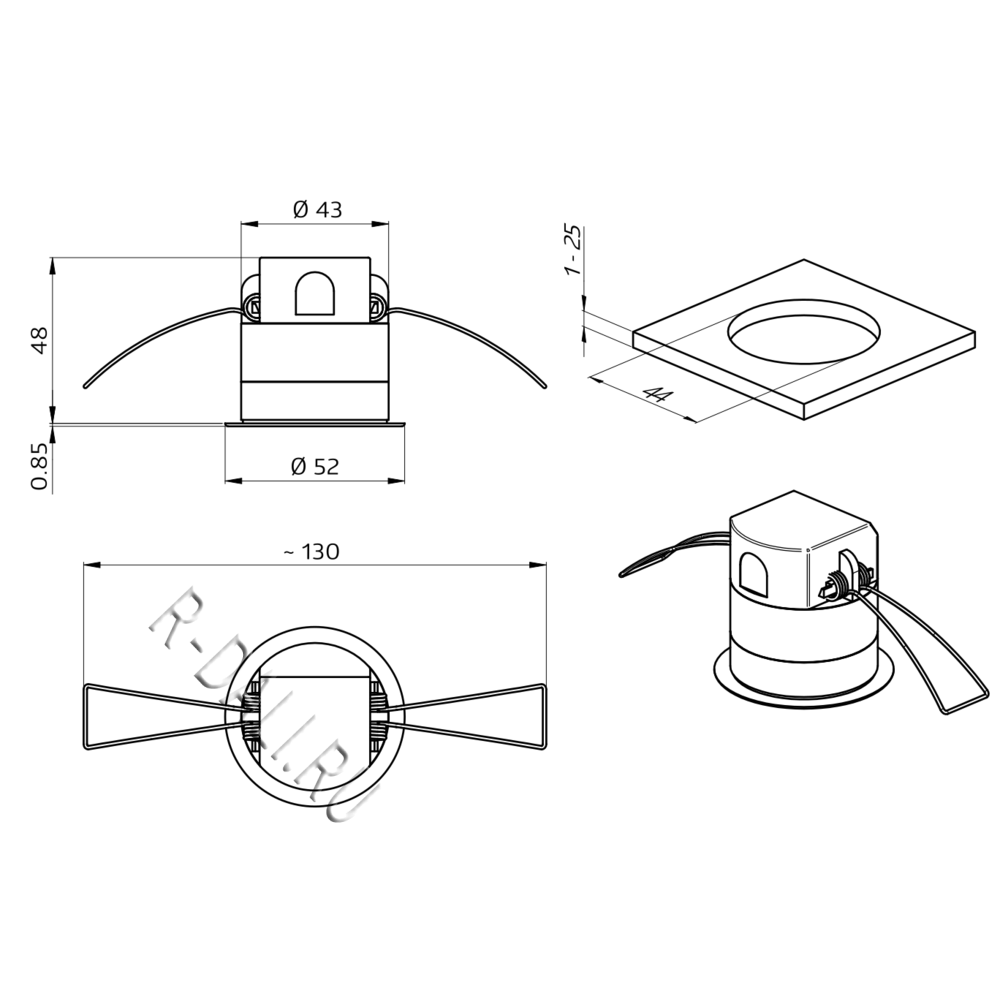

| Dimensions: | Ø 52 x 48 mm |
| Settings: | via DALI-Bus and application which supports DALI multisensors according to IEC62386, parts 101, 103, 303 and 304 |
| Typ. power input: | 7 mA |
| Settling time: | 200 ms |
| Detection area: | horizontal 360° (Ceiling mounting) |

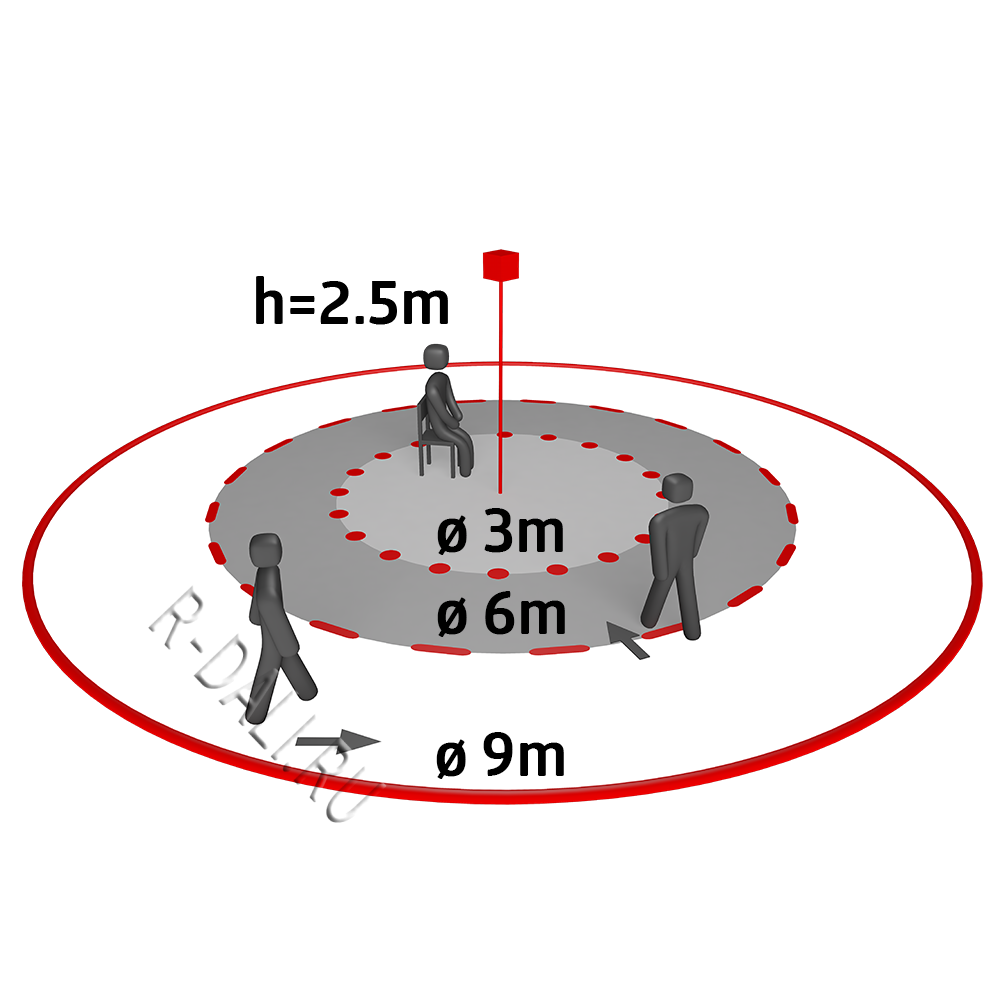

| Range: | max. Ø 9 m across max. Ø 6 m towards max. Ø 3 m seated |
| Monitored area (tangential movement): | 63 m² / 2.5 m mounting height |
| Mounting height min./max./recommended: | 2 m / 5 m / 2.5 m |
| Degree / class of protection: | IP20 / Class II |
| Impact strength: | IK02 |
| Measured light output: | 0 - 4095 Lux, Mixed light measuring |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | polycarbonate, UV-resistant |
| Material color: | white mat, similar to RAL9010 |
