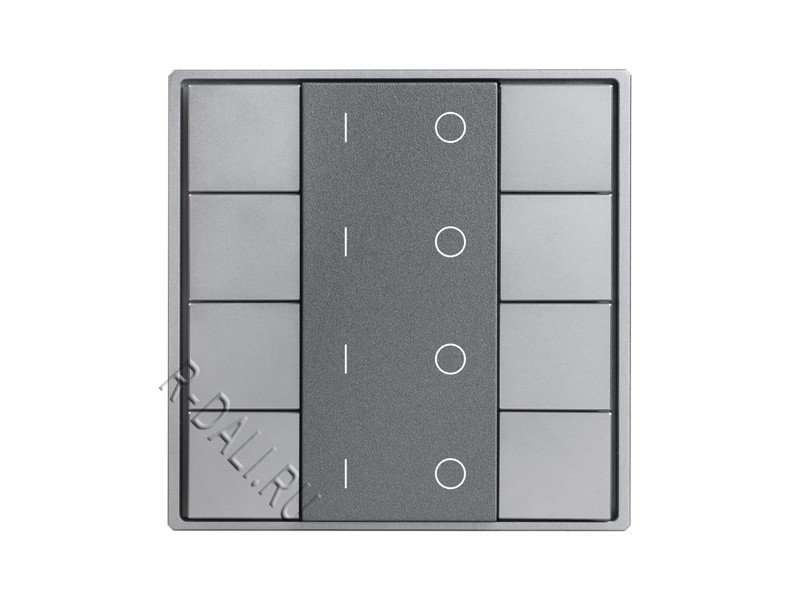

Ultra Slim 4 Group DALI DT6 Group Controller SR-2422NK8-DIM-G4

The SR-2422NK8-DIM-G4 is an ultra slim 4 group DALI DT6 group controller that controls 4 group addresses. The groups of devices on DALI circuit to be controlled can be assigned manually by rotary switch on the back. All DALI devices on the circuit can be controlled by the panel through broadcast. The DALI panel enables to switch on/off and increase/decrease light intensity of the selected groups. It is easy to use and no configuration by computer required. The DALI controller can be compatible with all universal DALI master controllers. Compatible with existing standard size EU size wall box, the DALI push button controller can be wall mounted easily.

Key Features

• DALI DT6 push button controller
• Ultra slim and luxury design
• Material and finishing color can be customized
• With back lighting design, easy to find even in dark night
• DALI bus powered, no extra power supply required
• Each channel DALI bus can install multiple controllers
• 8 Buttons Design with Group Control
• Control 4 Group Addresses
• Control of All DALI Devices on the circuit through Broadcast
• Enables to select and control 4 DALI groups from total 16 DALI groups
• Easy to Use, No Configuration by Computer Required
• Compatible with All Universal DALI Masters
• Easy Installation, Compatible with Existing Standard Size wall box

Specification

Wiring Diagram

Материалы для скачивания

• SR-2422NK8-DIM-G4 User Manual
