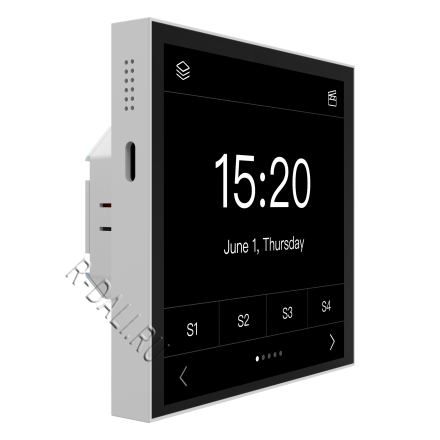

"Sunricher, Контроллер управления, DALI Master Controller with 4"" LCD Monitor SR-2300T-LCD4"

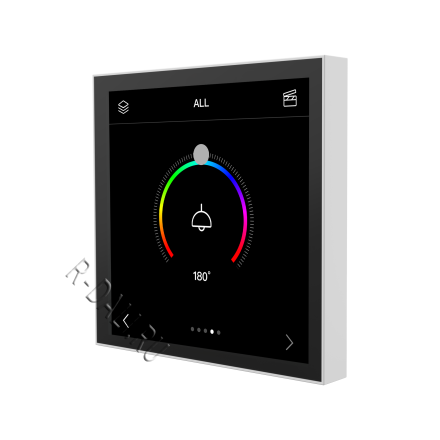

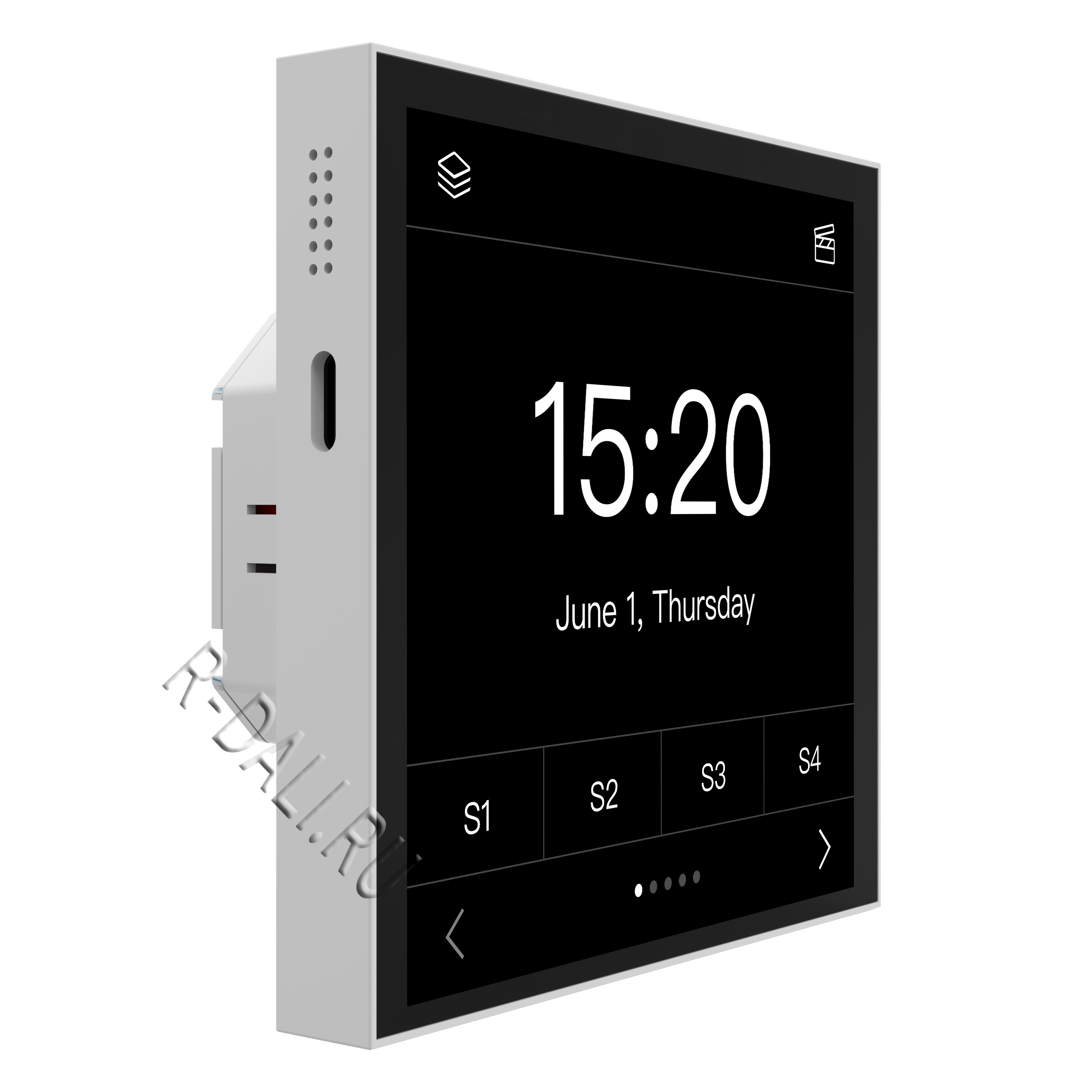

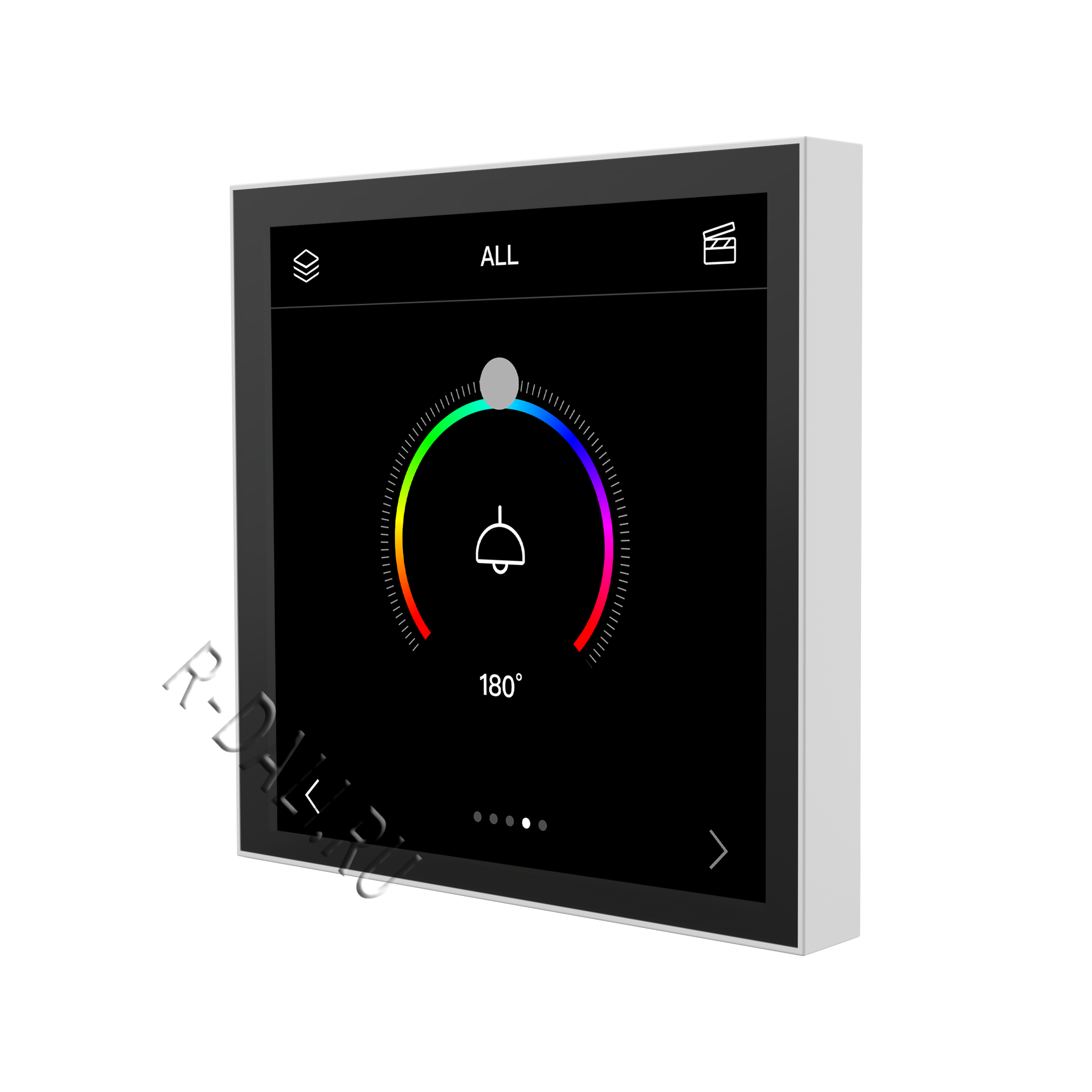

The DALI master features a 4" LCD control panel, serving as the control hub for DALI decoder loads. Its main characteristics include:
• Automatic allocation and management of addresses for up to 64 control gears
• Control of 64 addresses for control gears
• Support for five types of DALI loads and color types (Dim, CCT, XY, RGBWA, SW)
• Each control gear can set up to 16 scenes
• Each control gear can configure up to 16 groups
• Up to 16 timer tasks can be configured, with each timer task able to: a. Invoke scenes for all, groups, or individual control gears; b. Start and stop bionic operation mode tasks for all, groups, or individual CCT-type control gears over a 24-hour cycle
• Up to 4 bionic operation CCT tasks can be configured. Each color temperature curve can set brightness and color temperature across 24 time intervals from 00:00 to 23:00 for gradual control
• Settings and management of parameters such as button sound volume and tone, RTC, etc
• Accompanied by PC configuration tool software for parameter setting, reading, and management of the DALI master and control gears

Specification

Product Dimension

Wiring Diagram

Материалы для скачивания

• SR-2300T-LCD4 User Manual
