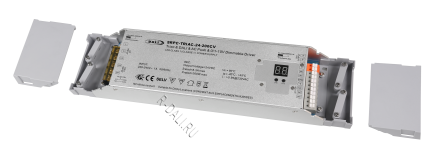

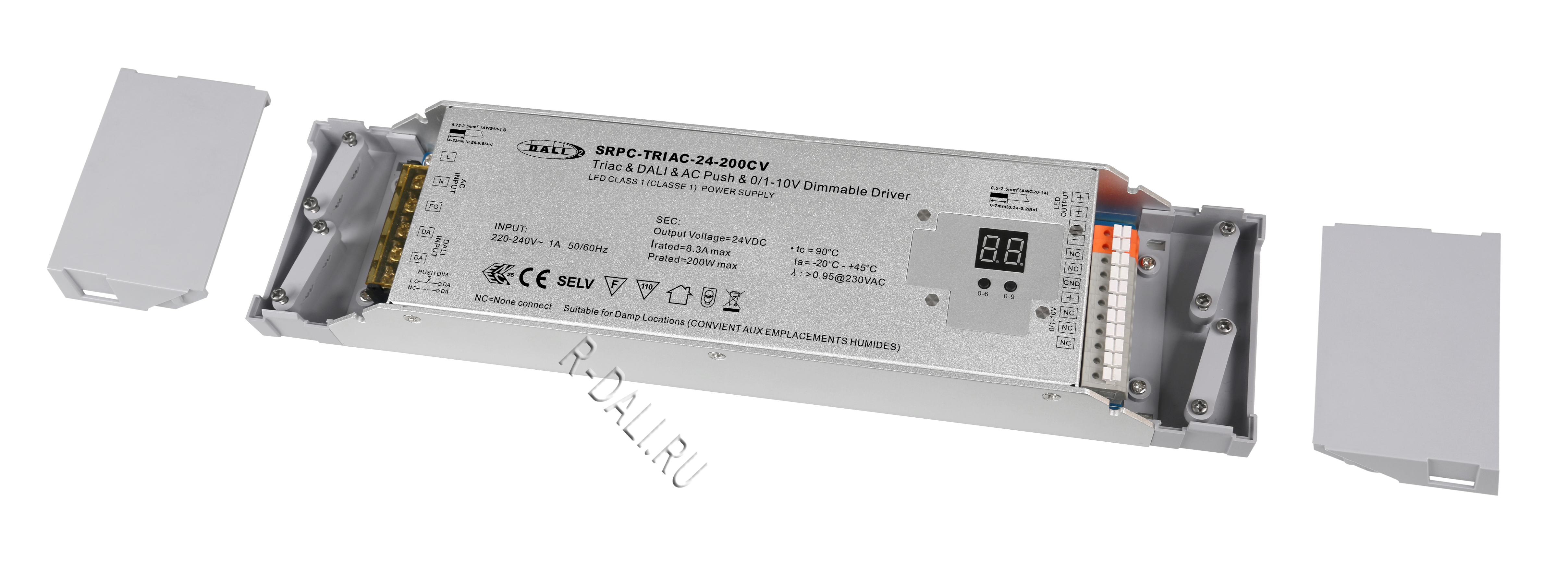

200W 24VDC DALI DT6 Triac Constant Voltage Dimmable Driver With 4 Dimming Interfaces In 1 SRPC-TRIAC-24-200CV

SRPC-TRIAC-24-200CV is an ENEC approved 200W triac dimmable LED driver with 1 channel 24VDC constant voltage output.. It is designed with 220-240VAC input. The triac dimming driver is designed with DALI, Push, Triac, 0/1-10V 4 dimming interfaces in 1, which enables it to work with different control systems. The LED driver adopts amplitude dimming output instead of PWM output to ensure real flicker free. It enables smooth and deep dimming to 1% without flickering and buzzing noise. 1 DALI address can be automatically assigned by DALI masters. Complying with IEC 62386-101, IEC 62386-102, IEC 62386-207, this DALI driver is compatible with most DALI systems in the market. The Triac dimming driver can be compatible with universal Triac dimmers. While selecting 0/1-10V interface, it is compatible with universal 0/1-10V dimmers.

Key Features

• Dimmable LED driver with rectangle metal case
• With DALI/Push+Triac+0/1-10V dimming interfaces
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DALI DT6 device
• 1 channel 24VDC constant voltage output
• Class 1 power supply, full isolated metal case
• Built-in two-stage active PFC function
• PF > 0.95, Efficiency > 93%
• Compatible with universal Triac dimmers
• Compatible with universal 0/1-10V dimmers
• PWM digital dimming output
• Compliant with Safety Extra Low Voltage standard
• Over load, over temperature protection
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty

Specifications

Product Dimension

Wiring Diagram

Материалы для скачивания

• SRPC-TRIAC-24-200CV User Manual
