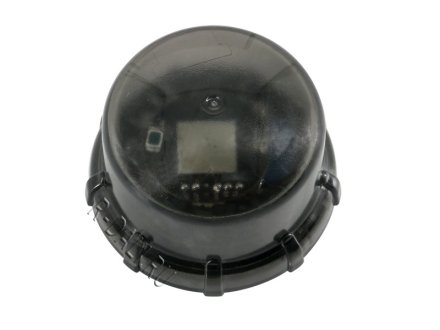

IP65 DALI-2 Multi-Sensor with ZHAGA Interface Socket SR-DA9033A-MW

Ссылка успешно скопирована!

Артикул: SR-DA9033A-MW

Наличие: под заказ

ЦЕНА ПО ЗАПРОСУ

The IP65 multi-sensor is DALI-2 and D4i certified device which combines motion sensor and light sensor. The device performs motion detection and measures illuminance level. The D4i certified multi-sensor can be easily integrated into D4i LED drivers or luminaires seamlessly, and with standard zhaga interface socket,

the sensor can easily fit into various luminaires with no tools required. The sensor-equipped luminaires just need to be connected to mains power. The result

is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is IP65 rating, which enables it

to be used for outdoor luminaires.The multi-sensor is D4i certified and can be powered by an AUX 24V power supply in the D4i driver or D4i luminaires, it

can also be powered by an external power supply when using with non-D4i DALI drivers.

Key Features

• DALI-2 & D4i certified

• Microwave motion detection

• Motion sensor instance type 3 (303)

• Illuminance measurement

• Light sensor instance type 4 (304)

• Autonomous sensor-based control

• Seamlessly working with D4i drivers

• Zhaga book 18 socket

• IP65 rating, can be used for outdoor luminaires

Specifications

Part No.	Power Supply	Typical DALI Current Draw	Sensor Type	Detection Range
SR-DA9033A-MW	12/24 VDC (D4i Certified)	2mA	Microwave sensor	φ5m@2.5m

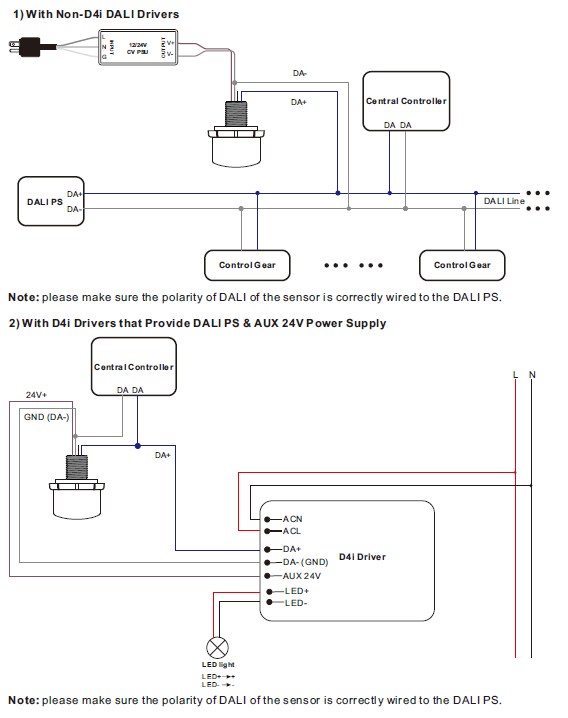

Wiring Diagram

Wiring Diagram

Материалы для скачивания

SR-DA9033A-MW User Manual.pdf
