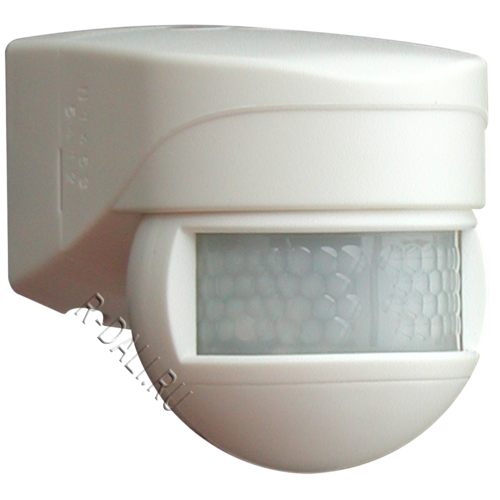

LC-Mini 120-BMS DALI-2
Копировать ссылку на товар
Ссылка успешно скопирована!
Артикул: 93541
Наличие: под заказ
ЦЕНА ПО ЗАПРОСУ
Description
DALI-2 multisensor (input device) with a detection area of 120°
DALI-2 certified product

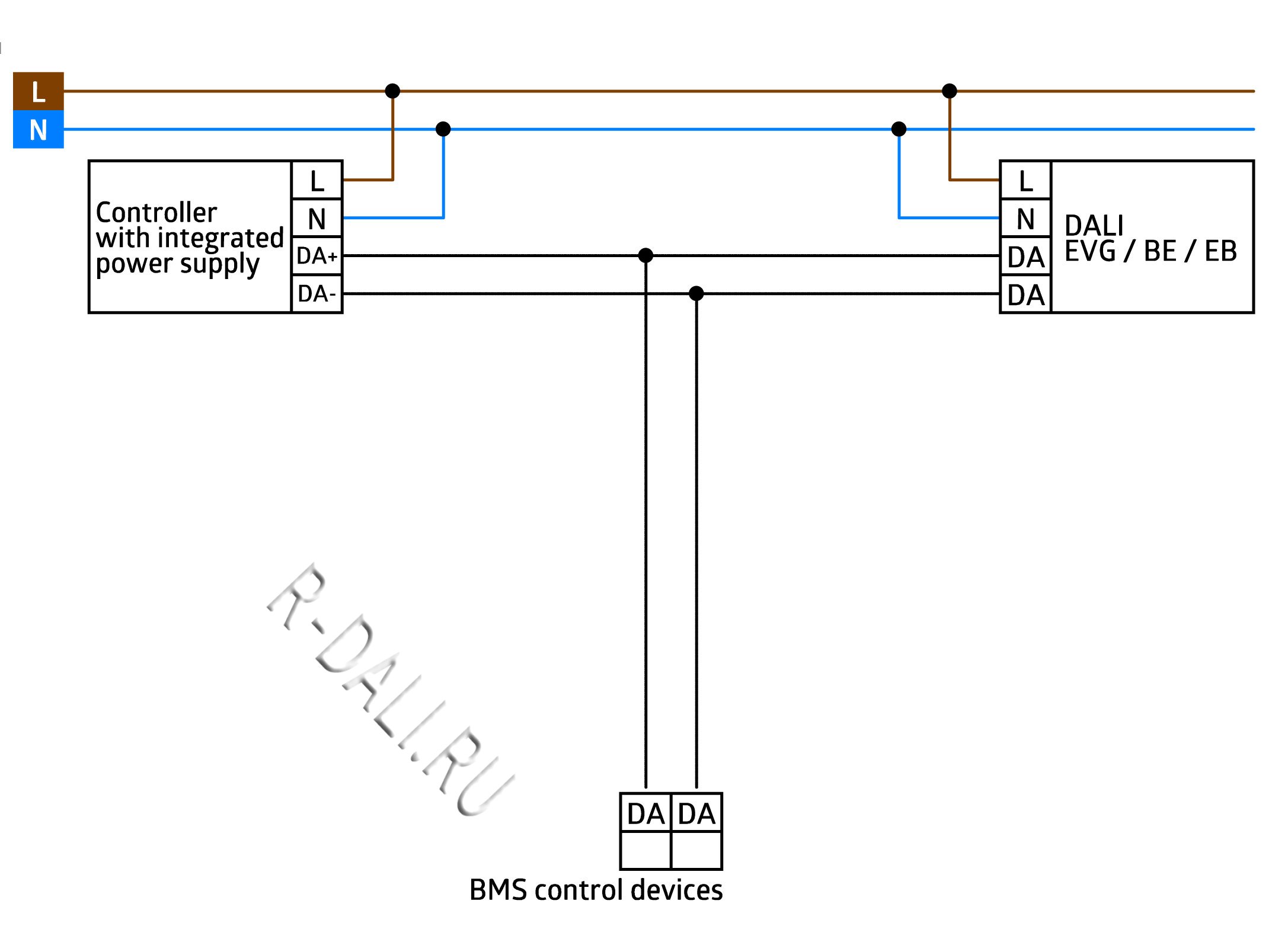

Powered via DALI bus
Adjustable ball head
Detection area can be restricted with blinds
DALI multimaster technology according to IEC 62386 part 103
Instance 0 provides information regarding occupancy and movement for the DALI-Bus according to IEC 62386 part 303
Instance 1 provides LUX values for the DALI-Bus according to IEC 62386 part 304
Parameterisation is possible via mandatory Multimaster-Application-Controller of any manufacturer. This controller must support IEC 62386 parts 101/103/303/304.
Individual adaption of the PIR sensor sensitivity
Status LEDs can be activated / deactivated
Features
| Designation | Value |
|---|---|
| Voltage: | via DALI Bus, max. 22.5 V DC |

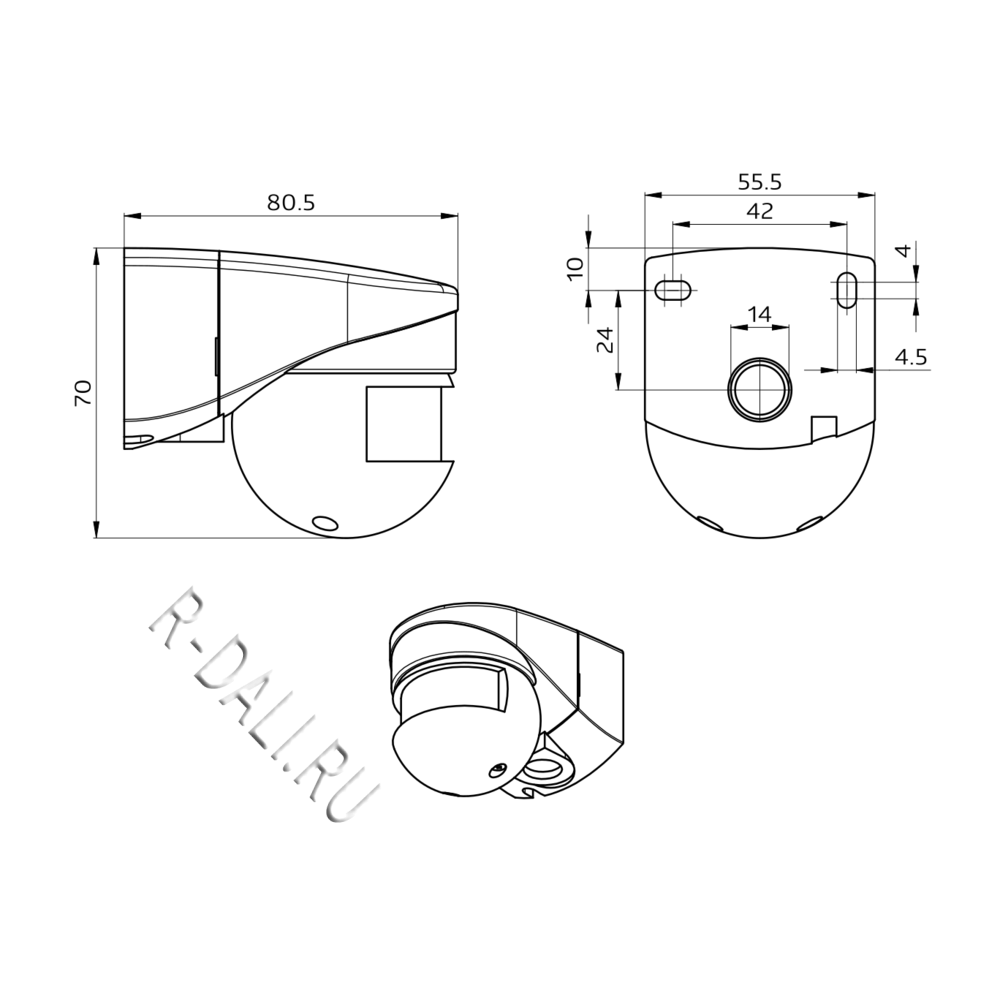

| Dimensions: | 80 x 70 x 55 mm |
| Settings: | via DALI-Bus and application which supports DALI multisensors according to IEC62386, parts 101, 103, 303 and 304 |
| Typ. power input: | 7 mA |
| Settling time: | 200 ms |
| Power consumption: | approx. 0.5 W |

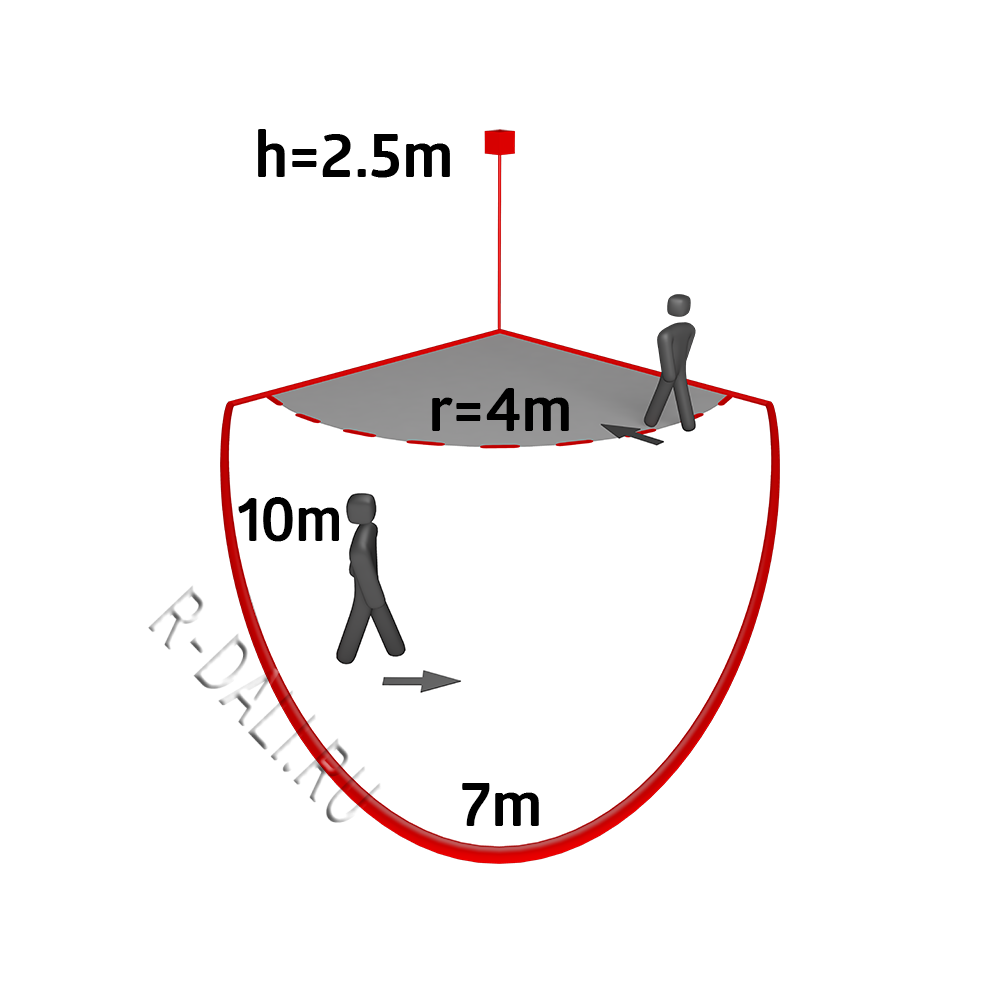

| Detection area: | horizontal 120° (Wall mounting) |
| Range: | max. 10 m across max. 4 m towards |
| Monitored area (tangential movement): | 100 m² / 2.5 m mounting height |
| Mounting height min./max./recommended: | 2 m / 3 m / 2.5 m |
| Degree / class of protection: | IP44 / Class II |
| Measured light output: | 0 - 4095 Lux, Mixed light measuring |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | polycarbonate, UV-resistant |
| Material color: | white mat, similar to RAL9010 |
Tender document 93541
CE declaration of conformity 93541 (en)
