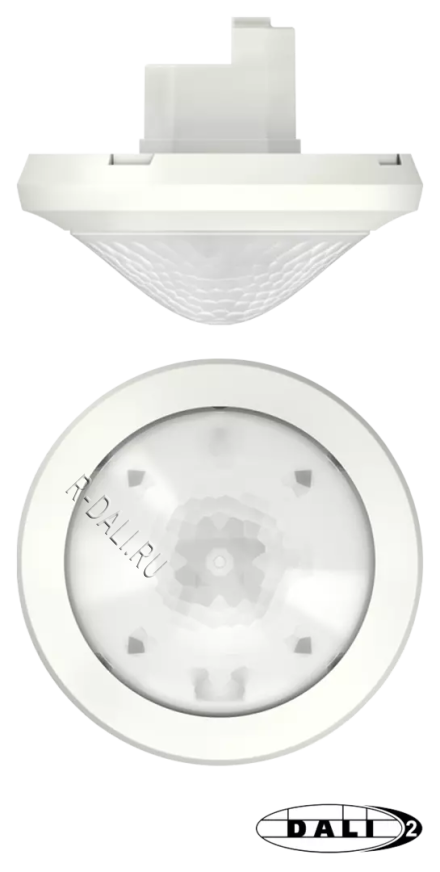

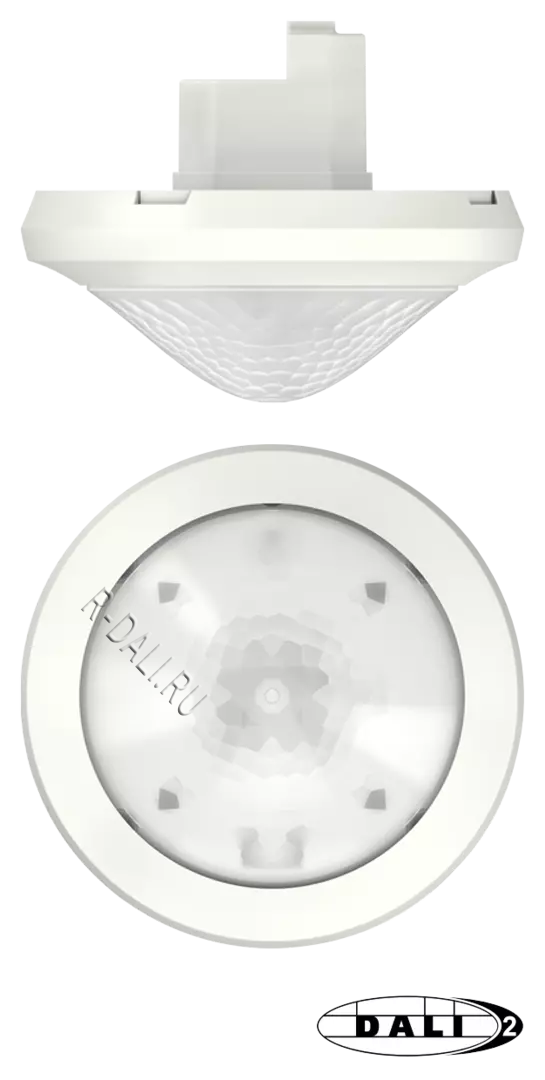

theRonda P360 DALI-2 HCL UP WH

Function description

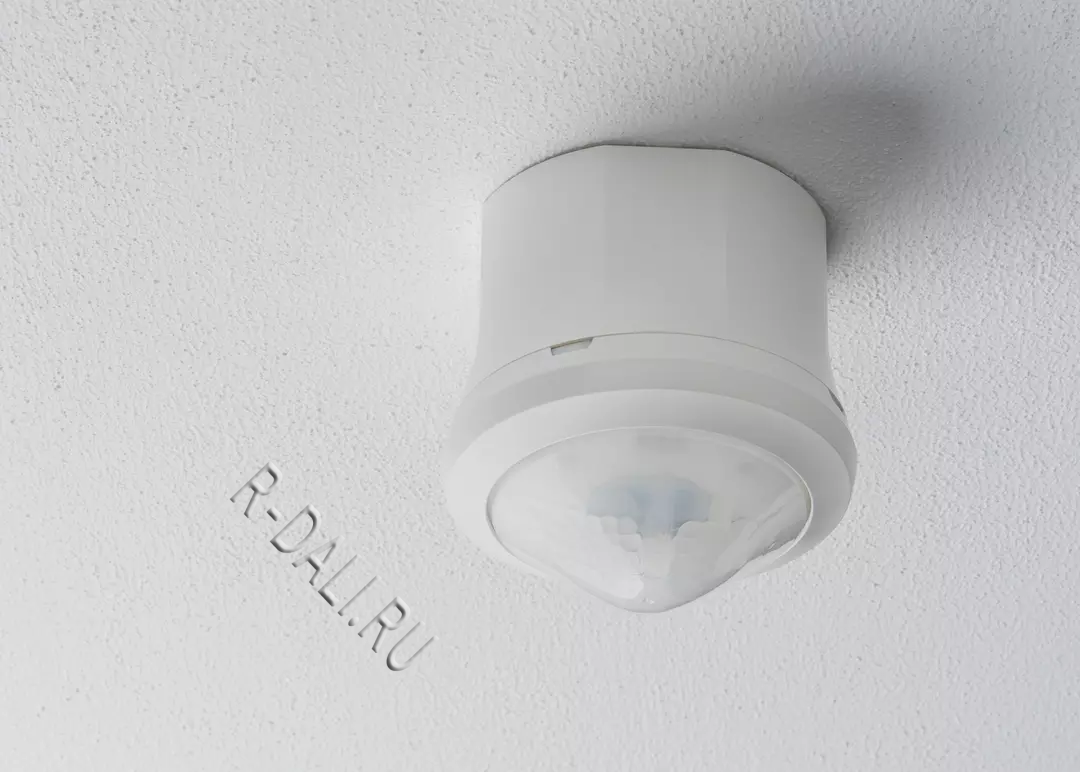

• Passive infrared presence detector for ceiling mounting, DALI-2 certified
• Circular detection zone 360°, Ø 24 m, (452 m2) at 3 m mounting height
• DALI-2 addressable up to 4 channels of light
• Evaluates information from DALI push-button interfaces and controls actuators such as DALI ECGs or DALI relays according to DALI-2 standard
• Colour temperature control based on time of day HCL (Human Centric Lighting)
• Operation with RGBW light sources
• Time-controlled actions via integrated timer
• Flexible assignment of up to 4 lighting groups, additionally up to 4 switching groups and 2 presence groups via app
• Constant light control or dimmable lighting in switching mode with and without daylight influence, orientation light
• Switching mode and constant light control without presence influence
• 3 mixed light measurements
• Scenes can be created with any DALI ECGs and called up via push-buttons or remote control
• Simple integration of up to 4 DALI push-button interfaces (16 push-buttons) via app
• Simple, intuitive commissioning and operation thanks to app, bidirectional communication via BLE and thus simple reading of all parameters
• Connection protection to protect against third-party tampering
• Dimming speed manual dimming adjustable in 2 steps
• Self-learning switch-off delay time
• Shortening of the overrun time in case of short presence (short-time presence)
• Teach-in function
• Detection sensitivity adjustable
• Extremely simple setting of energy-saving behaviour (eco / eco plus)
• Selectable control speed
• Manual override via app, remote control or push-button
• Fully or semi-automatic
• Test mode for checking function and detection range
• Simple extension of the detection range through automatic integration of DALI-2 presence sensors
• App „DALI-2 RS Plug“ (for iOS / Android / Windows)
• Remote control „theSenda B“ (optional)
• Area restriction with cover clips (optional)
• - - - - - - -
• Functional description DALI-2 Room Solution
• The DALI-2 Room Solution is a DALI-2 single room solution that handles all aspects of lighting control
• Compared to DALI presence detectors, the DALI-2 Room Solution offers new functionalities such as HCL function, TW/RGB functionality, time-controlled functions and others
• For the single room solution, all key components (presence detector, switching actuator, push-button interface) and the app for commissioning are available from a single source
• 3 mixed light measurements
• Scenes can be created with any DALI ECGs and called up via push-buttons or remote control
• Simple integration of up to 4 DALI push-button interfaces (16 push-buttons) via app
• Simple, intuitive commissioning and operation thanks to app, bidirectional communication via BLE and thus simple reading of all parameters
• Connection protection to protect against third-party tampering
• Dimming speed manual dimming adjustable in 2 steps
• Self-learning switch-off delay time
• Shortening of the overrun time in case of short presence (short-time presence)
• Teach-in function
• Detection sensitivity adjustable
• Extremely simple setting of energy-saving behaviour (eco / eco plus)
• Selectable control speed
• Manual override via app, remote control or push-button
• Fully or semi-automatic
• Test mode for checking function and detection range
• Simple extension of the detection range through automatic integration of DALI-2 presence sensors
• App „DALI-2 RS Plug“ (for iOS / Android / Windows)
• Remote control „theSenda B“ (optional)
• Area restriction with cover clips (optional)
• - - - - - - -
• Functional description DALI-2 Room Solution
• The DALI-2 Room Solution is a DALI-2 single room solution that handles all aspects of lighting control
• Compared to DALI presence detectors, the DALI-2 Room Solution offers new functionalities such as HCL function, TW/RGB functionality, time-controlled functions and others
• For the single room solution, all key components (presence detector, switching actuator, push-button interface) and the app for commissioning are available from a single source

Technical data

Detection area
