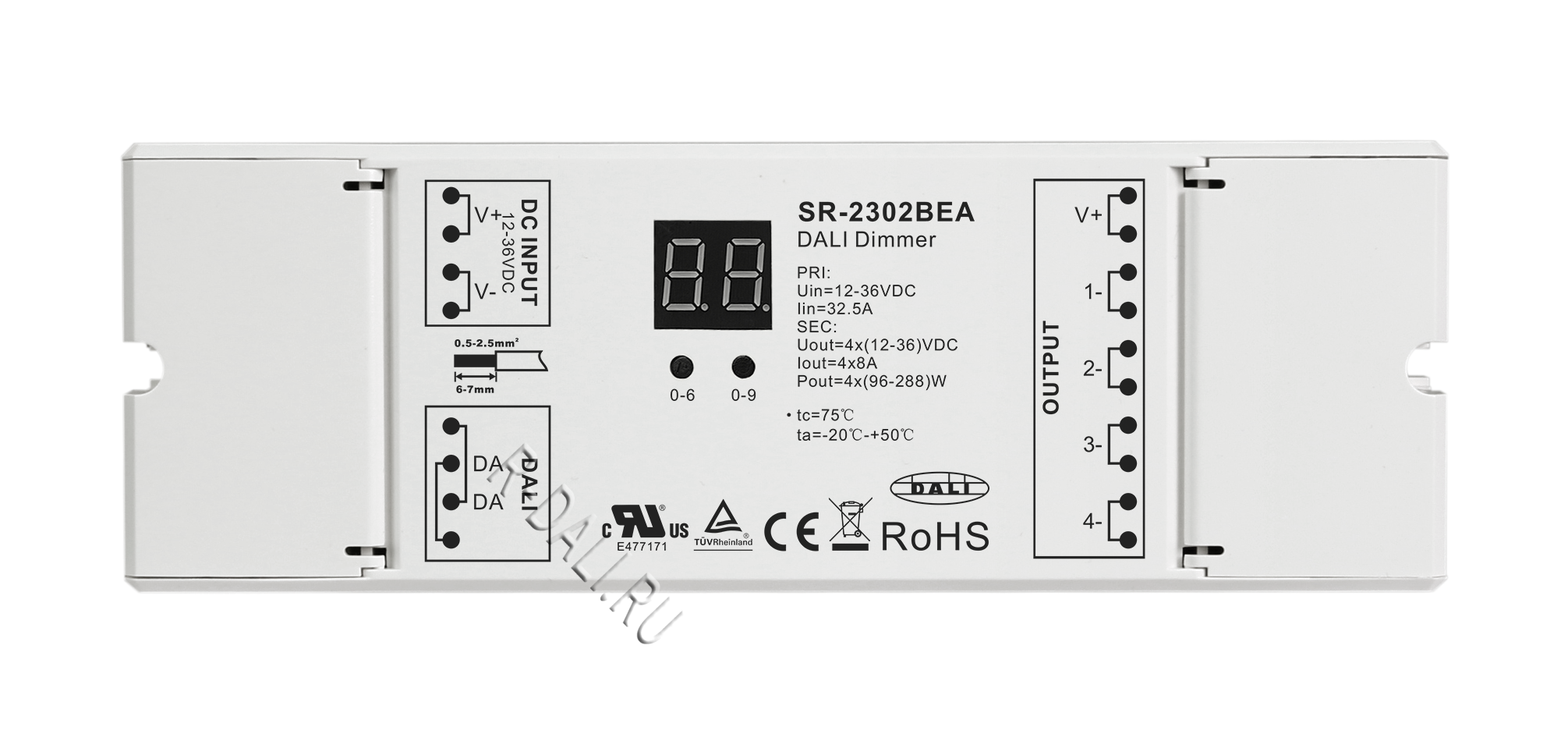

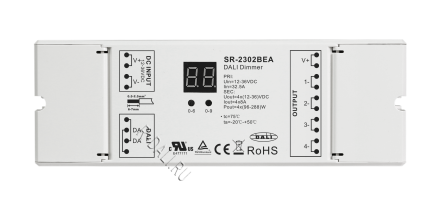

Constant Voltage DALI Dimmer SR-2302BEA

The DALI Dimmer SR-2302BEA is a constant voltage dimming controller with 4 channel, 8A per channel output, which complies to standard DALI protocol with 1 DALI address to control 4 channels synchronously. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 1 DALI address is available for 4 channels to work synchronously. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision.

Key Features

• DALI certified
• TUV CE certified
• Constant voltage DALI dimmer available in 12VDC, 24VDC, 36VDC output, 4 channel, 8A per channel output
• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
• DALI address can be manually assigned and shown in numeric digital display or automatically assigned by master controller.
• 1 DALI address, 4 channels work synchronously.
• 0%-100% dimming range via logarithmic characteristic, perfect for human's vision.
• To work with LED lights to establish DALI lighting system.
• To work with power repeater to expand output unlimitedly.

Specifications

Product Dimension

Wiring Diagram

Материалы для скачивания

• SR-2302BEA User Manual
